Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500Unit/Units per Month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Forward Speed(km/h) :
38
Reverse Speed(km/h) :
23
Condition :
New
Dimension(L*W*H) :
8970*2625*3420mm
Description

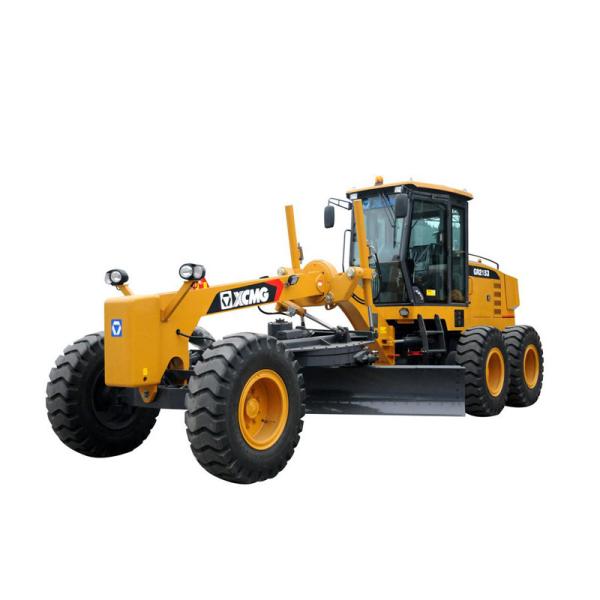

XCMG 220HP GR2153 motor graders equipment china rc tractor road wheel motor grader price for sale
XCMG 220HP GR2153 motor graders equipment.

1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%

2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine

3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.

4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.

Item GR2153
Basic parameters Engine model QSB6.7
Rated power/speed 164kW/2000rpm
Overall dimension (standard) 8970x2625x3420
Total weight (standard) 16500 kg
Tire specification 17.5-25
Ground clearance (front axle) 430mm
Tread 2156mm
Space of front and rear axles 6219 mm
Space of middle and rear wheels 1538 mm
Performance parameters Forward velocity 5,8,11,19,23,38km/h
Reverse speed 5,11,23km/h
Tractive effort f=0.75 85 kN
Maximum gradeability ≥25%
Tire inflation pressure 260kPa
Working system pressure 20MPa
Transmission pressure 1.3—1.8Mpa
Working parameters Maximum steering angle of front wheel ±48°
Maximum slant angle of front wheel ±17°
Maximum oscillating angle of front axle ±15°
Maximum oscillating angle of equilibrium box ±15°
Maximum steering angle of frame ±27°
Minimum turning radius 7.3m
Scrape knife Maximum lift height 400mm
Maximum cutting depth 500mm
Maximum tilt angle 90°
Cutting angle 28°—70°
Angle of revolution 360°
Length & chord height 4270x610mm
Oil filling amount Coolant 50L
Fuel tank 280L
Engine 24L
Transmission 38L
Balancing box 46L
Drive axle 28L
Hydraulic oil 110L

XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor GraderXCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor GraderXCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor GraderXCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader

XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader


XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader

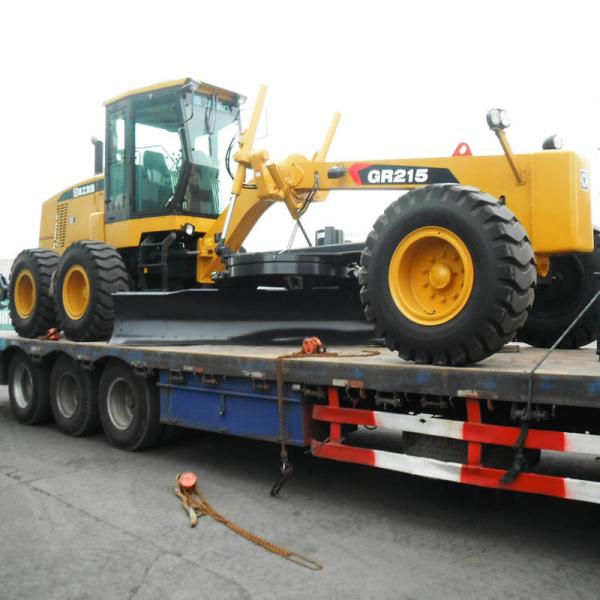

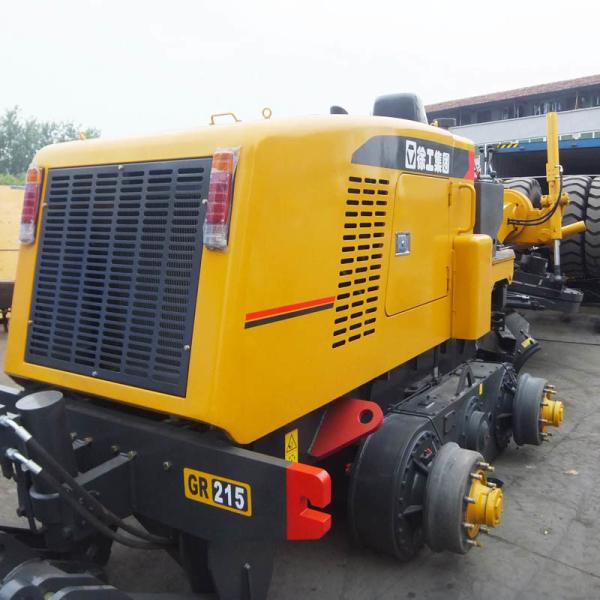

Below picture for you reference

XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader

XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader
