100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
30-35 work days
Packaging Details :
I nude
Engine Brand :
Cumins
Dead weight :
7000kg
Dimension(L*W*H) :
6880x2375x3150mm
Condition :
New
Product name :
Wheel Motor Grader
Description
Cheap price China good quality 100HP Small motor grader XCMG GR100
Product Description


HOT Sale Road Machinery China GR100 Mini Motor Grader for Sale

1. Operating weight---0.7 ton
2. Max. Gradeability---20%
3. Power--125kw(100hp)

•New appearance.
•The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
•Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
•The adopted international matched hydraulic parts ensure the reliable operation.
• The blade movement is hydraulic controlled fully.
•The rear axle is three-way drive axle with NO-SPIN self -locking differential.
•The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
•The luxury and beautiful cab features wide visibility and good sealing.
•The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.

Specification Chart

GR100
Basic specification
Engine model 4BT3.9
Rated power/speed 75/2400kw/rpm
Dimension(LxWxH) 6880×2375×3150mm
Operating weight(Standard) 7000kg
Performance specification
Travelling speed ,forward 5102039km/h
Travelling speed ,reverse 825km/h
Tractive force(f=0.75) 41.6KN
Max. gradeability 20%
Tire inflation pressure 350KPa
Working hydraulic pressure 16MPa
Transmission pressure 1.31.8MPa
Operating specification
Max. steering angle of front wheels ±50°
Max. lean angle of front wheels 17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box
Frame articulation angle ±27°
Min. turning radius using articulation 5.9m
Biade
Maximum lift above ground 300mm
Maximum depth of cutting 350mm
Maximum blade position angle 45°
Blade cutting angle 28°70°
Circle reversing rotation 120°
Moldboard width X height


3048×500mm

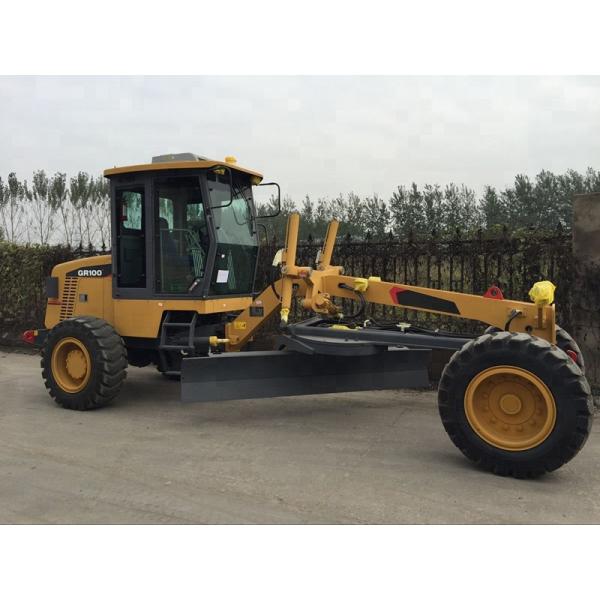

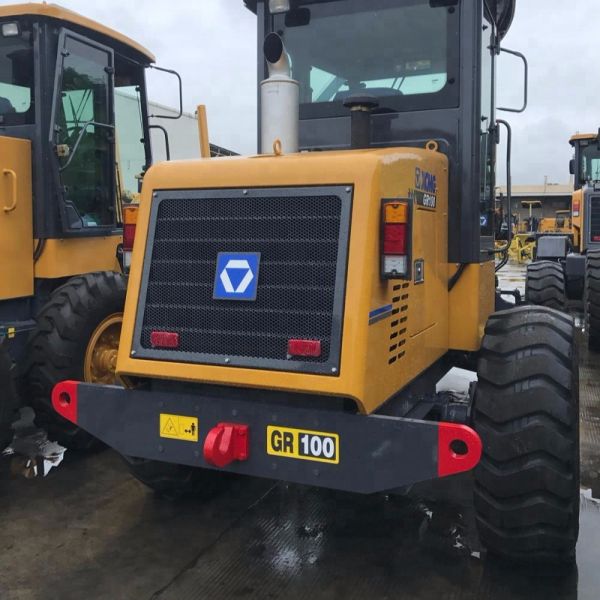

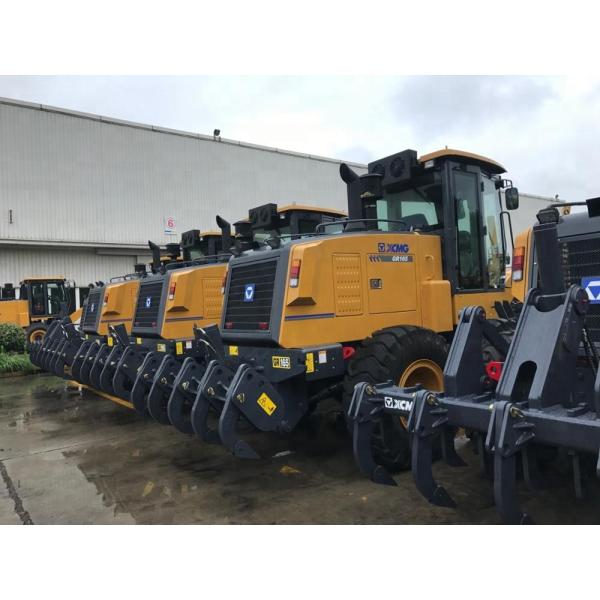

Product photos for you referemce

100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
100HP Small Motor Graders With Articulated Frame High Travelling Speed
