Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 set /per month
Delivery Time :
30-34 work days
Packaging Details :
In nude
Condition :
New
Weight :
11000kg
Working hydraulic pressure :
16Mpa
Engine model :
6BT5.9
Reverse Speed(km/h) :
30
Description

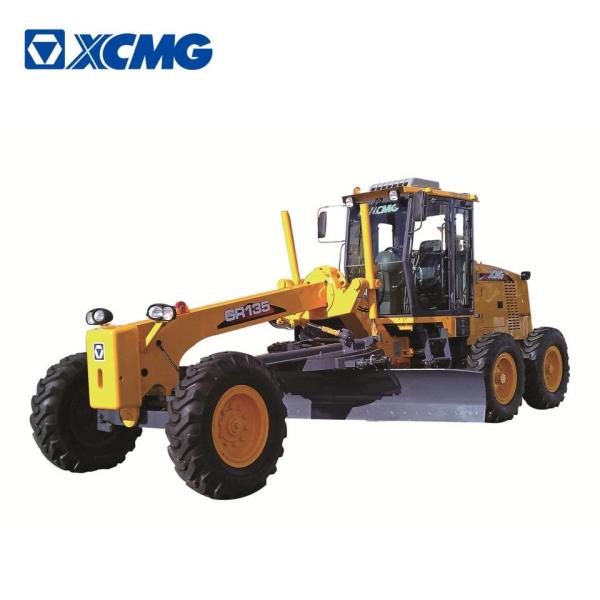

XCMG Mini New Motor Grader GR135, Good Quality Motor Grader With Ripper And Blade

Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade

Main parameter:

Operating weight :11 tons ,

Moldboard : 3660×610mm,

Detailed configuration

* 6BT5.9 engine,

* driving axle ,

* air conditioner driving cabin ,

* Imported differential mechanism .

Advantages

Strong power ,Comfortable driving environment .

Adopt imported hydraulic parts .Great working performance

Basic specification
Engine model 6BT5.9
Rated power/speed 100/2200kw/rpm
Dimension(LxWxH) 8015×2380×3050mm
Operating weight(Standard) 11000kg
Performance specification
Travelling speed ,forward 5,8,13,20,30,42km/h
Travelling speed ,reverse 5,13,30km/h
Tractive force(f=0.75) 61.3KN
Max. gradeability 20%
Tire inflation pressure 300kPa
Working hydraulic pressure 16MPa
Transmission pressure 1.3~1.8MPa
Operating specification
Max. steering angle of front wheels ±49°
Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box 16
Frame articulation angle ±27°
Min. turning radius using articulation 6.6m
Biade
Maximum lift above ground 410mm
Maximum depth of cutting 535mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard width X height 3660×610mm

Picture for you reference

Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade

Strong Power Mini Road Grader / 11 Ton Grader With Ripper And Blade
