Specifications
Brand Name :
XCMG
Model Number :
CIVL
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 sets /per month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Forward Speed(km/h) :
38
Condition :
New
Dimension(L*W*H) :
8900x2625x3420mm
Description

XCMG 200HP GR2003 motor graders china rc tractor road wheel motor grader price for sale

XCMG GR2003 Motor Grader

1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%
2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine
3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.
4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased.

Description Unit Parameter value
Engine model SC9DK200.1G3
Rated power/speed kW/rpm 147/2200
Overall dimension (standard) 8900x2625x3420
Total weight (standard) kg 16000
Tire specification 17.5-25
Ground clearance (front axle) mm 430
Tread mm 2156
Space of front and rear axles mm 6219
Space of middle and rear wheels mm 1538
Forward velocity km/h 5/8/11/19/23/38
Reverse speed km/h 2005/11/23
Tractive effort f=0.75 kN 82
Maximum gradeability % 25
Tire inflation pressure kPa 260
Working system pressure MPa 20
Transmission pressure MPa 1.3—1.8
Maximum steering angle of front wheel ±48°
Maximum slant angle of front wheel ±17°
Maximum oscillating angle of front axle ±15°
Maximum oscillating angle of equilibrium box Front15°,Rear15°
Maximum steering angle of frame ±27°
Minimum turning radius m 7.3
Scrape knife Maximum lift height mm 400
Maximum cutting depth mm 500
Maximum tilt angle 90°
Cutting angle 28°—70°
Angle of revolution 360°
Length & chord height mm 4270x610
Coolant L 50
Fuel tank L 280
Engine L 24
Transmission L 38
Hydraulic oil L 110
Drive axle L 28
Balancing box L 46

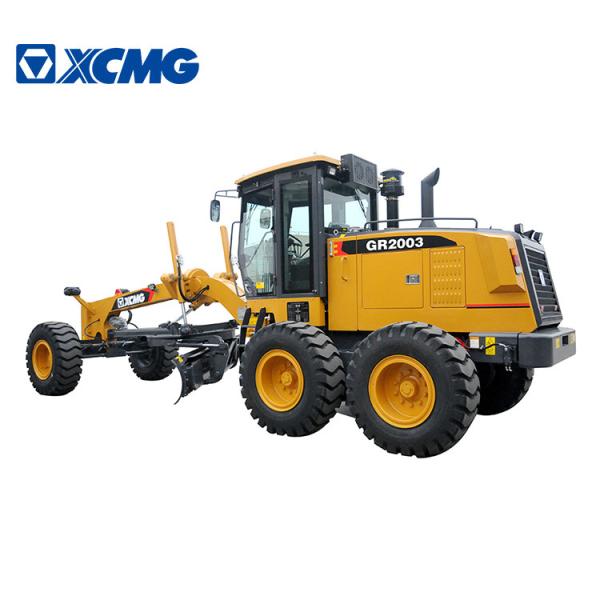

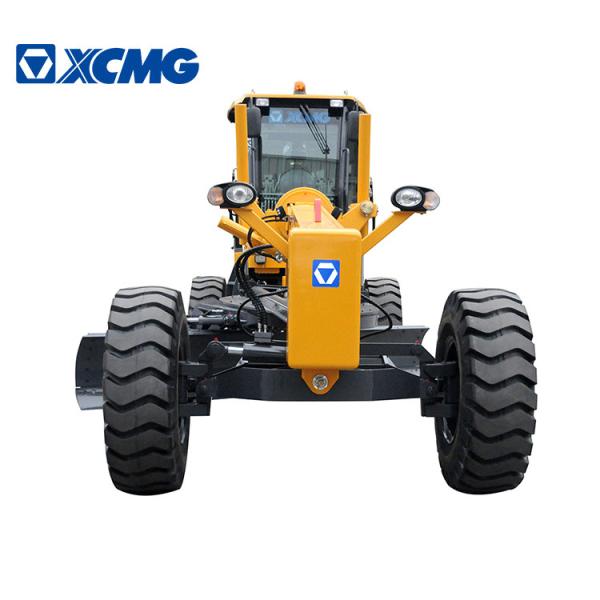

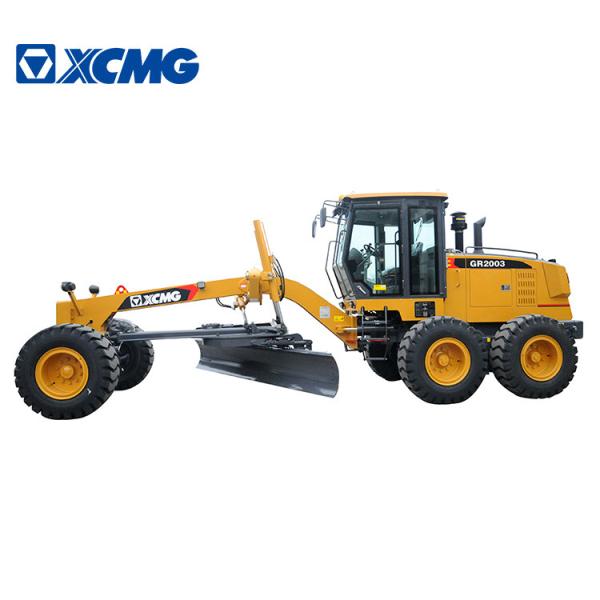

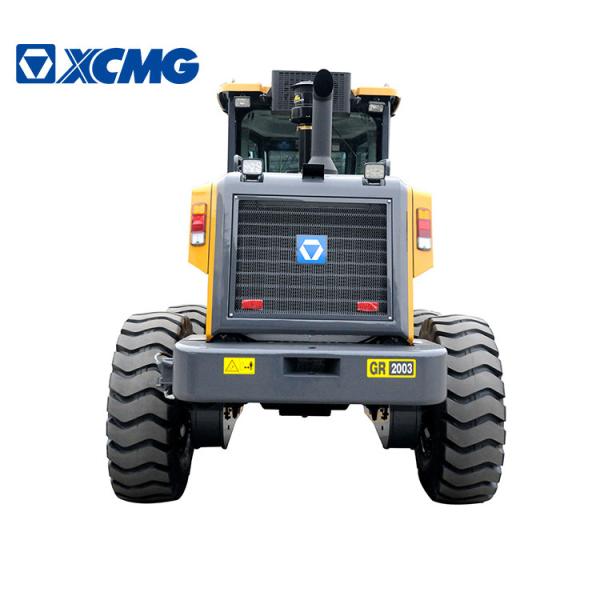

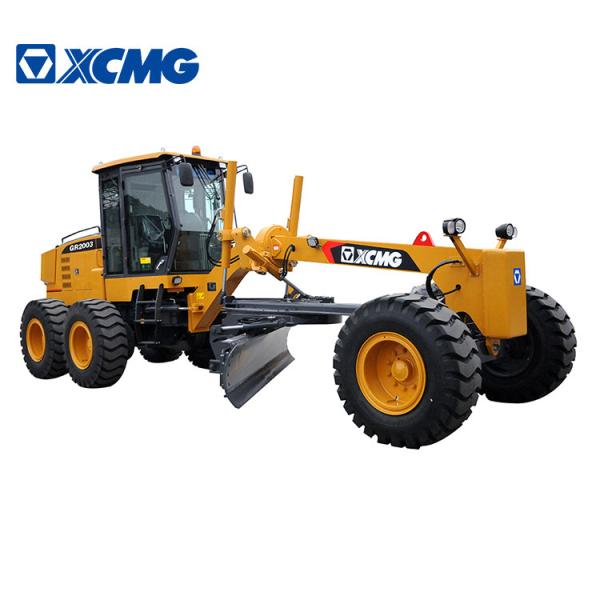

Below picture for you refrence

Rc Tractor Road Wheel Motor Graders With Load Rotation Wear Resistance

Rc Tractor Road Wheel Motor Graders With Load Rotation Wear Resistance
