3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height
3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height
3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height
3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height
3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height
3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height
Specifications
Brand Name :
CIVL
Model Number :
CIVL FORKLIFT 30/35
Certification :
ISO
Place of Origin :
China
MOQ :
2
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100 units/week
Delivery Time :
Within 15 days
Packaging Details :
By container
Power type :
Diesel
Max. lifting height :
3m/3.5m
wheelbase :
1700mm
Max. travel speed(with/without load) :
20Km/h
engine :
42kw
Front track :
1000mm
rear track :
970mm
Weight :
4370/4800kg
Description

3tons/3.5tons Forklift New Forklift Truck Diesel 42kw Engine Forklift With 3m/3.5m Lift Height

Description:

3 ton/3.5 ton forklift
• The lifting system is equipped with a lower buffer device to reduce the impact and vibration of the gantry,
• Large-enclosed seats, small-diameter steering wheel and electro-hydraulic reversing design, car-like dual-handle combination switch, improve driving comfort
• Standard wide-view gantry, the instrument in the cab is moved down to increase the driver's front view
• Operational efficiency ensures cargo loading and unloading in ports, wharves, stations and other sites, and meets the needs of complex environments
• Hot air return isolation device, optimized cooling air duct, aluminum plate-fin water tank, improve heat dissipation capacity and ensure reliable operation of the engine
• The design of key structural parts such as frame, gantry, roof guard, steering axle, etc., improves the safety and reliability of the whole vehicle, the center of gravity of the whole vehicle is moved back, the bearing capacity is improved, and the stability and safety are improved.
• The opening angle of the hood is increased to 80°, which is convenient and quick maintenance.

Specification:

model

 Unit CIVL 30 CIVL35
Kind of power diesel
Rated lifting capacity kg 3000 3500
Load center distance mm 500
Height (with back shelf) mm 4212 4212
Lifting height mm 3000 3000
Door frame full height mm 2070 2180
free rise height mm 165 170
Shelving (counting from the fork surface of the gantry) mm 1222 1222
Distance from seat surface to overhead guard mm 1030 1030
roof guard height mm 2175 2175
Full length (with forks) mm 3803 3866
Full length (without fork) mm 2733 2796
front overhang mm 478 496
rear overhang mm 555 600
wheelbase mm 1700 1700
Tow hitch center height mm 280 280
Ground clearance (lower end of gantry) mm 135 135
Outside width of frame mm 1225 1225
Fork adjustment range outside max/min mm 1060/250 1060/250
Front track mm 1000 1000
rear track mm 970 970
Turning radius (outside) mm 2420 2470
Turning radius (inside) mm 200 200
Right angle channel width mm 2380 2400
Gantry inclination (front/rear) ° 6/12
Fork size (standard) mm 45×1070×125 50×1070×125
Number of wheels (front/rear) 2×/2
Tyre type (front/rear) Pneumatic tire
Tire Size (Front) 28×9-15-14PR
Tire size (rear) 6.50-10-10PR
Battery (voltage/capacity) V/Ah 12/80
service brake hydraulic-pedal
parking brake Mechanical - Manual
fuel tank capacity L 60
Transmission type Electro-hydraulic shift
Number of gears (front/rear) Power Shift 1-1
Travel speed (full load / no load) km/h 20/20 20/20
Lifting speed (full load/no load) mm/s 500/550 420/440
Descent speed (full load / no load) mm/s 450/500 350/400
Traction (full/unloaded) KN 21/15 21/14
Grade (full load / no load) % 23/20 23/20
Weight (with oil and water) kg 4370 4800
Axle load (full load) front/rear kg 6460/910 7470/830
Axle load (no load) front/rear kg 1710/2660 1880/2920
Engine parameters Ero III engine option
model Quanchai 4C3-60C31 Quanchai 4C3-60C31
Rated power/speed Kw/rpm 42/2500
Torque/RPM Nm/rpm 190/1800
Number of cylinders-bore diameter×stroke 4-95×105
engine capacity L 2.98
engine form Vertical - Four Stroke - Water Cooling - High Pressure Common Rail

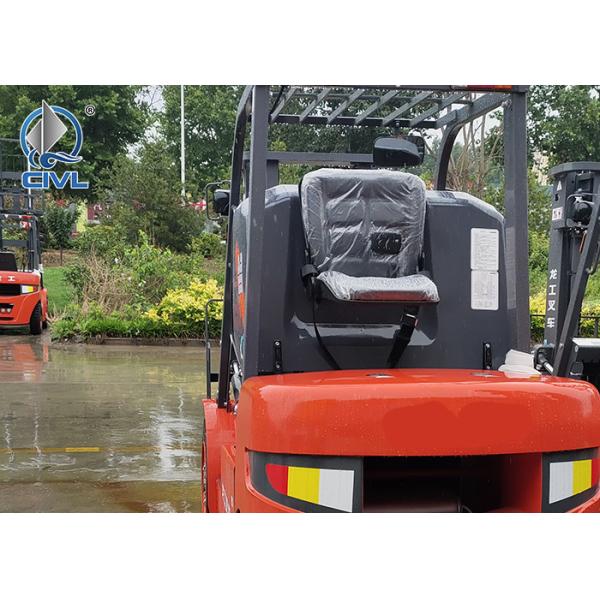

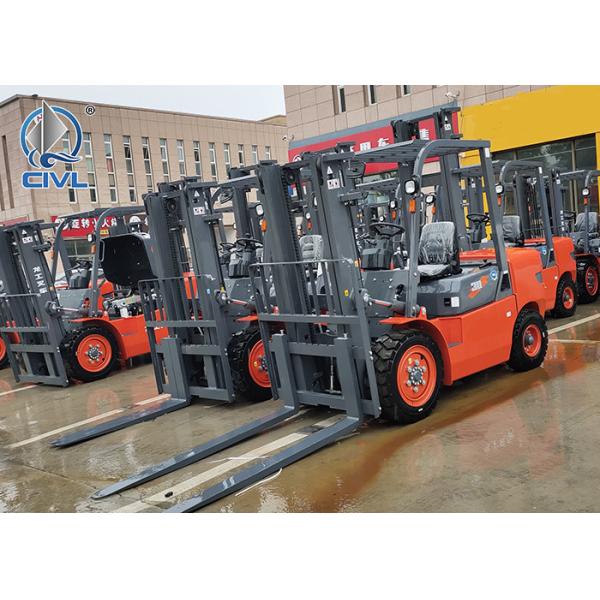

Photos:
3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height3tons 3.5tons 42kw Forklift Truck Diesel Engine Forklift With 3m 3.5m Lift Height
