5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
Specifications
Brand Name :
CIVL
Model Number :
CIVL FORKLIFT 50
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
50 units/ day
Delivery Time :
Within 15 days
Packaging Details :
By container
Power type :
Diesel
Max. lifting height :
3000mm
Max. travel speed(with/without load) :
19/20Km/h
engine :
58.8kw
Self-weight :
6800kg
Rated load :
5000kg
Description

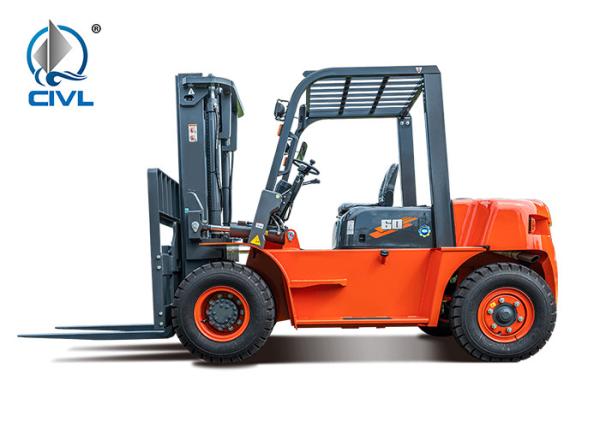

New Rated Load 5 Ton Diesel Forklift / 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck

Description:

Forklifts are widely used in factories and mines, warehouses, stations, ports, airports, freight yards, distribution centers and distribution centers, etc., and can enter ship cabins, carriages and containers to load and unload components, packages, pallets, containers and other assemblies.

It is an indispensable equipment for pallet transportation and container transportation.
The main working attachment of the forklift truck is the fork. After changing other working attachments, it can also be used for loading and unloading of bulk goods, unpackaged goods, long-sized goods, etc., as well as short-distance handling operations.

Features:

5 ton forklift
·Adopt electronically controlled supercharging technology, and hydraulically adopt electronically controlled supercharging intercooling technology.
·Idle state can meet the needs of forklift operation.
·Hydraulic system adopts load sensing technology (steering priority), small diameter steering wheel, reduces oil temperature by 10%, and saves fuel by 5%.
·Step pointer instrument has water temperature gauge, oil gauge, chronograph and others.
·The opening angle of the hood is increased to 80°, which is more convenient for maintenance.
The hood lock is light and flexible to open, and the gas spring self-locking function ensures the safety of maintenance.

Specification:

model Unit CIVL50
Dynamic form Diesel
Rated load kg 5000
J Load center distance mm 500
H1 maximum lift height mm 3000
H3 free lift height mm 150
Gantry inclination deg Before 6 after 12
Maximum travel speed (full load / no load) Km/h 19/20
Maximum lifting speed (no load/full load) mm/s 460/420
Maximum grade (no load/full load) % 21/20
dead weight kg 6800
model Yunnei YN4EZ080-33CR
rated power kW/r 58.8/2200
Rated torque N·m/r 270/1500-1800
Number of cylinders 4

Photos:
5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck5 Ton 58.8kw Engine Forklift Truck Loading And Unloading Stacking Truck
