Specifications
Brand Name :
SHMC
Model Number :
HSXW
Certification :
CE ISO EPA
Place of Origin :
China
MOQ :
1
apply :
2.6-6m Boat
Max.speed :
20Km/h
Stroke :
2 stroke
displacement :
1-2L
fuel :
gasoline
type :
outboard
Description

Four advantages cast the classic
It uses the Huasheng two-stroke power, water cooling technology ,raised overall dependability
Compact designing, light weight, convenient carrying,unique appearance,big tank capacity
With forward gear, reverse gear, and neutral gear, clutch output, can be rotated 360 flexibly.
The use of more economical and convenient, easy to start,maintenance friendly

First, forward gear, reverse gear, neutral gear design, clutch output, body 360 degrees of freedom of choice.
Second, the height of the paddle to achieve 0.6m-1m free adjustment.
Third, easy to start, regardless of winter, summer, a success.
Fourth, compact design, light weight, easy to carry.
Fifth, according to the national gasoline engine 3 guarantees warranty, completely solve the worries of the majority of users.
Sixth, fuel-efficient: four stroke Outboards by most fuel efficient technologies, advanced hemispherical combustion chamber, make gasoline burn completely, the every drop of gasoline into power, unlike the two-stroke engine is part without burning gasoline and oil discharge into the water lead to waste and pollution, fuel saving up to 50%.
Seventh, anti-corrosion: can choose anti-corrosion materials, all stainless steel screws, aluminum alloy body, the service life is longer, plastic parts are engineering plastic, can be long-term aging, not deformation.
Eighth, can choose two blade propeller, avoid the wound, easy to clean.
Ninth, the horsepower is strong: four stroke outboard engine torque, so it has a big horsepower came early, abundant horsepower a two-stroke engine in the same horsepower on the label, in low speed feel even more obvious.
Tenth, easy to use: excellent starting performance, 1/2 pull the rope can be started, more than the market existing any product start performance. Design and perfect with a variety of different models, such as: the length of the body, before (after) control, to meet the different types of ship and the operation required.
The eleventh, environmental protection: clean pure gasoline fuel made China Sheng Taishan four stroke outboard engine emissions targets have been able to comply with CE in Europe and the United States the second phase of the EPA certification, made a contribution to promote the green movement. In addition, not like a two stroke engine continues to not by burning oil discharged into the water, under the cumulative, raising aquatic products, such as fish, shrimp, crab and other stained with the smell of oil directly to farmers of aquatic products form pollution.
The twelfth, durable: comparable to the lubricating system for four stroke Outboards and advanced auto lubrication system, the pressure oil circulation, the bearings and the need to lubricate the parts obtained directly from the oil, the largest accelerator in continuous operation for more than 20 hours, power does not decay, and fuel consumption does not increase the machine no abnormal, foreign brands million yuan of above is still unable to achieve this limit.
The thirteenth and smooth operation of tranquility: the precision of the supporting bush and direct circulating oil lubrication system, excellent silencer design, noise smaller using more comfortable.

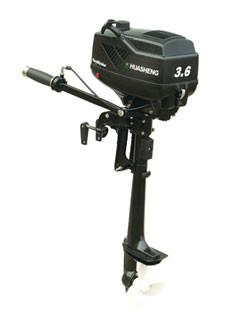

Name HSXW3.6
Engine Model 1E44F-XW
Engine Type Mixing cooling 2-stroke Single Cylinder
Max Power Output 1.4/6500
Displacement(cc) 51.7
Gear Transmission Ration 2.08(27/13)
Fuel Tank(L) 1.7
Recommended Gear Oil SAE#90
Net Weight(Kg) 9.8
Propeller Size 7 1/4"*5
Package Dimension(mm) 415*310*990
Gear Oil Capacity(cc) 45

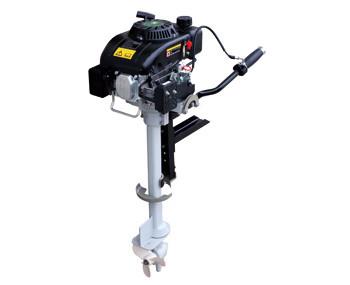

model HSXW4.0
Rated power(kw/r/min) 1.8/1760
Maximum power(r/min) 3600~4000
External Dimension(mm) 400×420×1115
Weight(kg) 26
Suspension height(mm) 415~590
Application of stern plate vertical height(mm) 283~483
Operating mode Steering handle
Transmission mode Clutch and gear
Gear Transmission Ration 2.15(28/13)
Cooling mode Forced air cooling
Exhaust silencing mode Muffler machine straight row
Warped way Manual
Propeller Size 3-7 1/2"×7"
Recommended Fuel 90#Normal No-lead gasoline
Fuel Tank 1.4L
Recommended EN Oil SAE 15W-40
Maximum fuel consumption per hour(kg/h) 0.84
Engine lubricating oil 0.6L
Recommended Gear Oil Hypoid gear oilSAE#90
Gear Oil Capacity 0.07L
Grease General purpose lithium base grease(GB7324-1994)

model HSXW5.0
Rated power(kW/r/min) 1.9/1760
Max power/speed(r/min) 3600~4000
External Dimension(mm) 420×400×1115
weight(kg) 26
Suspension height(mm) 415~590
Application of stern plate vertical height(mm) 283~483
Operating mode Steering handle
Power Transmission Type Clutch and gear
Gear Transmission Ration 2.15(28/13)
Cooling mode Forced air cooling
Exhaust silencing mode Muffler machine straight row
Warped way Manual
Propeller Size 3-7 1/2"×7"
Recommended Fuel 90#Normal No-lead gasoline
Fuel Tank 1.4L
Recommended EN Oil SAE 15W-40
Maximum fuel consumption per hour(kg/h) 0.84
Engine lubricating oil 0.6L
Recommended Gear Oil Hypoid gear oilSAE#90
Gear Oil Capacity 0.07L
Grease General purpose lithium base grease(GB7324-1994)

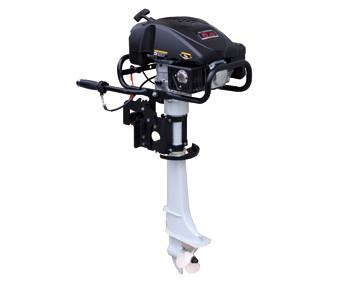

Model HSXW6.0
Rated power(kW/r/min) 2.5/2500
Maximum power(r/min) 3600~4000
Package Dimension(mm) 517×385×1180
weight(kg) 28
Suspension height(mm) 608.5
Application of stern plate vertical height(mm) 479~504
Operating mode Steering handle
Power Transmission Type Gear
Gear Transmission Ration 1.5(24/16)
Cooling mode Forced air cooling
Exhaust silencing mode Muffler machine straight row
Warped way Manual
Propeller Size 3-7 1/4"×5"
Recommended Fuel 90#Normal No-lead gasoline
Fuel Tank 1.54L
Recommended EN Oil SAE 15W-40
Maximum fuel consumption per hour(kg/h) 1.2
Engine lubricating oil 0.6L
Hypoid gear oil SAE#90
Gear oil 0.1L
Grease General purpose lithium base grease(GB7324-1994)
