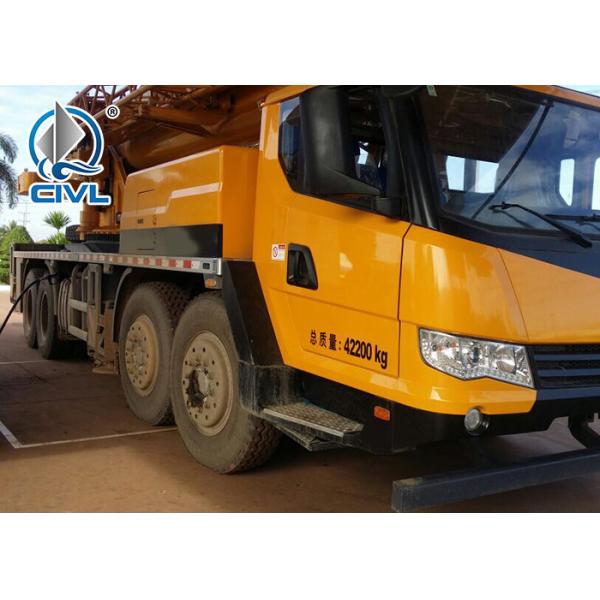

Construction Hoisting Machinery 16 Tons Telescopic Boom Crane
Construction Hoisting Machinery 16 Tons Telescopic Boom Crane
Construction Hoisting Machinery 16 Tons Telescopic Boom Crane
Construction Hoisting Machinery 16 Tons Telescopic Boom Crane
Specifications
Brand Name :
CIVL
Model Number :
CVQY16C
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000units/month
Delivery Time :
Within 35-45 days
Packaging Details :
nude
Price :
negotiation
Condition :
New
Product name :
Truck Crane
Max. lifting load :
16 ton
Overall length :
11990mm
Overall width :
2500mm
Overall height :
3350mm
Description

Hoisting Machinery Truck Crane Max. lifting capacity 16 tons CVQY16C

The truck crane is a kind of crane mounted on the chassis of an ordinary car or a special car. The driving cab and the lifting control room are set separately. The advantages of this crane are good maneuverability and rapid transfer. The disadvantage is that it requires outriggers when working, can not drive under load, and is not suitable for working on soft or muddy ground. The chassis performance of the truck crane is equivalent to that of a truck with the same total vehicle weight, and it meets the technical requirements of road vehicles, so it can pass on all kinds of roads without any obstruction. This type of crane is generally equipped with two control rooms for up and down, and outriggers must be extended to maintain stability during operation. The lifting weight ranges from 8 tons to 1600 tons, and the number of axles on the chassis can range from 2 to 10. It is the crane type with the largest output and the most widely used.

SPECIFICATION:

Classificatory Item Unit Parameter
Engine Model D6114
Outline dimension Overall length mm 11990
Overall width mm 2500
Overall height mm 3350
Wheel base Axle 1, Axle 2 mm 4025
Axle 2, Axle 3 mm 1350
Mass Total mass in travel state kg 22900
Axle 1 kg 5240
Axle load Axle 2 kg 17660
Travel performance Travel speed Max. travel speed km/h 70
Min. stable travel speed km/h 4
Turning diameter Min. turning diameter m 20
Min. turning diameter at boom tip m 23
Min. ground clearance mm 270
Approach angle (°) 21
Departure angle (°) 10
Braking distance (at 30km/h with full load) m 9.5
Max. grade-ability ％ 24
Fuel consumption for 100km L 35
Power Engine rated output kW/(r/min) 158/2200
Engine rated torque N.m/ (r/min) 790/1400
Engine rated speed r/min 2200

Main Technical Data for Lifting Operation

Classificatory Item Unit Parameter
Lifting performance Max. total rated lifting capacity t 16
Min. rated working radius m 3
Turning radius at turntable tail m ≤3.12
Max. load moment Base boom kN.m 711
Fully extended boom kN.m 449
Fully extended boom + Jib kN.m 186
Outrigger span Longitudinal m 4.6
Lateral m 5.4
Lifting height Base boom m ≥9.9
Fully extended boom m ≥23.6
Fully extended boom + Jib m ≥30.8
Boom raising time s ≤60
Working speed Boom full extension time s ≤75
Max. swing speed r/min ≥2.5
Hoist speed Main winch Full load m/min ≥54
(single line) No load m/min ≥100
Aux. winch Full load m/min ≥54
No load m/min ≥100
Noise limit Crane exterior noise dB (A) ≤118
At seated position dB (A) ≤90

Construction Hoisting Machinery 16 Tons Telescopic Boom Crane

Construction Hoisting Machinery 16 Tons Telescopic Boom Crane
