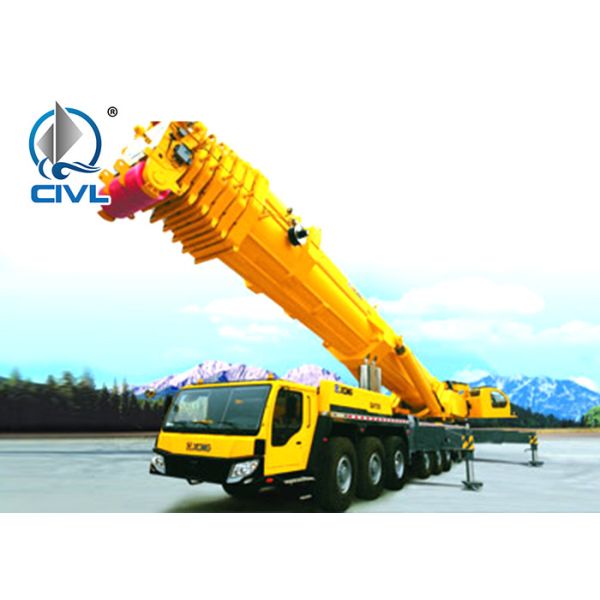

Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Yellow 100 Ton All Terrain Crane XCMG QY100K-I Max. Travel Speed 80 Km / H Telescopic Boom Crane
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500units/year
Delivery Time :
Within 35 days
Packaging Details :
nude
color :
yellow
condition :
new
engine :
cummins
Description

100t all terrain crane XCMG QY100K-I truck crane

1. Main Technical Data Table in Travel configuration (Subject to improvement)

Category Item Unit Parameter
Outline Dimensions Overall length mm 15600
Overall width mm 3000
Overall height mm 3850
Wheel base mm 1420+2420+1800+1420+1505
Track mm 2610/2610/2610/2315/2315/2610
Front overhang mm 2550
Rear overhang mm 2225
Total vehicle mass in travel configuration kg 54900
Axle load 1st Axle kg 8000
2nd Axle kg 8000
3rd Axle kg 7900
4th Axle kg 12000
5th Axle kg 12000
6th Axle kg 7000
Power Superstructure engine Model TAD720VE TAD750VE
Rated power kW/(r/min) 174/2300 181/2300
Rated torque N.m/(r/min) 854/1400 1050/1500
Carrier engine Model OM460LA.E3A/1
Rated power kW/(r/min) 360/1800
Rated torque N.m/(r/min) 2200/1300
Travel Performance Max. travel speed km/h 80
Min. travel speed km/h 0.5
Min. turning diameter m 24
Min. turning diameter at boom tip m 26.6
Min. ground clearance mm 300
Approach angle ° 20
Departure angle ° 14
Braking distance (at 30 km/h ) m ≤10
Max. grade ability % 40
Oil consumption per 100km L 70
Noise Exterior noise level during acceleration traveling dB (A) ≤88
Noise level at seated position dB (A) ≤90
