Lifting 35000KG/35T Truck Telescoping Boom Crane 320HP Engine
Lifting 35000KG/35T Truck Telescoping Boom Crane 320HP Engine
Lifting 35000KG/35T Truck Telescoping Boom Crane 320HP Engine
Lifting 35000KG/35T Truck Telescoping Boom Crane 320HP Engine
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
500units/month
Delivery Time :
Within 35 days
Packaging Details :
Waxed on deck
Dimension :
12620x2500x3350mm
Engine Power :
320HP
Max Speeds :
75km/h
Total weight in travel :
36930 KG
Description

Lifting 35000KG/35T TruckTelescopic Boom Crane 320HP Engine

Features

Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.

U boom system
Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.

Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.

Specifications

Overall length mm 12620
Overall width mm 2500
Overall height mm 3350
Weight 　 　
Total weight in travel kg 36930
Front axle load kg 12330
Rear axle load kg 24600
Power 　 　
Engine model 　 SC9DK320Q3
Engine rated power kW/(r/min) 235 / 2200
Engine rated torque N.m/(r/min) 1250 / 1400
Travel 　 　
Max. travel speed km/h 75
Min. turning diameter m 19.5
Min. ground clearance mm 260
Approach angle ° 17
Departure angle ° 15.7
Max. grade ability % 40
Fuel consumption for 100km L 30
Main performance 　 　
Max. rated total lifting capacity t 35
Min. rated working radius mm 3000
Turning radius at turntable tail m 3.055
Max. lifting torque kN.m 1200
Base boom m 10.5
Fully extended boom m 39.6
Fully extended boom+ jib m 54.6
Longitudinal outrigger span m 5.35
Lateral outrigger span m 6
Working speed 　 　
Boom luffing time s 68
Boom full extension time s ≤155
Max. swing speed r/min ≥2.5
Max. speed of main winch (single rope) m/min ≥130
Max. speed of aux. winch (single rope) m/min ≥130

Photos

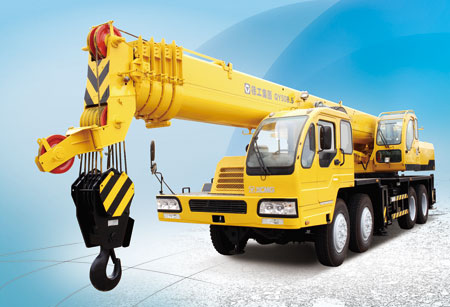

Lifting 35000KG/35T Truck Telescoping Boom Crane 320HP Engine
