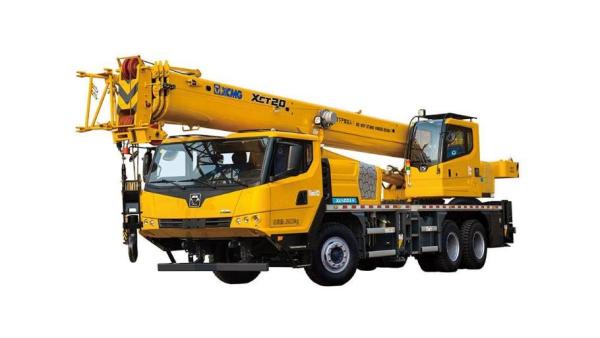

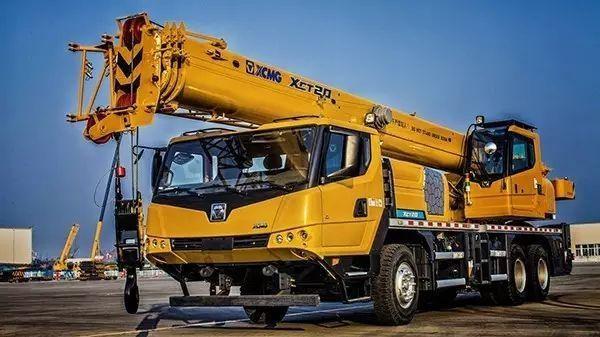

XCMG XCT20L4 Truck Crane / Telescopic Boom Crane With Lifting Capacity 20 Ton
XCMG XCT20L4 Truck Crane / Telescopic Boom Crane With Lifting Capacity 20 Ton
XCMG XCT20L4 Truck Crane / Telescopic Boom Crane With Lifting Capacity 20 Ton
XCMG XCT20L4 Truck Crane / Telescopic Boom Crane With Lifting Capacity 20 Ton
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
usd50000-usd100000 per unit
Payment Terms :
L/C, T/T
Supply Ability :
100units per month
Delivery Time :
Within 35 days
Packaging Details :
nude
Loading ton :
20tons
Brand :
XCMG
Dimension :
12535*2500*3420mm
Wheelbase :
4425+1350mm
working total weight :
26020kgs
Engine :
SC7H260Q4/WP7.270.E434 199KW
Type :
Truck crane
Description

XCMG XCT20L4 Truck Crane / Telescopic Boom Crane With Lifting Capacity 20 Ton

XCMG 20T Camion Grue

General specification:

-Brand Name: XCMG

--Model: XCT20L4

--Max. Lifting Load: 20T

-Made year: 2017

-Condition: NEW

-Air Conditionner

Dimension:

-L*W*H: 12535*2500*3420mm

-Wheelbase: 4425+1350mm

-Wheel tread: 2027 /1834mm

Weight specs:

-Working total weight: 26020kgs

-Axle load: 6450/19570kgs

Engine specs:

-Engine model: SC7H260Q4/WP7.270.E434

-Engine rated power: 192/2300199/2100kw/(r/min)

-Engine rated torque: 1000/1200~16001160/1200~1500N.m/(r/min)

Main performance specs:

-Max. Lifting Load: 20t

-Min.rated range: 3m

-Baseboom max.lift moment: 957KN.m

-Turntable tail swing radius: 3425mm

-Longitudinal support leg: 5.23m

-Transverse support leg: 6.16m

-Baseboom max. Lift height: 10.9m

-Baseboom length: 10.6m

-Longest main boom length: 34m

-Lift speed:

Main structure: 135s

Sub structure: 135s

Boom contraction time: 50s

-Support leg stretch time(leteral): 25s

Contrsct time(leteral): 23s

-Support leg stretch time(vertical): 25s

Contrsct time(vertical): 23sXCMG XCT20L4 Truck Crane / Telescopic Boom Crane With Lifting Capacity 20 TonXCMG XCT20L4 Truck Crane / Telescopic Boom Crane With Lifting Capacity 20 Ton
