Specifications
Brand Name :
XCMG / SINOTRUK
Model Number :
MQH37A/ZZ1317N3867A
Certification :
CCC/CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 pc
Price :
negotiation
Payment Terms :
L/C or T/T or western Union
Supply Ability :
500pcs per month
Delivery Time :
25-30 working days after received your payment
Packaging Details :
Package in Nude
Product Name :
SINOTRUK 40/20ft Container Side Lifter Trailer
Lifting capacity :
37-40T
Model :
MQH37A
Dimension: :
14100*2500*4100mm
Color :
White/Red/Blue/yellow
Description

20ft 40ft container side lifter 37Tons lift capacity box loader container trailer

Specifications:

Side lifter Container Trailer Specifications
Specifications
Specification: GB/T 3811-2008
Dimension: 14100*2500*4100mm (Customized)
Load Capacity: 45-100 Tons
Founction: Lift 1*40ft container, or 2*20ft container
Distance Between Trailer And Container Optimum distance: 400mm
Largest distance: 1500mm
Side Lifter Crane Quality Side Crane
Max Lifting Capacity 40000kg
Max. Stabilliser Stretch 3200mm
Max. Working Range 4000mm
Max. Pressure of Hydraulic 28MPa
Hydraulic System Italian CASAPPA Pump
Electrolic Control System Hydraulic control value: Netherlandish AMCA
Telecontroller: German NBB
Voltage: 12V
Two Chain Two chain: lugs (imported)
Deisel Engine Janpanese Kubota
Chassis
Main Beam:

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B,

welded by automatic Submerged-Arc processes.
Frame Beam:

Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm,

main beam height 500mm
Painting: Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2coats of final paints
Parts
Axle: FUWA or BPW, 3 units, 3*13 tons
Suspension: Mechanical or Air Suspension
King Pin: 2'' or 3.5''
Landing Gear: 28T lifting capacity with two speed
Rim: 9.0*22.5 12pcs
Tire: 12R22.5(Option:11.00-20, 12.00-20)
Brake System: WABCO, ABS Optional
Leaf Spring: 90mm(W)*16mm(T)*10 Layer (Option:90/16/10;100/16/10)
Electrial System: 24V; 7 ways receptacle; LED lamps
Accessories: One tool box, one spare tire carrier
Colour and Marking: Comply with the customer’s requirement

Description:

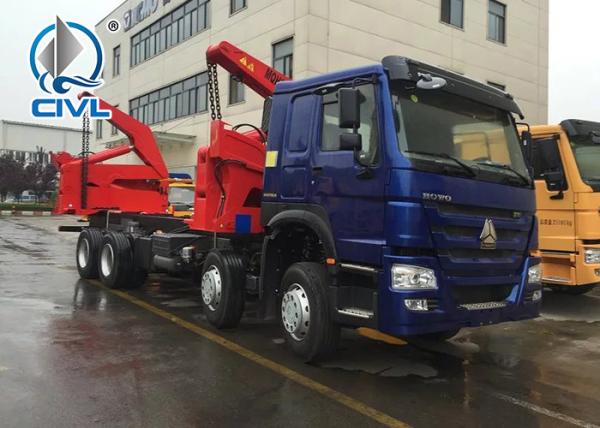

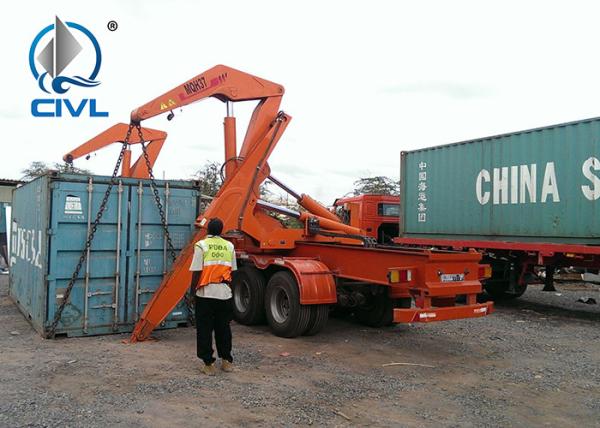

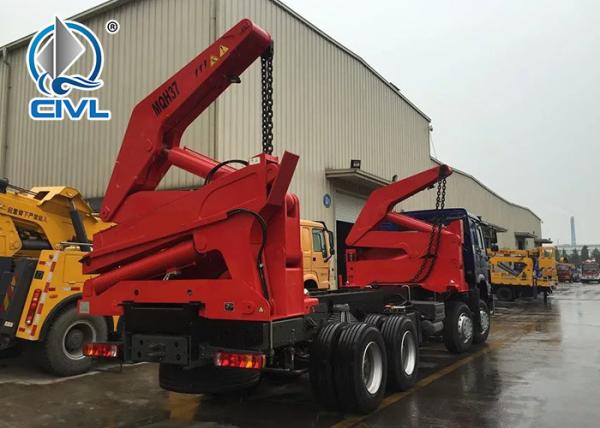

The semi-trailer is used for lifting and carry two 20 feet containers or

one 40ft container in port, station and freight yard, the trailer’s hydraulic system power is from PTO in tractor truck, it can be operated both wireless remote control and manual operation.

All the container transporter semi trailer can be customized,welcome you have a visit to our factory

Applications:

1. Load 20/40/45 feet Containers.

2. Attached to Tractor Truck.

3. Max Lifting capacity: 37000kg

4. Max working range: 4000mm

Competitive Advantage:

1.SINOTRUK brand stronger chassis, most suitable chssis for side lift.

Axle: the best brand in China without maintaining.

Brake system: 6 brake chamber WABCO brand braking valve, dual line brake system

with ABS

2.Power take off(PTO) or Diesel APU;

3.Side loader can slide to fit 20ft-40ft Containers.

4.Wireless remote control/Manual operating.

5. Engine throttle size and engine speed can be control, improving working efficiency.

6.The front and rear crane can work together and Separate, adjusting container conveniently.

7.Safety control with stop button.

8.Elegant appearance,Reliable performance,

9.Convenient operation,Facilitate manufanture and maintenance.

10.With strong power and rich attachments, the XCMG skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
