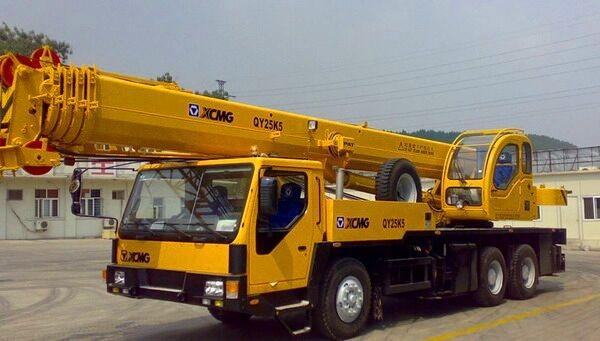

High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine
Specifications
Brand Name :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
Model Number :
CIVL
Description
50T Heavy duty truck crane of XCMG New Type with Weichai Engine
The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.

Dimension

Unit

QY50K-Ⅱ
Overall length mm 13750
Overall width mm 2800
Overall height mm 3520

Weight

　

　
Total weight in travel kg 41000
Front axle load kg 15000
Rear axle load kg 26000

Power

　

　
Engine model 　 WD615.334(domestic III)
Engine rated power kW/(r/min) 247/2200
Engine rated torque N.m/(r/min) 1350/1400

Travel

　

　
Max. travel speed km/h 80
Min. turning diameter m 24
Min. ground clearance mm 291
Approach angle ° 17
Departure angle ° 11
Max. grade ability % 40
Fuel consumption for 100km L 45

Main performance

　

　
Max. rated total lifting capacity t 50
Min. rated working radius m 3
Turning radius at turntable tail m 3.482
Max. lifting torque kN.m 1764
Base boom m 11.3
Fully extended boom m 42.7
Fully extended boom+ jib m 57.7
Longitudinal outrigger span m 5.91
Lateral outrigger span m 6.9

Working speed

　

　
Boom luffing time s 88
Boom full extension time s 180
Max. swing speed r/min ≥2.0
Max. speed of main winch (single rope) (no load) m/min ≥110
Max. speed of aux. winch (single rope) (no load) m/min ≥110

High Efficiency 50 Ton Heavy Duty Truck Crane With Weichai EngineHigh Efficiency 50 Ton Heavy Duty Truck Crane With Weichai EngineHigh Efficiency 50 Ton Heavy Duty Truck Crane With Weichai EngineHigh Efficiency 50 Ton Heavy Duty Truck Crane With Weichai Engine

DORIN (Ms)

1:mail : roadmachine@road-machine.com

2:Tel : 86+13210589366

3:Skype : 008613210589366

4:The company :SINO VEHICLE&EQUIPMENT COMPANY LTD
