XCMG QY30K5-I 30ton Weichai Engine 40.4m Lifting Truck mounted Crane
Description:
XCMG QY30K5-I 30ton Weichai Engine 40.4m Lifting Truck mounted Crane
XCMG QY30K5-1 truck cranes conduct hoisting operation in the street of Ethiopia Addis Ababa University campus. Ethiopia Addis Ababa University is the largest comprehensive institution, as the reputed university in local region, which boasts the most plentiful education resources in Ethiopia and significant honor across Africa.
XCMG is regarded as one the Chinese machinery brands that take the lead to step into Ethiopia market and maintain a successful sales performance. For the construction project of the teaching building, Ethiopia side solicits tenders for a plurality of rounds.
At last, XCMG wins the bidding by its absolute advantages in the aspects such as products, technology, service and the like, which shows that XCMG seizes an unchallengeable status in Ethiopia market.
Specification:
Dimension | Unit | QY30K5-I | |
Overall length | mm | 12570 | |
Overall width | mm | 2500 | |
Overall height | mm | 3390 | |
Weight | |||
Total weight in travel | kg | 32400 | |
Front axle load | kg | 7000 | |
Rear axle load | kg | 25400 | |
Power | |||
Engine model | SC8DK280Q3 | WD615.329 | |
Engine rated power | kW/(r/min) | 206/2200 | 213/2200 |
Engine rated torque | N.m/(r/min) | 1112/1400 | 1160/1400 |
Travel | |||
Max. travel speed | km/h | 80 | |
Min. turning diameter | m | 22 | |
Min. ground clearance | mm | 291 | |
Approach angle | ° | 19 | |
Departure angle | ° | 13 | |
Max. grade ability | % | 40 | |
Fuel consumption for 100km | L | 40 | |
Main performance | |||
Max. rated total lifting capacity | t | 30 | |
Min. rated working radius | mm | 3000 | |
Turning radius at turntable tail | m | 3.065 | |
Max. lifting torque | kN.m | 1025 | |
Base boom | m | 10.6 | |
Fully extended boom | m | 40.4 | |
Fully extended boom+ jib | m | 48.7 | |
Longitudinal outrigger span | m | 5.85 | |
Lateral outrigger span | m | 6 | |
Working speed | |||
Boom luffing time | s | 68 | |
Boom full extension time | s | 150 | |
Max. swing speed | r/min | 2.5 | |
Max. speed of main winch (single rope) (no load) | m/min | 120 | |
Max. speed of aux. winch (single rope) (no load) | m/min | 120 |

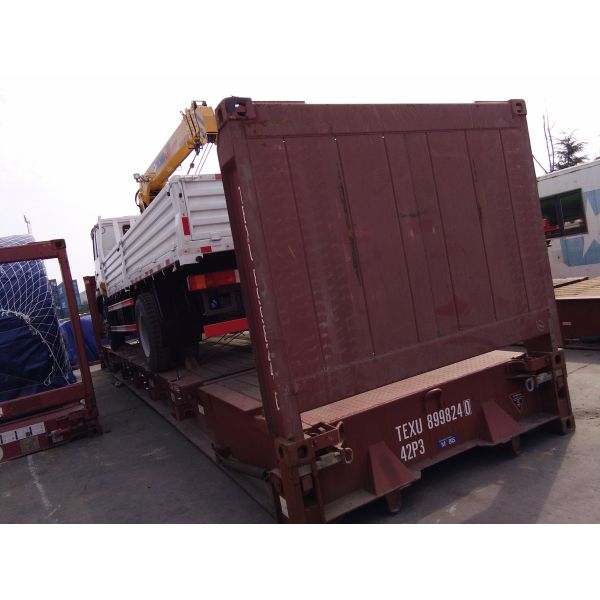

Deatails photo:
FAQ:
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms 2010 terms can we work?
A: We XCMG are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.
Q: How about AFTER-SALES SERVICE ?
A: 365×24 Year-round Service
Globally, we have more than 5000 service engineers and 1500 dedicated service vehicles. We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Smart Butler Service
We have established a perfect GPS Global Service Center, and we can provide you with a proactive smart butler system through an Internet of Things platform.
Spare Parts When You Need Them
We have thousands of spare parts centers across five continents that stock almost 1 billion specialist spare parts. We promise that spare parts will be delivered within 72 hours.
After-market Worry-free Service
We are committed to providing after-market services, including rentals, second-hand vehicle evaluations, trade-ins, overhauls, and recycling. We always stick to our responsibility and mission of handling your concerns as best we can.
Quality warranty
We grant our clients a fourteen-month or 2000-hours warranty for any machine purchased from us.
