Specifications
Brand Name :
CIVL
Model Number :
CIVLAB25J/
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 units one week
Delivery Time :
Within 30 days
Packaging Details :
by container
Name :
Articulating Boom Aerial Work Platform
maximum platform height :
25m/46m
Tire Size :
385/65-24/10/ solid 445/50D710 24PR (foam tires)
Platform Dimensions(L × W × H) :
2.44×0.91×1.1m
hydraulic system volume :
170L/ 400L
Power :
54 kw/74kw
Weight :
7,100kg(2WD)/7,300 kg(4WD)/ 27,300kg(4WD)
Description

25m/46m Fuel Cherry Picker/ Bucket Truck/ Articulating/Straight Boom Aerial Work Platforms Fuel Aerial Work Vehicles

Description:
Articulated boom aerial work platform is divided into electric type and diesel type.

  • Working height 16.0~48.6m,
  • The platform carrying capacity is 230~455kg,
  • Climbing ability 30~45%,
  • Provides multi-directional positioning functions of up, down and spanning,

It is suitable for working spaces that are difficult to access,
such as bridge maintenance and construction, indoor and outdoor stadium construction, steel structure buildings,
municipal greening and other construction scenarios.

Specification:

modelCIVLAB25JCIVLAB46RJ
size
maximum platform height24.6m46.6m
maximum working height26.6m48.6m
maximum horizontal extension16.1m25.5m
Max spanning height9.4m-
A length - stowed state11.51m15m
B width - stowed state2.49m2.49m
C height - stowed state3.2m3.2m
D wheelbase3.05m4.58m/5.2m (outriggers expand/retract)
Ground clearance0.39m0.33m
Platform Dimensions (L × W × H)2.44×0.91×1.1m2.44×0.91×1.1m
performance
Rated load230kg 275kg ( Unlimited / 2 people and tools )455kg (Limited / 2 people and tools)
Turntable rotation360° continuous360° continuous
Platform rotation160°180°
Maximum travel speed - stowed state4.4km/h0~4.5km/h
Maximum travel speed - lifted1.1km/h0~0.48km/h
Grade ability45%(4WD)/30%(2WD)40%(4WD)
Inside turning radius3.0m3.0m
outer turning radius6.33m7.1m
Turntable tail sweep1m-
Allowable inclination when working5°5°
Maximum noise during normal operation82dB(A)82dB(A)
Drive × Steer4WD×2WS/2WD×2WS4WD×4WS
Tire size (type)385/65-24/10/ solid445/50D710 24PR (foam tires)
power
Power source (choose one of two configurations)Cummins 54KW, China 3 emission standard/ Deutz 55.4KW,Cummins 74kw/2200rpm/Euro III
control voltage12V DC12V DC
Fuel Tank Volume - Diesel160L200L
Hydraulic tank volume170L400L
weight
weight16,300kg(4WD)27,300kg(4WD)

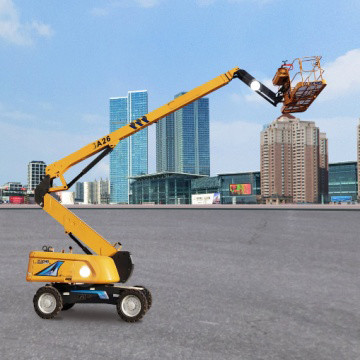

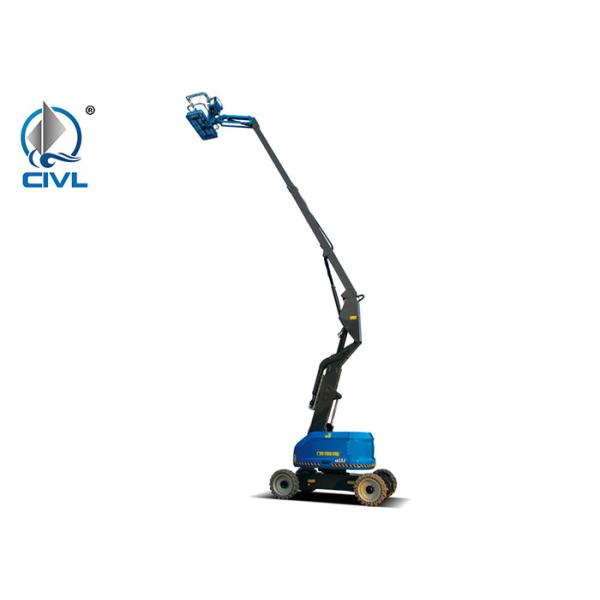

Photos:
25m/46m Fuel Cherry Picker / Bucket Truck / Articulating / Straight Boom Aerial Work Platforms25m/46m Fuel Cherry Picker / Bucket Truck / Articulating / Straight Boom Aerial Work Platforms

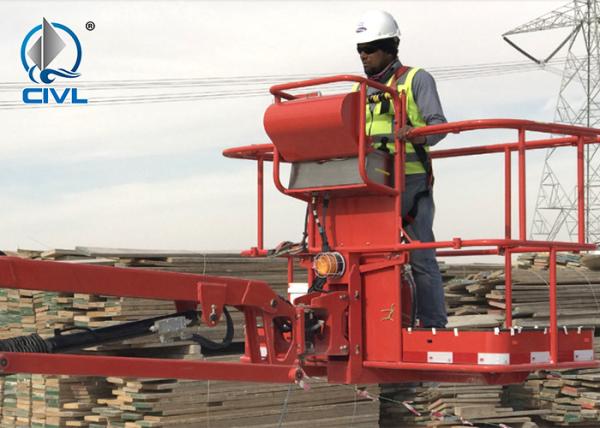

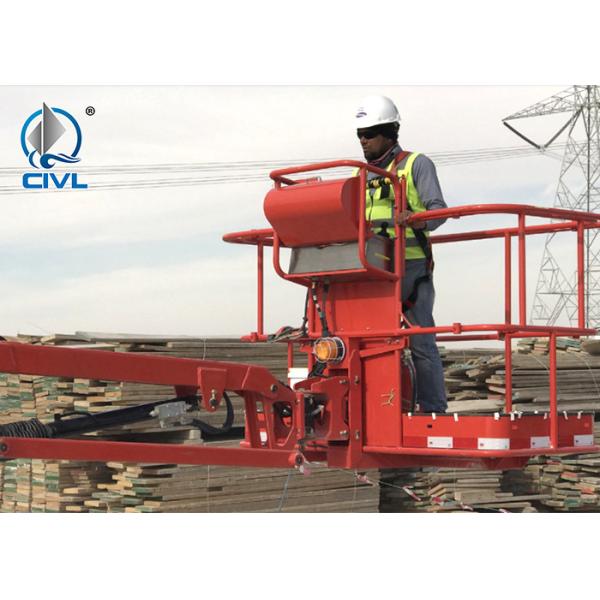

Working scene
25m/46m Fuel Cherry Picker / Bucket Truck / Articulating / Straight Boom Aerial Work Platforms25m/46m Fuel Cherry Picker / Bucket Truck / Articulating / Straight Boom Aerial Work Platforms
other types:

Modelworking heighthorizontal extensionPlatform carrying capacityGradeability
CIVLAB15J16.7m8.5m250kg30％ (2WD) / 40% (4WD)
CIVLAB18J20.3m12.2m250kg40％
CIVLAB25J26.6m16.1m230kg45%(4WD)/30%(2WD)
CIVLAB46J48.6m25.5m

275kg (unlimited)

455kg (limited)

40%(4WD)
