18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis
Specifications
Brand Name :
CIVL
Model Number :
CIVLGKS23
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
2
Payment Terms :
T/T
Supply Ability :
1000 sets one month
Delivery Time :
Within 30 days
Packaging Details :
by container
Name :
18m Telescopic Van with Basket
Chassis Model :
4x2
Wheelbase :
3800mm
Max Lifting Height :
18m
Min. Working radius :
7.5m
Maximum lifting height :
8.3m
Bucket Loading Capacity :
200kg
Basket size :
1080*610*1100mm
Description

18m Telescopic Van With Basket Aerial Work Vehicle With 4x2 Truck Chassis

Description:

Aerial work vehicles are widely used in municipal, electric power, light repair, advertising, photography, communications, gardens, transportation, mining, docks and so on.
Mainly used in electric power, communications, street lights, traffic police, highways, cable TV, shipbuilding, construction, large enterprises and other industries

Specification:

Basic Performance Ambient Temperature minus 20℃～45℃
Wind force scale limited within level six
Workplace should be a solid formation, legs must be supported in real soil slope ≤ 5
Operations must be in the horizontal situation
Chassis Performance Chassis Model 4x2
Year of Manufacture 2022
Brand new truck Zero Km
Curb weight :kg 4955
Gross Weight : kg 10800
Rated load : kg 8500
Overall dimension LxWxH: mm 8400×2270×3450mm
Ground clearance : mm 235
Max Speed (Limited) :Km/h 95
Wheelbase: mm 3800
Basket Performance Max Lifting Height:m 18
Min. Working radius:m 7.5
Maximum lifting height 8.3m
Bucket Loading Capacity:kg 200
First Arm/Boom Lifting Angle 0°～70°
Second Arm/Boom Lifting Angle 0°～67°
Third Arm/Boom Lifting Angle 0°～90°
Slewing Angle 360°
Slewing speed ≤180°/min
Max Hoist Capacity:kg 1000
Second Arm/boom lifting speed:m/s 0.08～0.15
First Arm/boom lifting speed:m/s 0.20～0.25
Hoist speed:m/s 0.15～0.20
Arms type Three arms folded
Basket size:mm 1080*610*1100

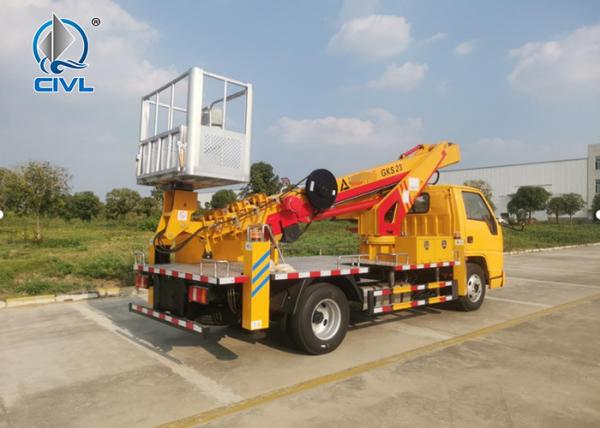

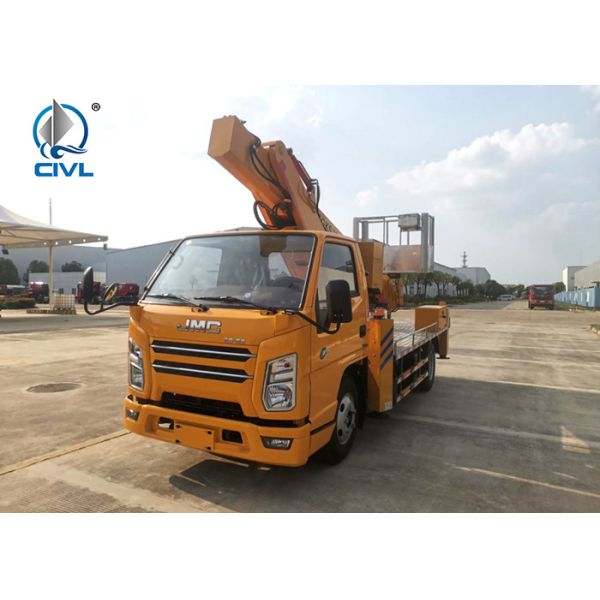

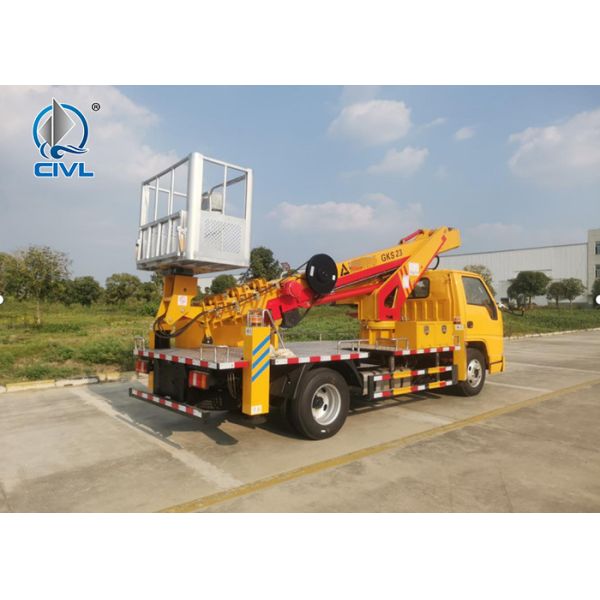

Photos:

18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis

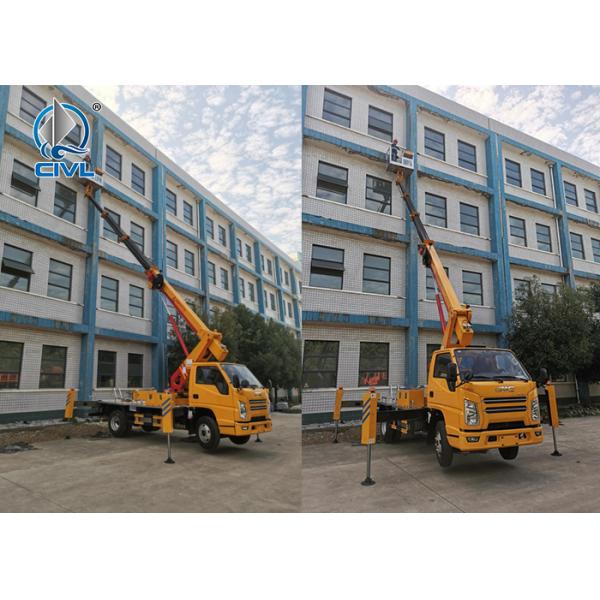

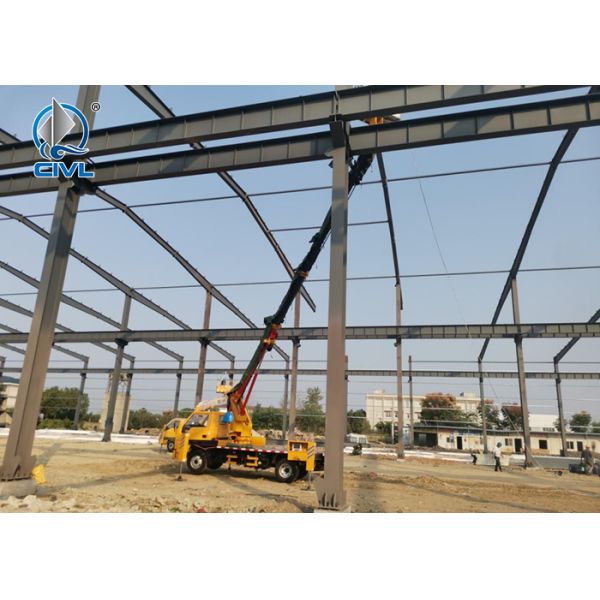

Working scene

18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis18m Telescopic Van With Basket Aerial Work Vehicle 4x2 Truck Chassis

Serve No Limitation !

The main Truck series we deal with :

1. dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)
