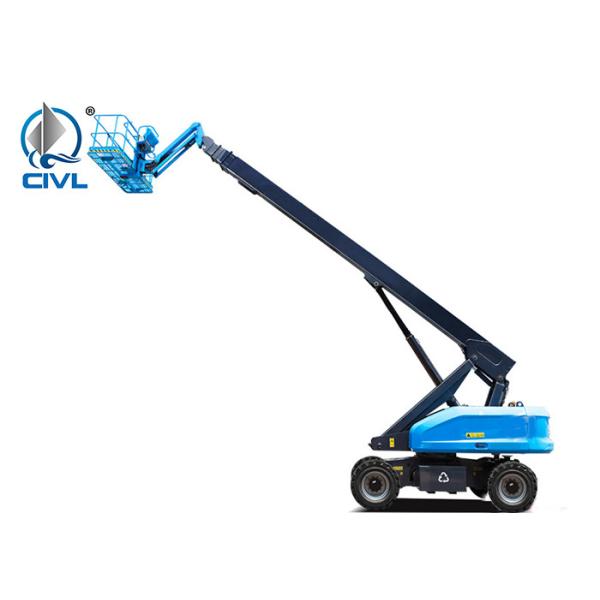

Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 units one month
Delivery Time :
Within 30 days
Packaging Details :
ro-ro
Name :
Aerial work platform
maximum platform height :
18.4m
Maximum working height :
20.4m
Tire Size :
33×12D610
Total Weight :
9600kg
Hydraulic tank volume :
120L
Description

18m Self-Propelled Straight Arm Aerial Work Platform /Cherry Picker /long boom/arm truck with cage/bucket

Aerial Work Truck 17m Straight Arm Telescopic Aerial Work Vehicle 150hp Engine Special Vehicle For Aerial Work 4x2

Description:

Product Highlights

Green

■ Battery powered, quiet, no noise pollution, comfortable working environment;

■ Zero emissions to meet indoor or emissions-critical site needs

low maintenance cost

■ Battery quality assurance, low failure rate and reduced maintenance costs;

■ Compared with diesel power, the battery maintenance cost is low and the overall operating cost is reduced

Intelligent control saves worry and effort

■Intelligent control Save worry and effort Three proportional handle controls, the action starts and stops smoothly, and accurately approaches the job target;

■ Equipped with HV function: intelligently control boom luffing and telescoping, which is arc-shaped compared to the traditional boom working track, HV function

It can be automatically controlled as a straight line;

■ Efficiently manage and control device usage behavior, and cooperate with smart large screen to facilitate customers to view device information and realize network connection

Safe and reliable, strong site passing performance

■ Full-time floating, no need for electrical testing, more reliable; no floating on uneven ground, safer;

■ Allow a larger inclination angle of 5° when working, and can work on more uneven ground;

■ The boom structure is integrally welded and formed, reducing tailor-welded butt joints and greatly improving reliability

Specification:

size
maximum platform height 18.4 m
Maximum working height* 20.4m
Maximum horizontal extension (restricted/unrestricted) 11.7m /13.2 m
The length of the whole machine (the state of the car is closed) 9.67 m
Overall length (transportation state) 8.71 m
The width of the whole machine (in the state of closing the car) 2.42m
Overall width (transportation state) 2.42 m
Height of the whole machine (in the state of closing the car) 2.56 m
Overall height (transportation state) 2.93
wheelbase 2.49 m
Ground clearance 0.34 m
Platform size (length × width × height) 2.44 m×0.91 m×1.1 m
performance
Platform Rated Carrying Capacity (restricted/unrestricted) 454 kg/300 kg
Maximum number of people on the platform (limited/unlimited) 3 people / 2 people
Driving speed (car-received state) 0～4.8 km/h
Travel speed (lifted state) 0～1.1 km/h
Grade ability*** (4WD) 35 %
Turntable Rotation (Angle/Continuity) 360 °/continuous
Platform rotation angle 160 °
maximum allowable inclination 5 °
Turning radius (inner/outer) 2.4 m/4.86m
Turntable tail sweep 1.15 m
Maximum allowable lateral force (restricted/unrestricted) 600N/400 N
maximum allowable wind speed 12.5 m/s
Tire Size/Type 33×12D610(foam tire)
power
drive × steering 4WDx2WS
Hydraulic tank volume 120 L
hydraulic system pressure 28MPa
Battery Specifications (Quantity × Voltage, Capacity) 2×24 V,480 Ah
system voltage 48 VDC
control voltage 12 VDC
Charger (input voltage/output current) 100～240 V AC/60 A
Motor (Voltage/Power) 29 V DC/15 kW
weight
Total Weight 9,600 kg

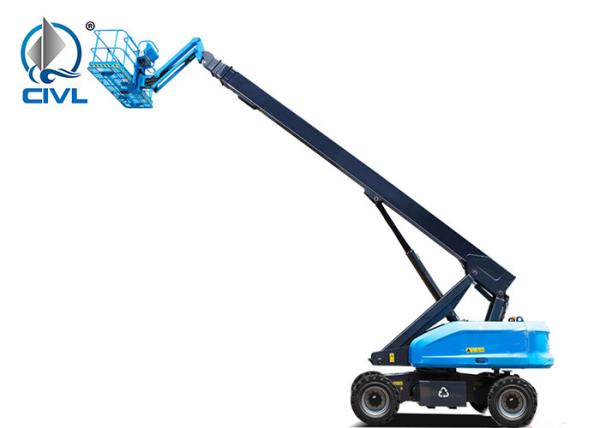

Photos:

Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work PlatformLong Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform

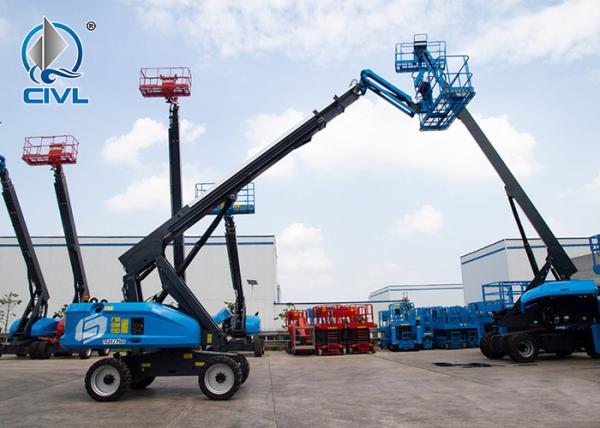

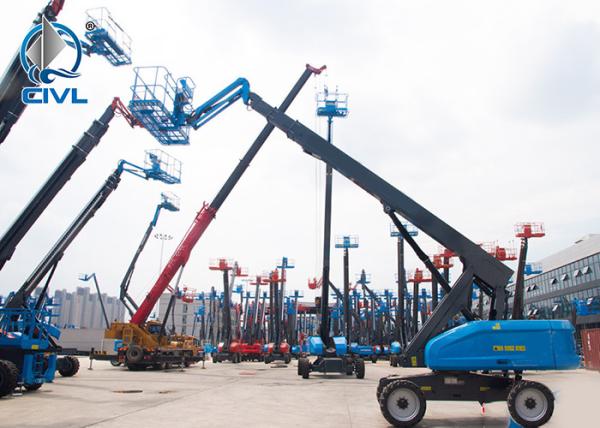

Working scene

Long Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work PlatformLong Boom Arm Truck With Cage Bucket 18m Self Propelled Straight Arm Aerial Work Platform

Serve No Limitation !

The main Truck series we deal with :

1. dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)
