38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
CHINA
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 units one month
Delivery Time :
Within 30 days
Packaging Details :
ro-ro
Name :
Aerial work platform
maximum platform height :
38.4m
Maximum working height :
40.4m
Tire Size :
385/65-22.5
Platform carrying capacity :
454kg
Grade ability :
40%
Description

38.4m Straight Arm Aerial Work Platform 54kw Engine 40% Grade ability/ Cherry Picker /Long Arm Bucket Truck cherry pick

Description:

heavier load

  • The platform height is 16m-32m, the rated load is 454kg, and the work efficiency is higher.

full-time floating

  • Both non-working state and working state have floating function: can work on inclined, uneven ground. There is no need for electrical detection and control, and the reliability is higher.

Intelligent maintenance and inquiry

  • Intelligent 7-inch display large screen, displaying fault and status information, which is convenient for operators to inquire. It is convenient for managers to query machine information and maintenance information

Precisely approaching the job target

  • The upper stage control box is equipped with 3 full-scale handles for gradual control, boom luffing, boom telescopic, turntable rotation and walking speed, the movement starts and stops smoothly, and accurately approaches the job target

Specification:

size
maximum platform height 38.4m
maximum working height 40.4m
Maximum horizontal extension (restricted/unrestricted) 19.5m/21.0 m
A Length - stowed 13.8m
B width - stowed 2.49m
C height - stowed 3.1m
D wheelbase 3.6m
Ground clearance 0.43m
Platform Dimensions (L × W × H) 2.44×0.91×1.1 m
performance
Platform Rated Carrying Capacity (Limited / Unrestricted) 454kg/300kg
Turntable rotation 360° continuous
Platform rotation 160°
Maximum travel speed - stowed 0~4.4 km/h
Maximum travel speed - lifted 0~1.1 km/h
Gradeability 40%
Inside turning radius 2.56m
outer turning radius 5.57m
Turntable tail sweep 1.86m
Allowable inclination when working 5°
maximum allowable wind speed 12.5m/s
Maximum allowable lateral force (limited/unlimited) 600N/400N
Drive × Steer 4WD×4WS
Tire Size / Type 385/65-22.5(foam tires)
power
Engine (Power/RPM/Spec/Brand/Emission) Cummins QSF2.8t3TC72, 54KW,
Emission Standards
Hydraulic tank volume 250 L
Diesel fuel tank volume 200 L
hydraulic system pressure 28MPa
Battery Specifications ( Quantity × Voltage , Capacity ) 2×12 V 110 Ah
control voltage 12 VDC
weight
weight 20,700 kg

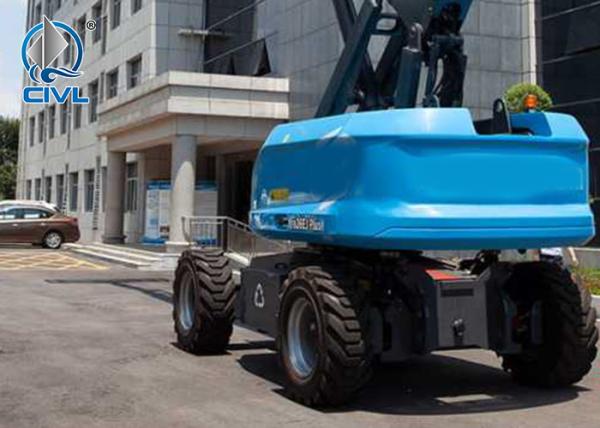

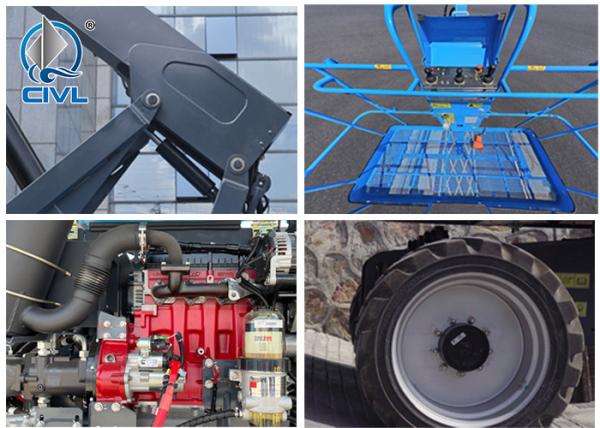

Photos:

38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker

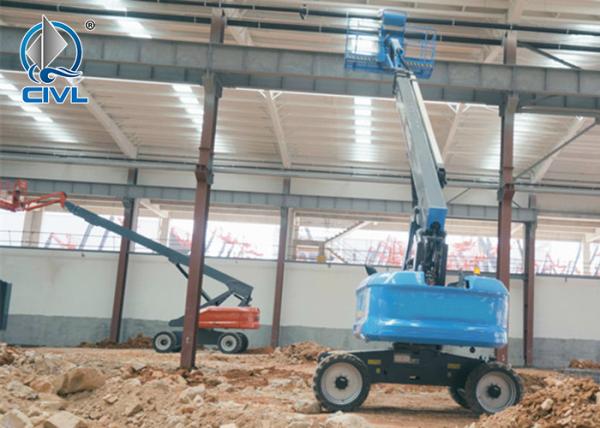

Working scene

38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker38.4m Straight Arm Aerial Work Platform 54kw Engine Cherry Picker

Application

Adopting the design concept of sturdiness and durability, excellent and reliable performance,

it provides users with a safe aerial work platform to meet the needs of challenging working conditions.

Widely used in large steel structure, construction engineering, shipbuilding industry, curtain wall engineering,

petrochemical and other industries.
