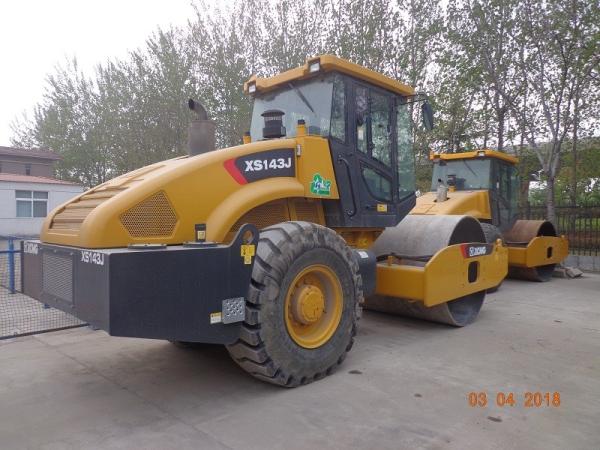

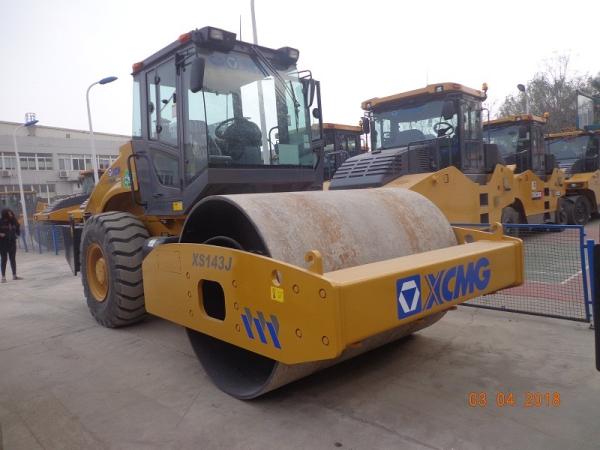

Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
Specifications
Brand Name :
XCMG
Model Number :
XS143J
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
USD 30000-USD40000 per unit
Payment Terms :
LC, TT
Supply Ability :
100units/month
Delivery Time :
25days after receive order
Packaging Details :
nude, waxed on deck
Type: :
Single Drum Roller
Operating mass :
14000kgs
Engine :
SC4H140.1G2,103KW
Overall dimension :
6150x2300x3200mm
Wheelbase :
3040mm
Color :
XCMG yellow
Description

Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs

Product brief introduction

XCMG single drum vibratory roller ranges from 14t to 26t of 14basic standard models. It is the

most complete product line with the most perfect functions. XCMG roller has become the market

leader and has been the first choice of many customers at home and abroad.

ITEM SPECIFICATION
Type: Single Drum Roller
Operating mass 14000kgs
Distribution mass of front wheel 8200kgs
Distribution mass of rear wheel 5800kgs
Static linear pressure 315N/cm
Vibration frequency 28/33HZ
Engine
Type SC4H140.1G2
Rated power 103KW
Rated speed 2200r/min
Dimension
Overall dimension 6150x2300x3200mm
Wheelbase 3040mm
Min. Ground clearance 431mm
Speed
Gear I 0-4.5km/h
Gear II 0-6.0km/h
Gear III 0-7.2km/h
Gear IV 0-12km/h
Steering angle ±33
Swing angle ＋10

Model XS143J Mechanical Single Drum Vibratory Roller , Road Roller With Operating Mass 14000kgs
