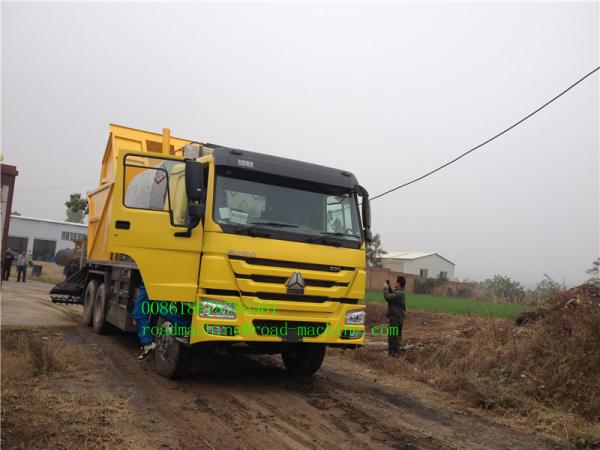

Sinotruk Howo 10M3 Synchronous Chip Sealer Road Construction Equipment
Application:
synchronous chip sealer
the sealing layer under the road surface construction, new and old pavement overlay on wearing layer construction, the asphalt surface layer spread construction, asphalt & macadam respectively spilled out of the special circumstances, etc.
Main Features
1. Synchronous chip sealer adopts famous brand chassis with reliable quality.
2. Asphalt tank adopts the heat preservation material of silicon acid aluminum and with good performance of heat preservation.
3. Asphalt tank can spray with certain quantity by fixed spray pipe or spray by hand spray gun. Asphalt pump is installed outside for convenience or for operations.
4. Pipeline cleaning adopts heat conducting oil and can be cleaned with high pressure air. The nozzles are not easily jammed.
5. The structure of chipping spread part is compact. It is comfortable for driving and convenient for use.
Main Technical Parameter | ||||
Product Name | Asphalt sealer | Gross Vehicle Weight (kg) | 25000 | |
Curb Weight (kg) | 17370 | Rated Payload(kg) | 7500 | |
Overall Dimension(mm) | 10200x2500x3563 | Cab Allowed Persons | 2 | |
Axle No. | 3 | Wheelbase (mm) | 4600+1350 | |
F/R Suspension(mm) | 1500/2750 | Axle Load(kg) | 7000/18000 | |
App/Dep Angle(º) | 16/14 | Max Speed(km/h) | 90 | |
Chassis Technical Parameter | ||||
Chassis Model | ZZ1257M4647C | Chassis Brand | SINOTRUK | |
Overall Dimension (mm) | 9895×2496×2958 | Tyre No. | 10 with 1 spare tyre | |
App./ Dep. Angle(º) | 16/18 | Tyre Spec. | 11.00-20 | |
Leaf Spring No. | 10/12 | Front Track (mm) | 2022 | |
Fuel Type | Diesel | Rear Track (mm) | 1830/1830 | |
Drive Type | 6x4 | Brake System | Air brake | |
F/R Suspension(mm) | 1500/2445 | Axle Load(kg) | 7000/18000 | |
Engine Technical Parameter | ||||
Engine Model | WD615.92E | Emission Standard | Euro III | |
Power | 196kw/265hp | Displacement(ml) | 9726 | |
Superstructure Technical Parameters | ||||
Asphalt Tank Volume(m³) | 6.0 | Gravel Tank Volume(m³) | 10.0 | |
Asphalt Pump | QGB950 | Proportioner | Made in Tai Wan | |
Asphalt Nozzle Q’TY | 48PCS | Burner | Italy Brand | |
Spaying Width(m) | 4 | Asphalt Distribution | 0.2-4.0kg/m2 |
