Specifications
Brand Name :
shantui
Certification :
iso ccc
Place of Origin :
china
MOQ :
1 unit
Payment Terms :
L/C, T/T
Supply Ability :
1000units/month
Delivery Time :
20-30days
Packaging Details :
nude
engine :
cummins
color :
yellow
brand :
shantui
Description

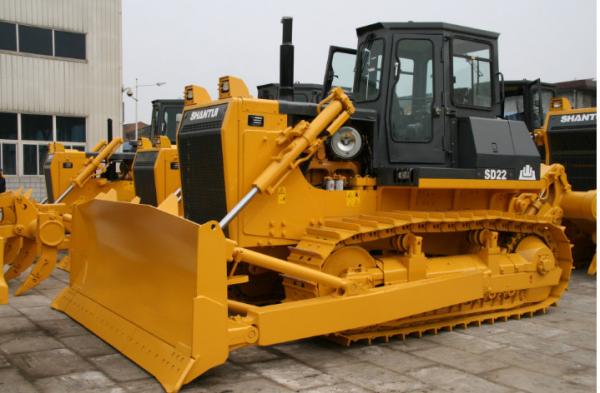

cummins engine shantui dozer sd32 / sd22 / sd16

130 HP
SD13
Technical
specifications:		 Blade Type Straight-tilt Angle
Min. ground clearance: 320 mm 320 mm
Ground pressure: 0.064 MPa 0.064 MPa
Minimum turning radius: 4.466 m 4.545 m
Gradeability: 30° 30°
Track gauge: 1880 mm 1880 mm
ENGINE Model & type

Shangchai SC8D143G2B1; Water-cooled, in-line,

4-cycle, direct injection and turbocharged
Rated power 95.5 kW
Number of cylinders 6—114 x 135 mm (bore x stroke)
Piston displacement 8.27 L
Min. fuel consumption 228 g/kW·h
Maximum torque 674 N·m@1300 rpm
POWERTRANS
MISSIONSYSTEM		 Torque converter 3-element, 1 stage, 1 phase
Transmission Forced connected, planetary gear
Main drive Spiral bevel gear, splash lubrication
Steering clutch

Wet, multidisc, spring loaded, hydraulic helping operation,

mechanical separating, linking steering brake
Steering brake

Wet, floating, band type foot stepping brake

with hydraulic helping
Final drive

2-stage speed reduction of spur gear,

splash lubrication
TRAVELSPEED Gear 1st 2nd 3rd
Forward 0~3.2 km/h 0~5.9 km/h 0~9.8 km/h
Reverse 0~3.9 km/h 0~7.1 km/h 0~11.9 km/h
UNDERCARRIAGE
SYSTEM		 Type

Swing type of sprayed beam,

suspended structure of equalizer
Carrier rollers 2 each side
Track rollers 6 each side
Track type Single grouser, dry type
Width of track shoes 460 mm
Pitch 190 mm

HYDRAULIC

SYSTEM

 Maximum pressure 14 MPa
Pump type Gear pump
Discharge 180 L/min

Bore of working

cylinder × no.

 90 mm × 2
BLADE Blade type Straight-tilt Angle
Dozing capacity 3.7 m3 3.4 m3
Blade width 3185 mm 3745 mm
Blade height 1090 mm 915 mm

Maximum drop

below ground

 590 mm 590 mm
RIPPER(OPTIONAL) Maximum tilt adjustment 400 mm

Maximum digging depth

of 3-shank ripper

 467 mm
Weight of 3-shank ripper 1421 kg

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
