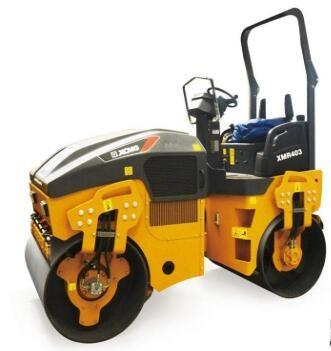

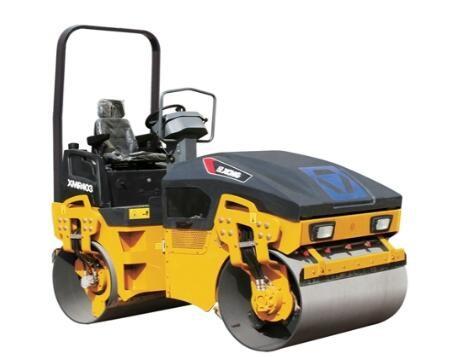

Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Ride - on small Road Vibratory Roller XMR403 Light Compaction Equipment / 4 Ton Double Drum Roller
Specifications
Brand Name :
XCMG
Model Number :
XMR403
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per Month
Delivery Time :
35-40 work days
Packaging Details :
In nude
Brand :
XCMG
Color :
Yellow
Operating weight :
4100kg
Grade Ability :
30%
Engine Model :
ZN490Q
Type :
Double Drum Roller
Description

Ride-on small-size Road Mini Vibratory Roller XMR403 Light Compaction Equipment 4 ton double drum roller XMR403

The XMR303/403 vibration roller offers high operational efficiency and a wide range of applications. It is suitable for road, airport, port, dam, stadium, park, pavement, car park and trench projects that require a solid foundation due to its compact shape and flexible movement.

XCMG XMR403 manual vibratory road roller price

The XMR403S is a highly efficient machine designed for a wide range of compaction and maintenance work including roads, airfields, seaports, dams and housing foundations. The compact design and high mobility also make the machine indispensable to munici-pal construction work such as stadiums, parks, pedestrians, parking area, trenches, etc. Articulated frame features flexible steering for great stability.

Hydraulic transmission, hydraulic vibration/oscillation and steering combine to offer unsurpassed reliability.

Both front and rear drums are equipped with scrapers and sprinkler devices.

Excellent drum edge visibility during operation allows for easy compaction of road curbs.

Specification for Ride-on small-size Road Mini Vibratory Roller XMR403 Light Compaction Equipment 4 ton double drum roller XMR403

Type Unit XMR403
Operating weight kg 4100
Static linear load N/cm 157/157
Travel Speed km/h 0—10
Gradeability in theory % 30
Minimum turning radius mm 2932/4232
Min ground clearance mm 350
Steering angle ± ° 30
Swing angle ±° 10
Vibration frequency Hz 60
Nominal amplitude mm 0.41
Exiting force(L/H) kN 42
Compacting width mm 1300
Drum diameter mm 800
Engine Model ZN490Q
Rated rotating speed r/min 2600
Rated power kW 35.5
Dimensions(LxWxH) mm 2720x1416x2776
Water tank capacity L 220
Fuel tank capacity L 66
Hydraulic tank capacity L 52
