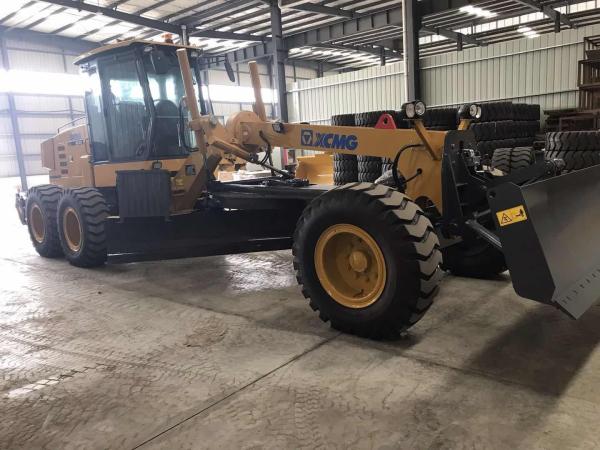

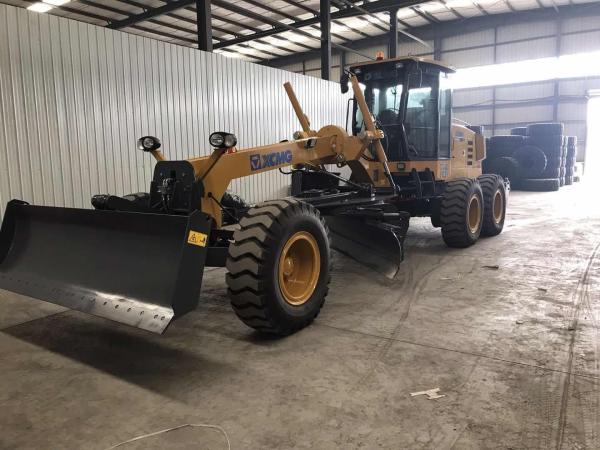

XCMG Compactor Road Maintenance Machinery XCMG 170HP Motor Grader GR1653
XCMG Compactor Road Maintenance Machinery XCMG 170HP Motor Grader GR1653
XCMG Compactor Road Maintenance Machinery XCMG 170HP Motor Grader GR1653
XCMG Compactor Road Maintenance Machinery XCMG 170HP Motor Grader GR1653
XCMG Compactor Road Maintenance Machinery XCMG 170HP Motor Grader GR1653
XCMG Compactor Road Maintenance Machinery XCMG 170HP Motor Grader GR1653
Specifications
Brand Name :
XCMG
Model Number :
GR1653
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 Unit/Units per Month
Delivery Time :
35-40 work days
Packaging Details :
In nude
Brand :
XCMG
Model :
GR1653
Condition :
New
Color :
Yellow
Engine model :
D6114
Operating weight(Standard) :
15000kgs
Description

Road Construction machinery XCMG 170HP Motor Grader GR1653

Features:
1 New appearance design.
2 The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
3 The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
4 The international matching hydraulic parts are adopted,with reliable operation.
5 The motions of the blade are fully hydraulically controlled.
6 The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
7 The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
8 The cab is grand and nice,with wide eyeshot and good sealing .

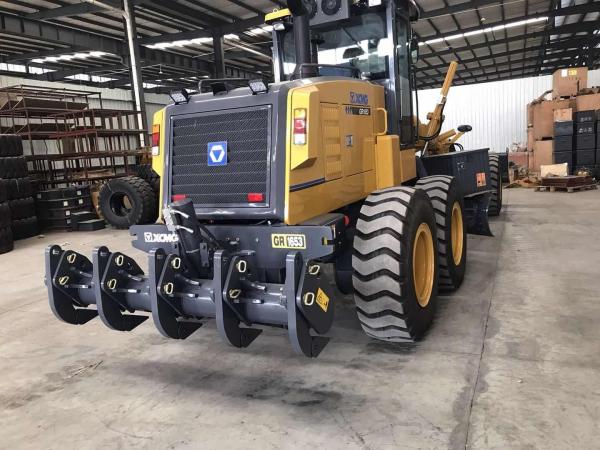

9 The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added.

Parameters:

Basic specification
Engine modelD6114
Rated power/speed125kW/2300rpm
Dimension(LxWxH)8900×2625×3470mm
Operating weight(Standard)15000kg
Performance specification
Travelling speed ,forward5,8,11,19,23,38 km/h
Travelling speed ,reverse5,11,23 km/h
Tractive force(f=0.75)77KN
Max. gradeability20%
Tire inflation pressure260 kPa
Working hydraulic pressure16 MPa
Transmission pressure1.3~1.8MPa
Operating specification
Max. steering angle of front wheels±50°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box15
Frame articulation angle±27°
Min. turning radius using articulation7.3m
Biade
Maximum lift above ground450mm
Maximum depth of cutting500mm
Maximum blade position angle90°
Blade cutting angle28°—70°
Circle reversing rotation360°
Moldboard width X height3965×610mm
