New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery
Specifications
Brand Name :
CIVL
Model Number :
XTF1405
Certification :
CCC ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1300 units per day
Delivery Time :
25-30 work days
Packaging Details :
Nude
Maximum seal width (m) :
4
Asphalt spreading amount (kg/㎡) :
0.2-3.0
Amount of gravel spread (L/㎡) :
3-22
Application :
Road Maintenance
Color :
Customized
Condition :
New
total mass kg :
31000
Dimensions mm :
12000×2550×3900
Description

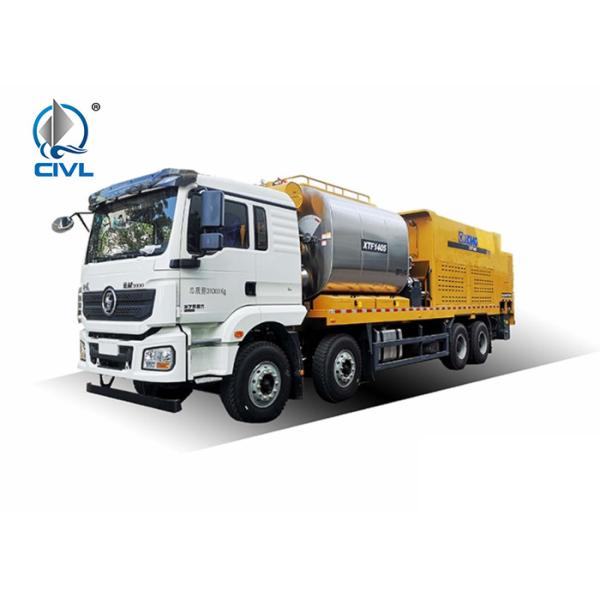

New XTF1405 Synchronous Gravel Sealer Truck Road Maintenance Machinery

Description:

XZJ5311TFCTBS (XTF1405) Asphalt and gravel synchronous sealing truck can realize the simultaneous distribution of asphalt and gravel to improve and improve the quality of road sealing;
It can spray rubber asphalt, base asphalt, modified asphalt, emulsified asphalt and other asphalt;
It is suitable for the construction of the lower sealing layer and the upper sealing layer of the road surface and the bridge deck, the construction of the new and old pavement with the wear layer, the layered construction of the asphalt pavement, and the separate spraying of the asphalt gravel under special circumstances;
It can be used for interlayer treatment and mid-term maintenance construction of high-grade highways.

Specification:

project Unit parameter
parameter item - XTF1405
Maximum seal width m 4
Asphalt spread kg/㎡ 0.2-3.0
Amount of gravel spread L/㎡ 3-22
Asphalt distribution accuracy % ±1
Asphalt tank volume L 8
Crushed stone silo volume m³ 14
Gravel particle size mm 3-25
Working speed km/h 3-10
Engine power kW/ r/min 276/1900
total mass kg 31000
Dimensions mm 12000×2550×3900

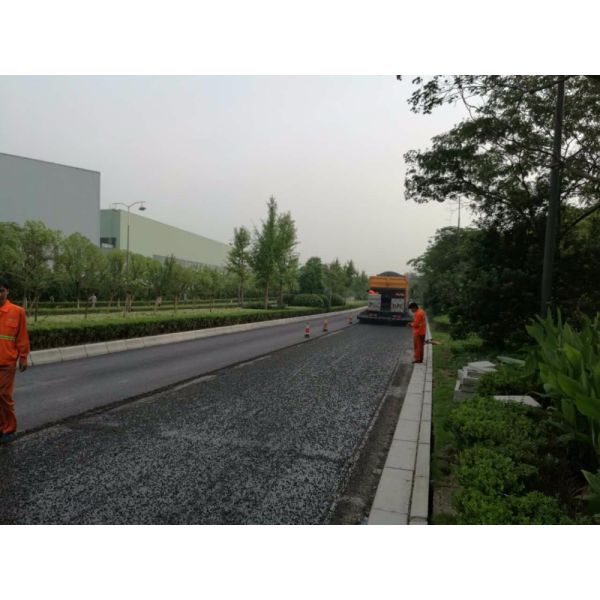

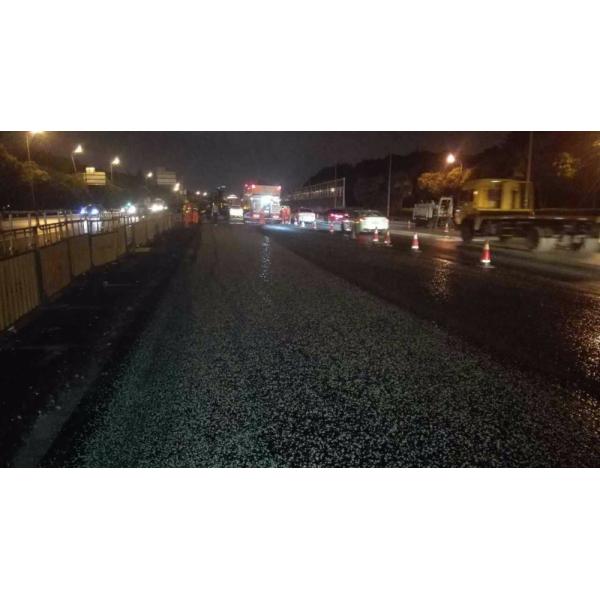

Photos:

New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery

of Fiber chip selaer
New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery

New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery

New XTF1405 Synchronous Gravel Sealer Truck Road maintenance Machinery

Features
1. Belt conveying silo, the height of the whole vehicle is not increased during construction, the center of gravity of the whole vehicle is low, and the construction adaptability of bridges, culverts and ramps is good
2. The conveyor belt is a drawer design. There are rollers below the conveyor belt, which can slide on the frame track. The conveyor belt is easy to replace.
3. Hydraulic telescopic gravel spreader, the stone falls vertically, and the spreading uniformity is good
4. The automatic folding asphalt spray beam is driven by a hydraulic motor, which is easy to operate
5. Double diesel burner asphalt tank, fast heating speed and good thermal insulation performance; paddle-type stirring device, stirring evenly, can effectively solve the problem of rubber asphalt precipitation and segregation
6. Adopt chassis full power PTO, high reliability and easy maintenance

About us:

CIVL SHARES is committed to international trade and cooperation.
We are a leader of solution providers for full sets of vehicles, construction machineries and auxiliary facilities.

Relying on the materials, equipments and vehicles needed for infrastructure,logistics and transportation as well as people's livelihood, We provide a complete set of solution from services in pre-sale,in-sale and after-sale to our customers.

Our products cover from transportation vehicles, special vehicles, passenger cars, pavement machinery, road maintenance equipment, port special tools, concrete production lines, etc. to the related-auxiliaries including various board houses, tents, steel structures, building materials, mobile fuel stations, etc.
