Specifications
Brand Name :
XCMG
Model Number :
RP452
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10units per week
Delivery Time :
in 25 days
Packaging Details :
nude, by bulk ship or ro-ro ship
Productivity :
240t/h
Max.paving width :
4.5m
Max.paving thickness :
150mm
Machine weight :
11500kgs
Bucket capacity :
12t
Engine power :
70KW
Color :
Yellow
Description

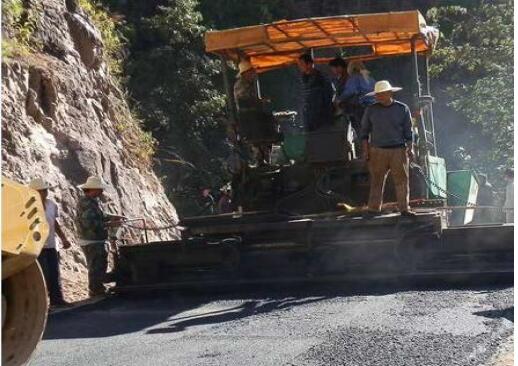

XCMG brand Asphalt Concrete Paver Machine, model RP452, productivity 240t/h, paving width 4.5m, thickness 150mm

Features:

· The first full-hydraulic compact tire paver and hydraulic components in China are all well-known domestic and foreign company's products to ensure product reliability.

· The left and right input materials are independent, single-sided chain with a unique single-chain double scraper form, effectively improve the whole material conveying capacity.

The use of mechanical and electrical integration control technology, the standard configuration of two longitudinal electronic automatic leveling instrument to ensure paving a higher degree of smoothness.

* Screed hydraulic stepless telescopic, suitable for widening road operating conditions; stepless adjustable vibration frequency, to meet the needs of different operating conditions.

Power transmission system uses Yuchai YC4D95Z engine, power up to 70KW, large power reserve.

Specification:

ITEM UNIT SPECIFICATION
Working performance data
Productivity t/h 240
Max.paving width m 4.5
Max.Paving thickness mm 150
Max.paving speed m/min 13
Flatness mm 3
Density % ≥80
Density unevenness rate % <5
Driving data
Max.driving speed km/h 13
Drive mode Tyre type
Gradeability % 20
Min.turning diameter m 16
Driving bake Static+multi disc brake
Parking brake Wet multi disc brake
Brake distance m 4.7
Tyre model 974
Vibration frequency Hz 6~42
Weight data
Machine weight kg 11500
Max.weight kg 12000
Oversize mm 5690×2070×3590
Bucket volume t 12
Bucket width mm 3000
Bucket length mm 1740
Engine
Model YC4D95Z-T21
Power kW/r/min 70/2200
Emission Euro II
Fuel tank L 130

XCMG Brand Asphalt Concrete Paver Machine Model RP452 Productivity 240t/H, Paving Width 4.5m, Thickness 150mm

The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY.
Truck series:

1.dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)

Machine series:

1.Wheel loader,Backhoe loder, brick making machine

2.Roller,

3.Motor Grader,

4.Bulldozer,

5.Excavator,

6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane),

7,forklift and 45t contain reach stacker

8,paver and so on
