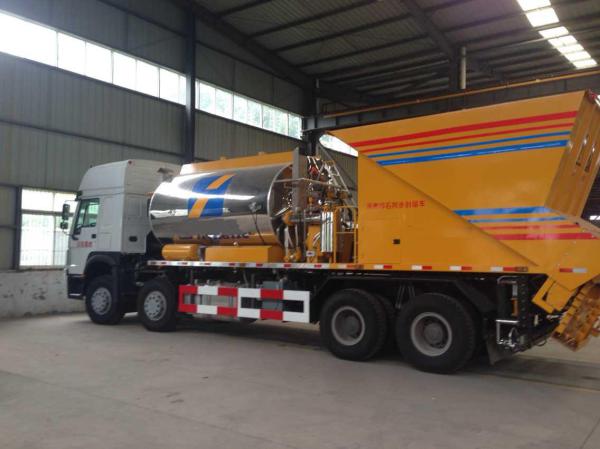

Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Asphalt Distributor , Asphalt Tank Volume 5000L , 5400L , 6600L , 7000L And 13400L
Specifications
Brand Name :
SHMC
Model Number :
LMT5251GLQ
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
$10000-$50000
Payment Terms :
L/C, T/T
Supply Ability :
50 units per month
Delivery Time :
within 25 days after get order
Packaging Details :
nude, waxed on deck
Asphalt tank :
5000L, 5400L, 6600L, 7000L, 13400L
Spray width :
2200mm, 6000mm
Asphalt volume :
0.25-3kg/m2
Truck dimension :
10500×2496×3350mm
Description

Emulsified asphalt, diluted asphalt, hot asphalt, heavy asphalt and high viscosity modified asphalt.

● The car uses PTO force mode, and in the control system to set two zero-start spray conditions.

● In the tank designed dual combustion system, heating speed. The use of heat transfer oil to ensure that the asphalt pipe unimpeded. Tank equipped with a single powerful mixing device, so that the rapid convection tank media to avoid media segregation, precipitation, so that sprinkle evenly, reliable quality.

● Computer control system can set the working parameters, by setting the program to achieve automatic control of spray volume.

● The key parts (hydraulic pump, motor, asphalt pump, thermal oil pump, air control valve, automatic control system, speed radar, etc.) adopt imported components to ensure the overall reliability and service life.

Specification
Model LMT5251GLQ LMT5140GLQ LMT5120GLQ LMT5121GLQ LMT5081GLQ
Technical date
Dimension(mm) 10500×2496×3350 8990×2465×2780 8990×2350×2855 8810×2480×3100 7410×2010×2520
Working date
Spray width(mm) 2200 6000 6000 6000 6000
Asphalt volume (kg/㎡) 0.25-3.0 0.25-3 0.25-3 0.25-3 0.25-3
Tank volume(L) 13400 7000 6600 5400 5000
Chassis date
Chassis model ZZ1257M4647C DFL1140B BJ1123VJPEG-S EQ1126KJ1 HFC1081KT
Engine model WD615.93 ISDE180-30 CA4DF3-15E3 ISDE160-30 CY1402-C3D
Rated power (kW) 213 128 116 118 80
Rated speed (r/min) 2200 2500 2300 2600 2800

The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY.
Truck series:

1.dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)

Machine series:

1.Wheel loader,Backhoe loder, brick making machine

2.Roller,

3.Motor Grader,

4.Bulldozer,

5.Excavator,

6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane),

7,forklift and 45t contain reach stacker

8,paver and so on
