Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Large Area Spraying / Epidemic Prevention Hydraulic Sprayers Stretcher Mounted Sprayer
Specifications
Brand Name :
SHMC
Model Number :
W series
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
apply :
Large area spraying&epidemic prevention
working pressure :
adjust/stable
type :
gasoline
working power :
hydraulic pump
Description

Performance characteristics and application: the structure is compact, reasonable design, convenient operation, mobility strong, with high pressure, missiles, good atomization, high efficiency etc, can be applied to rice, wheat crops and fruit, such as garden pest and disease control; Also applies to the community, station, wharf, livestock homes of anti-epidemic and disinfection.

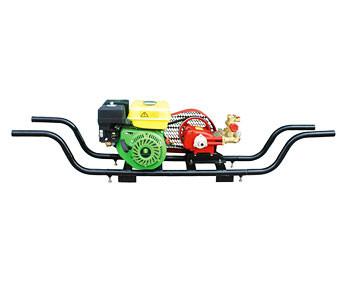

3WH-36

name Stretcher type power sprayer
model 3WH-36
Pump Type Three cylinder plunger pump
Rotational speed (r/min) 800～1000
Pressure (MPa) 2.0～3.5
Flow(L/min) 18～28
Spray gun Flow(L/min) 15
Horizontal range(m) 12～15
Engine Engine type 168F
Maximum power(kw/r/min) 3.7/3600
Fuel Consumption Rate ≤395
Package Net weight(kg) 37
Package Dimension(mm) 950×480×570

3WH-36T

name Hand push stretcher dual-purpose power spray machine
model 3WH-36T
Pump Type Three cylinder plunger pump
Rotational speed(r/min) 800～1000
Pressure(MPa) 2.0～3.5
Flow(L/min) 18～28
Spray gun Flow(L/min) 15
Horizontal range(m) 12～15
Engine Engine type 168F
Maximum power(kw/r/min) 3.7/3600
Fuel Consumption Rate ≤395
Package Net weight(kg) 37
Package Dimension(mm) 950×480×570

3WH-36L-II

name Cart type power sprayer
model 3WH-36L-II
Pump Type Three cylinder plunger pump
Rotational speed (r/min) 800～1000
Pressure(MPa) 2.0～3.5
Flow(L/min) 18～28
Spray gun Flow(L/min) 15
Horizontal range(m) 12～15
container capacity(L) 300
Engine Engine type 168F
Maximum power(kw/r/min) 3.7/3600
Fuel Consumption Rate ≤395
Package Net weight(kg) 80
Package Dimension(mm) 1600×740×1030

3WZ-300L

name Cart type power sprayer
model 3WZ-300L
Pump Type Three cylinder plunger pump
Rotational speed (r/min) 800～1000
Pressure (MPa) 2.0～3.5
Flow(L/min) 18～28
Spray gun Flow(L/min) 15
Horizontal range(m) 12～15
container capacity(L) 300
Engine Engine type 168F
Maximum power(kw/r/min) 3.7/3600
Fuel Consumption Rate(g/kw.h) ≤395
Package Net weight(kg) 90
Package Dimension(mm) 1600×740×1030

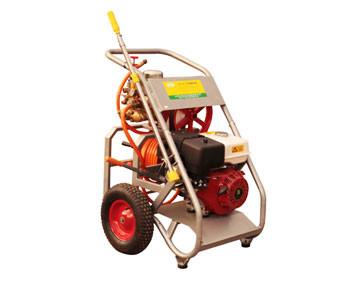

3WH-38-188F

name Hand push type power sprayer
model 3WH-38-188F
Pump Type Three cylinder plunger pump
Rotational speed (r/min) 800～1000
Pressure (MPa) 2.0～6.0
Flow(L/min) 80～103
Spray gun Flow(L/min) 28
Horizontal range(m) 18～25
Engine Engine type 188F
Maximum power(kw/r/min) 8.2/4000
Fuel Consumption Rate(g/kw.h) ≤375
Package Net weight(kg) 123
Package Dimension(mm) 870×600×1000

3WZ-300S

name Tricycle type power sprayer
model 3WZ-300S
Pump Type Three cylinder plunger pump
Rotational speed(r/min) 800～1000
Pressure(MPa) 2.0～3.5
Flow(L/min) 18～28
Spray gun Flow(L/min) 15
Horizontal range(m) 12～15
container capacity(L) 300
Engine Engine type 168F
Maximum power(kw/r/min) 3.7/3600
Fuel Consumption Rate(g/kw.h) ≤395
Package Net weight(kg) 90
Package Dimension(mm) 2500×1200×1400

WSJ-150LZC

model WSJ-150LZC
container capacity(L) 150
Pressure(Mpa) 1.5—3.0
Flow(L/min) 40
Mating power 168FA
power(KW/r/min) 3.7/3600
Walking speed(Km/h) 4.5
Operation efficiency(㎡/h) ≥26600
External Dimension(mm) 1500×800×870
