Specifications
Brand Name :
HBXG
Model Number :
SD9
Certification :
CCC ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negociable
Supply Ability :
800 unit /month
Delivery Time :
Within 40 days after get the deposit
Packaging Details :
Waxed on deck or in container
Dimension :
8478 x 4314 x 3970 mm
Operating Weight :
48880KG
Max Traction power :
139.6Kn
Bulldozer width :
4314mm
Colour :
Yellow
MAx Digging Depth :
614 mm
Description

Track Bulldozer SD9 with Ripper 430HP Elevated Sprocket Hydraulic Bulldozer SD9

Features

430HP SD9 bulldozer is semi-rigid elasticity suspending, hydraulic-mechanical transmission, elevated sprocket track type, wholly hydraulic operation, pilot hydraulic controlling blade operation, modular designing components easily for maintaining, portable laborsaving nicety man-machine designing controlling system, electric monitoring, ROPS cabin, many optional equipments, broadly used in transport, desert, oil field, power station, mine, swamp etc. Large-scale soil stone construction, You can select original American engine, emission standard meet with Tier3 with lower fuel consumption and stronger power output projects.

Parameters

Blade Straight and tilting
Ground pressure:(kpa) 112
Min. ground clearance:(mm) 517
Dozing capacity:(m3) 13.5
Max. digging depth:(mm) 614
Operation weight:(kg) 48880(with ripper)
Track gauge:(mm) 2250
Gradient: 30°/25°
Blade width:(mm) 4314
Overall dimensions:(L×W×H)(mm) 8478×4314×3970

2,Undercarriage System

Type: The track is triangle shape, the sprocket is elevated elastic suspended.
Number of track rollers(each side) 8
Pitch (mm) 240
Width of shoe (mm) 610

3,Gear

1st 2nd 3rd
Forward (Km/h) 0-3.9 0-6.9 0-12.2
Backward (Km/h) 0-4.8 0-8.5 0-15.1

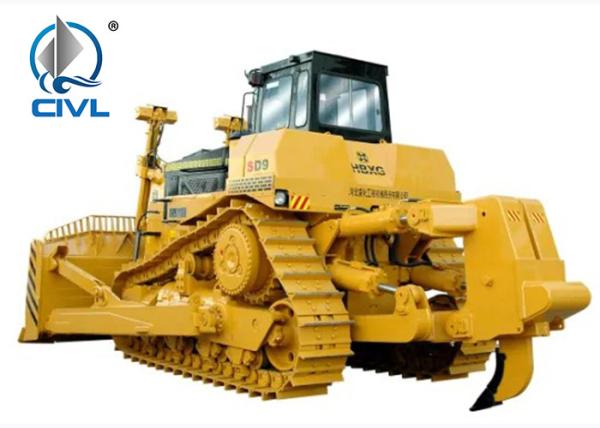

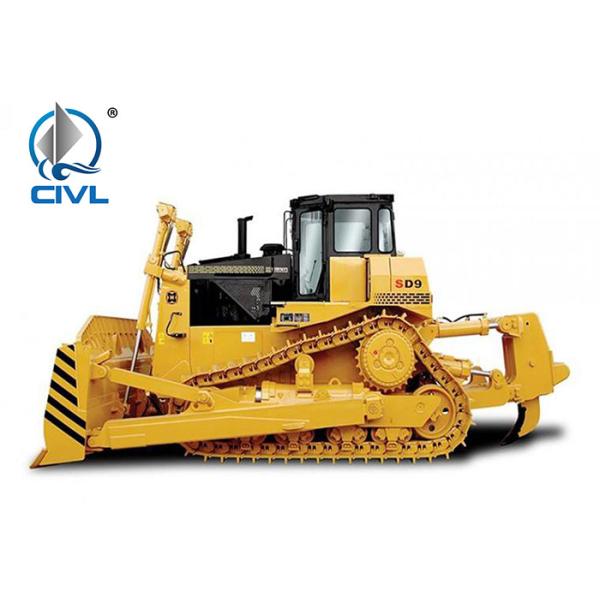

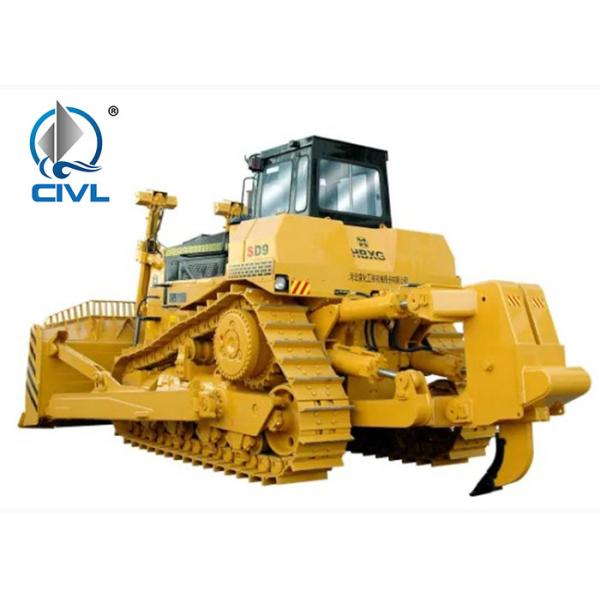

Photos

Track Bulldozer SD9 With Ripper 430HP Elevated Sprocket Hydraulic Bulldozer SD9 New Bulldozer Yellow ColorTrack Bulldozer SD9 With Ripper 430HP Elevated Sprocket Hydraulic Bulldozer SD9 New Bulldozer Yellow ColorTrack Bulldozer SD9 With Ripper 430HP Elevated Sprocket Hydraulic Bulldozer SD9 New Bulldozer Yellow Color
