Specifications
Brand Name :
Shantui
Model Number :
SD52
Certification :
CCC ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negociable
Supply Ability :
800 unit /month
Delivery Time :
Within 40 days after get the deposit
Packaging Details :
Waxed on deck or in container
Dimension :
10420×4680×4470 (Ripper included)
Operating Weight :
67.5(Ripper included)
Blade width :
4695×2265
Colour :
According to your request
Blade type :
Semi-U blade
Engine :
Cummins QSK19
Cabin :
low noise cab with ROPS/FOPS
Description

520HP Shantui Bulldozer SD52 with Cummins Engine , Operating Weight 67.5 Ton Yellow Powerful Bulldozer

520HP Shantui Bulldozer SD52 with Cummins Engine , Operating Weight 67.5 Ton Yellow Powerful Bulldozer520HP Shantui Bulldozer SD52 with Cummins Engine , Operating Weight 67.5 Ton Yellow Powerful Bulldozer520HP Shantui Bulldozer SD52 with Cummins Engine , Operating Weight 67.5 Ton Yellow Powerful Bulldozer

Descriptions

● The bulldozer has a module design for easy and convenient disassembly and repair;
● Adopting Europe III emission standards, the bulldozer is equipped with an air to air inter-cooling electrical control engine, featuring strong power and low oil consumption;
● Equipped with a hydrostatic torque converter with locking function, the bulldozer features excellent driving efficiency, which is beneficial in various working conditions;
● The brake system uses a normally closed type, braking after the engine stops for high safety;
● The working device uses pilot controls for excellent sensitivity and performance, making it easy to operate;
● The bulldozer is equipped with a low noise cab with ROPS/FOPS, which meets international safety standard, has excellent sealing performance, and indoor noise reaching international advanced levels;
● Large structural key parts are reinforced in design, improving reliability;
● Suspension travel system allows the bulldozer to function on various complicated road conditions, using effective vibration damping to improve overall comfort and reliability of the chassis;
● Equipped with large, colorful display screen; bulldozer can monitor itself.

Specifications

Basic inofrmations

ITEM UNIT SD52-5
L×W×H(Ripper not included) mm 10420×4680×4470 (Ripper included)
Operating weight(Ripper not included) t 67.5(Ripper included)
Engine - Cummins QSK19
Engine Emission standard - Euro III
Rated power kW/rpm 450/1800(SAE J1995)
kW/rpm 438/1800(SAE J1349)
Gradeability ° 30
Blade type - Semi-U blade
Blade width mm 4695×2265
Dozing capacity m3 18.5
Ma× drop below ground of blade mm 720
Lift height of blade mm 1660
Ripper type - Single ripper
Ripping depthof ripper mm 1435
Lifting height of ripper mm 1105
Number of carriers (each side) - 2
Number of track rollers (each side) - 7
Number of track shoes (each side) - 40
Width of track shoe mm 610
Track gauge mm 2500
Ground length and ground pressure mm/MPa 3940-0.138
Pitch mm 280
Forward speed km/h 0–3.8
0–6.8
0–11.8
Reverse speed km/h 0–5.1
0–9.2
0–15.8

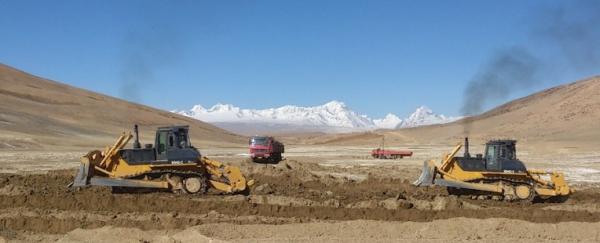

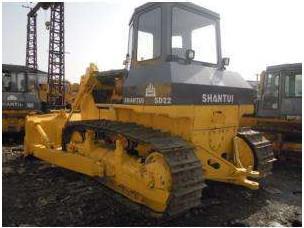

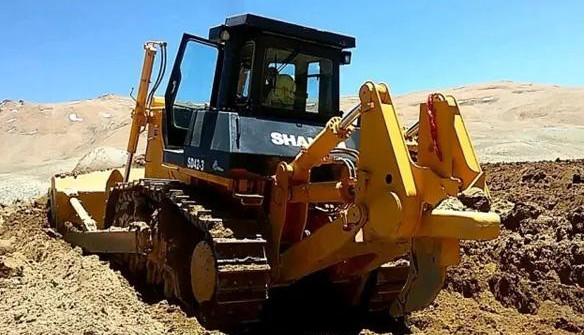

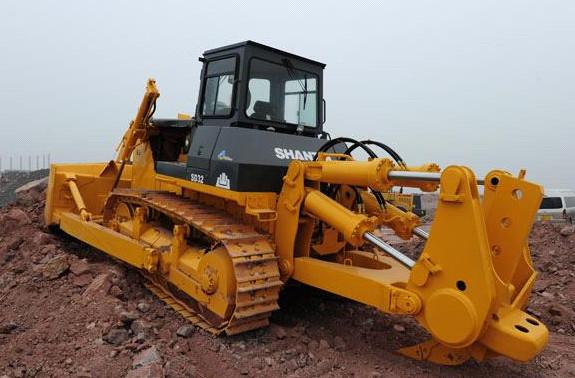

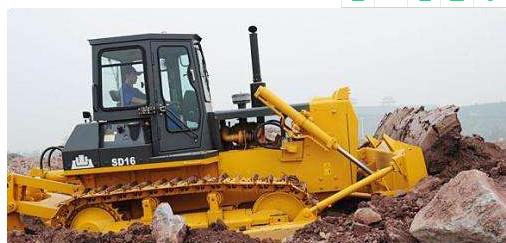

Photos

Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.
