420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper
Specifications
Brand Name :
XCMG
Model Number :
SD42
Certification :
CCC ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negociable
Supply Ability :
800 unit /month
Delivery Time :
Within 40 days after get the deposit
Packaging Details :
Waxed on deck or in container
Payment Terms :
T/T
Operation weight (including ripper) (Kg) :
53000 KG
Track gauge(mm) :
2250mm
Min. ground clearance (mm) :
517mm
Dozer :
Straight Dozer
Colour :
According to your request
Blade width (mm) :
4314 mm
Engine :
Cummins KTA19-C525
Operating weight (Ripper not included) :
53t (Ripper included)
Description

420HP Yellow Hydraulic Shantui Bulldozer for Construction Filed With ROPS Cabin

Features:
SD42-3 is one of the most powerful track-type bulldozers in China. Mainly used in large mine projects, the SD42-3 can be adapted to tough working conditions.

Main features:
● Single-hand, electronic-control gear shift and steering systems;
● Working device controlled by PPC proportional pilot valve;
● K suspension drifting travel system;
● Global intelligent service system;
● Central pressure measurement, central lubrication, and automatic track tensioning;

Specifications

ITEM 　UNIT SD42-3
L×W×H (Ripper not included) mm 9630×4315×3955 (Ripper included)
Operating weight (Ripper not included) t 53 (Ripper included)
Engine - Cummins KTA19-C525
Rated power kW/rpm 310/2000
Gradeability ° 30
Blade type - Semi-U blade
Blade width mm 4315×1875
Dozing capacity m3 16
Ma× drop below ground of blade mm 700
Lift height of blade mm 1545
Ripper type - Single ripper
Ripping depth of ripper mm 1400
Lifting height of ripper mm 1130
Number of carriers (each side) - 2
Number of track rollers (each side) - 7
Number of track shoes (each side) - 41
Width of track shoe mm 610
Track gauge mm 2260
Ground length and ground pressure mm/MPa 3560-0.123
Pitch mm 260.35
Forward speed km/h 0–3.7
0–6.8
0–12.2
Reverse speed
km/h		 0–4.4
0–8.2
0–14.8

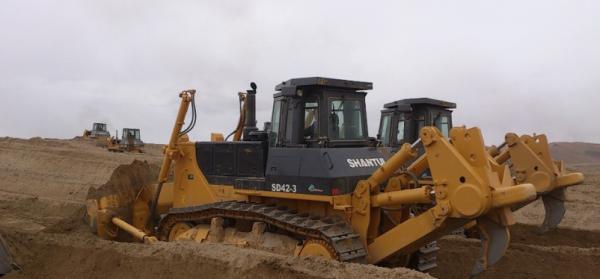

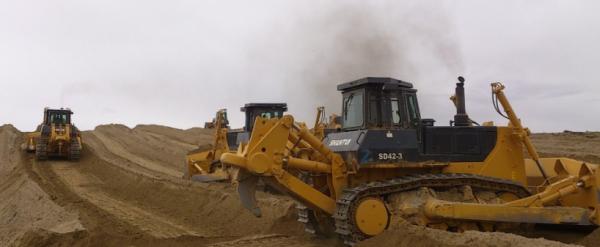

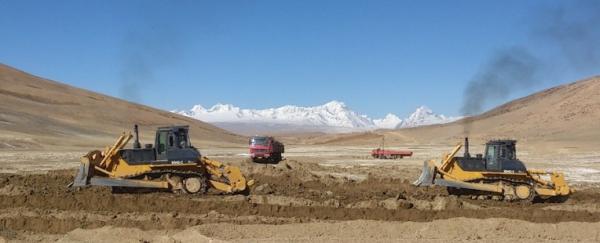

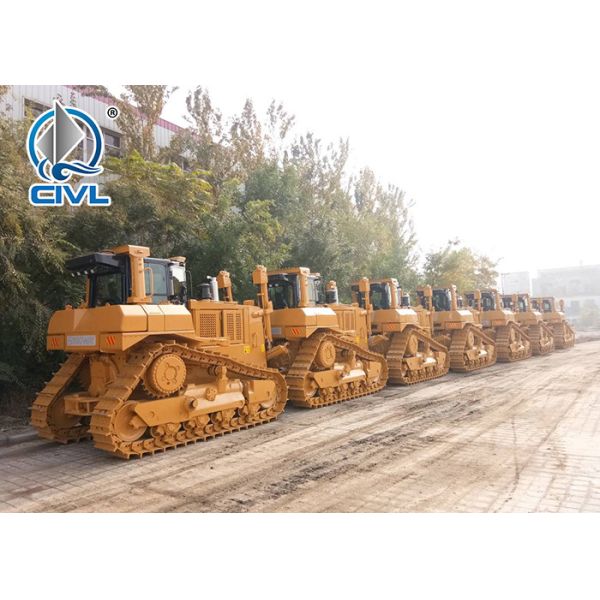

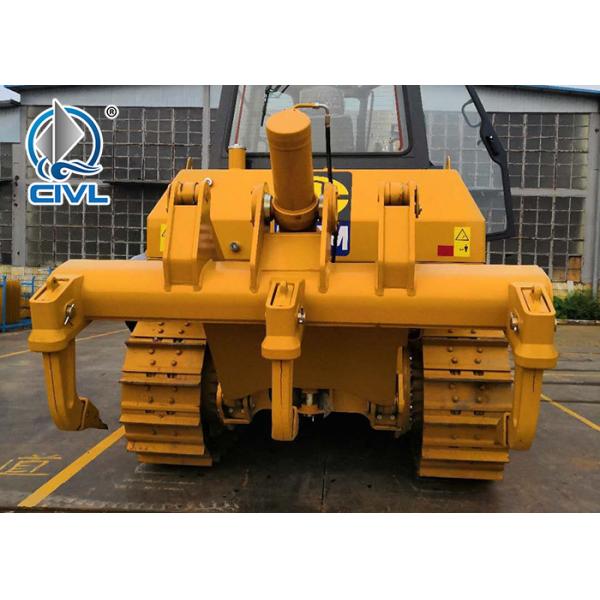

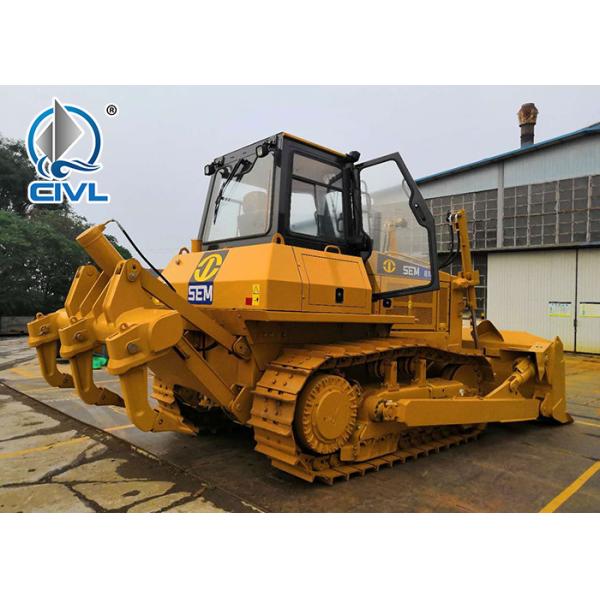

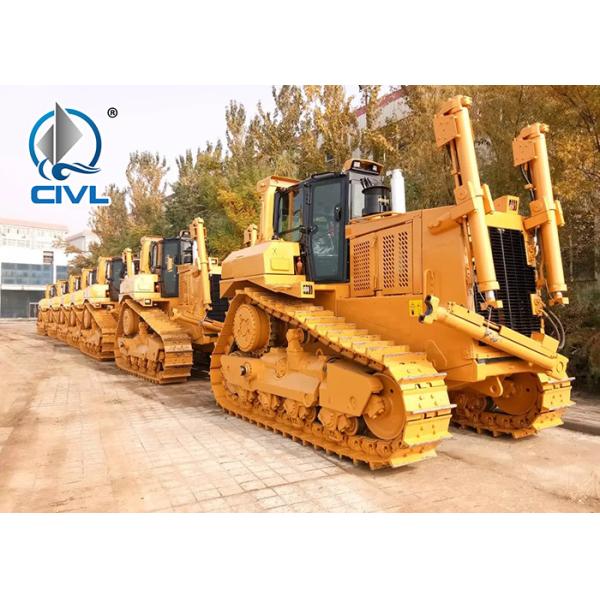

Photos

420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper420HP Yellow Hydraulic Shantui Bulldozer SD42, Operation Weight 53T With Cummins Engine, ROPS Cabin, Ripper

Other Construction machinery can be provide according to your request,

freely contact me for the informations and quotations.

Mrs. DORIN YANG
Job Title : General Manager
Business Phone : 008613210589366
VIBER : 86-13210589366
WhatsApp : 0086 13210589366
Skype : dorinyang
WeChat : 0086 13210589366
