Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition
Specifications
Brand Name :
HOWO
Model Number :
4X2
Certification :
ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Year
Delivery Time :
35-40 work days
Packaging Details :
In nude, marine anti-corrosion packaging
Brand :
HOWO
Condition :
New
Overall dimension(LxWxH)mm :
5970*2000*2900
wheel base(mm) :
3800mm
Drive system :
4x2
Gearbox :
6 speed
Description

Swing Arm Garbage Truck Refuse Collector Garbage Truck In Good Condition

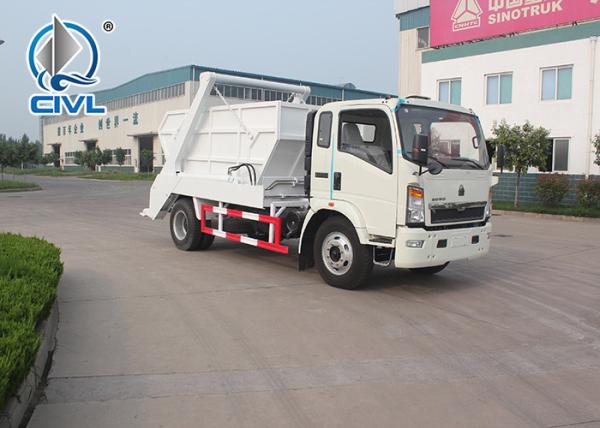

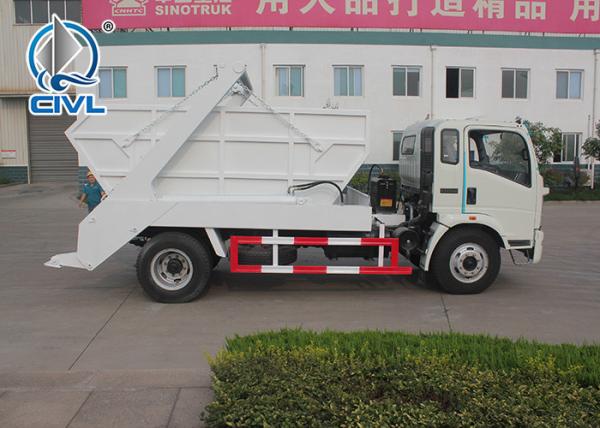

The swing arm container garbage truck can be used in urban erea and suburb.The container on the rear of the truck can be put down on the ground to gather garbage at a fixed location .when the container gathers full.the truck lift it on the flat bed on the rear of the truck.then dump the garbage in the garbage center.

Vehicle model CIVL5101BZLT3
Chassis parameter
Whole vehicle main dimensions Overall dimension(LxWxH)mm 5970*2000*2900
Drive system 4x2
wheel base(mm) 3800
Weight data curb weight(kg) 5300
GVW 10495
Whole vehicle main performance Max speed(km/h) 90
Engine Engine YC4E140--30
displacement 4260mL
Max output 105KW
Max torque/speed /
Gearbox gear box 6 speed
Rear axle 5.5Ton
Cabin Flat top ,with one berth
tyre size 6Nos8.25-16
Special parts parameter
Function Cargo capacity 6m3
Cargo type Square type(pit type) or ship shape(floor type),according to customer
Cargo thickness Side 3mm , bottom 4mm
Operation By hydraulic lifting assembly
Arm working cycle time 60S
