Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
Specifications
Brand Name :
Howo
Model Number :
QDZ5162ZYSZW
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T, L/C, T/T
Delivery Time :
35-40 work days
Packaging Details :
In nude
Supply Ability :
1000 Set/Sets per Month
Overall Dimensions(L×W×H)(mm) :
9000x2500x3349
Max. Speed (kg/h) :
90
Engine Model :
6J240-33(EURO Ⅲ)
Engine Output(KW/r/min) :
176
Body Volume( m3) :
16
Color :
Blue
Description

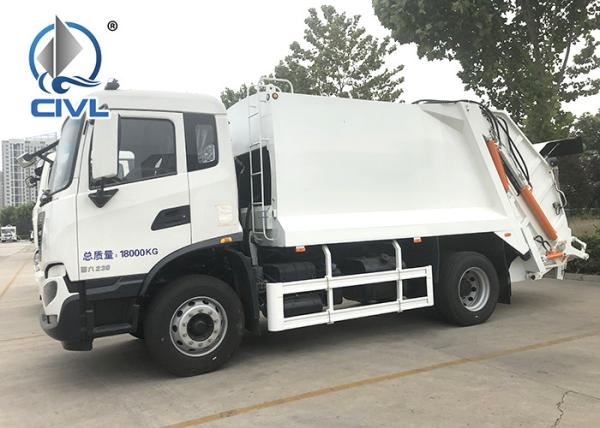

SINOTRUK HOWO 4x2 Compressed garbage truck/Refuse collector/Back-loaded compaction garbage handlers

Compressed garbage truck by sealed compartments, hydraulic system, the operating system.Vehicle is fully sealed type, compression, to dump all, compression in the process of sewage into the water, more thoroughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people, the key parts adopt imported components, high pressure, good sealing, convenient operation, safety, etc.Optional after hanging barrels flip mechanism or reverse garbage bucket.

Improve the driving comfort of the operation, can reduce the labor intensity of driving operation personnel.In order to improve the control performance, mechanical manipulation of the electronic control, and equipped with electronic monitoring system.

Model QDZ5162ZYSZW
Chassis Model CVZZ3164K4716C1/J1W7Y
Overall Dimensions(L×W×H)(mm) 9000x2500x3349
Pressure of Hydraulic System(MPa) 21
Kerb Mass(kg) 12655
Loading Mass(kg) 3215
Gross Vehicle Weight (kg) 16000
Max. Speed (kg/h) 90
Engine Model 6J240-33(EURO Ⅲ)
Engine Output(KW/r/min) 176
Body Volume( m3) 16
Filler Volume( m3) 2.5
Cycle Time of Filling(s) ≤30
Lifting Time of Filler(s) 8-10
Time of Discharging(s) ≤60
Front / Rear Sewage Tank volume(L) 750+420
Max.Compression Force(kg) >25000

Hydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truckHydraulic System 16m3 Garbage Compactor Truck HOWO 4 X 2 290 HP 6 Wheel garbage removal truck
