Specifications
Brand Name :
XCMG
Model Number :
GTBZ26S
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotiation
Supply Ability :
10000UNIT PER WEEK
Delivery Time :
35 WORK DAYS
Packaging Details :
pallet
fuel :
diesel
working height :
26m
model :
GTBZ26S
climbing ability :
40%
wheelbase :
3000mm
Max. working height :
27.9m
Description

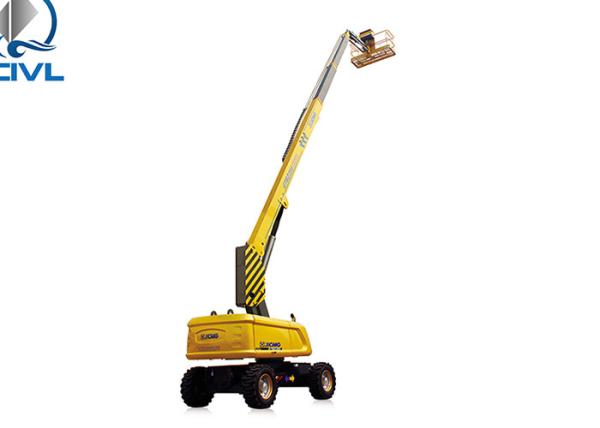

XCMG Official 26m straight arm aerial work platform telescopic aerial work platform GTBZ26S

GTBZ26S Straight Boom Type Aerial Work Platform

The straight boom aerial work platform at the elevation of 26 meters developed by XCMG is self-equipped with a small-sized fly jib, thus having a certain capacity in obstacle crossing, and being stretchable to any inaccessible position; the double-load control system may automatically adjust the operating radius as the loads may be, which will satisfy the different demands of the users on different loads. It is an ideal choice for users engaged in building construction, bridges, steel structures and installation & construction both inside and outside the venue.

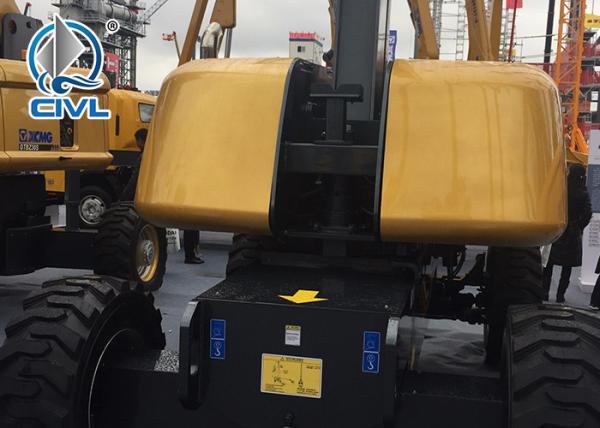

Details photo:

l 26m Straight Arm Aerial Work Platform Telescopic Aerial Work Platform GTBZ26S

l 26m Straight Arm Aerial Work Platform Telescopic Aerial Work Platform GTBZ26S

Main technical parameters:

Item Unit Parameter
a Overall Length mm 12100
b Overall Width mm 2490
c Overall Height mm 3050
d Wheel Base mm 3000
Maximum Working Height m 27.9
Maximum Platform Height m 26.2
Maximum Working Range m 23.2
Maximum Load Capacity kg 340
Boom Luffing Range ° -5~+75
Crank Arm Luffing Range ° -65~+70
Rotation Angle of Rotating Platform ° 360
Maximum Tail Wagging mm 1400
Platform Size mm

2400×900/

1800×800
Rotation Angle of Platform ° 180
Total Weight kg 16600
Maximum Travel Speed km/h 6.1
Minimum Turning Radius m 6.7
Minimum Ground Clearance mm 320
Maximum Grade Ability % 45
Tire Specification - 385/65-22.5
Engine Model - Foton CumminsQSF2.8-71HP
Rated Power of Engine kW/(r/min) 53/(2200)

Advantages:

Ability in Fast Access to the Construction Area

The boom driven by a single cylinder and the synchronously amplitude-varying and lifted stand column enhance the operating speed, and realize the fast access to the construction area, which will improve the construction efficiency.

Better Adaptability to Poor Construction Enviroment

The application of a lubrication-free shaft sleeve and slider relieves the friction between each hinge point for connection and inter-arm slider, thus resulting in better adaptability to welding and dusty enviromeent.

Advanced power system integration control

Electronic-controlled engine is adopted as the dynamical system, oil pressure, water temperature, rotating speed, sensor etc. are integrated by engine and controlled through ECU, which is safe and reliable. Meanwhile, there is a fault diagnosis interface as supporting for convenient of fault diagnosis and maintenance.

Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
