SINOTRUK HOWO7 10 Tires 50T Road Wrecker Tow Truck Recovery Truck 6x4 Tow Truck EuroII 371hp

Specifications

Brand Name :

CIVL

Model Number :

CIVL

Certification :

ISO,CCC

Place of Origin :

China

MOQ :

Payment Terms :

L/C, T/T

Supply Ability :

1000units/month

Delivery Time :

Within 35 days

Packaging Details :

nude

material :

q345

color :

option

warranty :

yes

spare parts :

option

logo :

option

condition :

new

brand :

Sinotruk howo7

Description

SINOTRUK HOWO7 10 Tires 50T Road Wrecker Truck Recovery Truck 6x4 Tow Truck EuroII 371hp

Specification:

Items		Unit	Value
Boom Structure	Rated lifting weight	kg	5745
	Max. Lifting weight of original place	kg	8000
	Max. Lifting weight of full extension boom	kg	4000
	Rated towing weight	kg	19000
	Max. Towing weight	kg	40000
	Effective length of boom	m	3560
	Extension traveling of boom	m	1700
	Folding angle of boom	°	90
Under lift Structure	Max. Rated hanging weight	kg	8000
	The height from hook to the ground	mm	5690
	Max. Extension traveling of lifting boom	mm	2800
	Rotation angle	°	34
	Rated pulling power of winch	kg	2×6000
	Length of steel cable	m	40
	Min. Speed of steel cable	m/min	7
Vehicle Parameters	External dimension	mm	8929×2500×3210
	Axle base	mm	5600
	Drive		4×2
	The whole weight of empty load	kg	13125
	Load of front axle of empty load	kg	6000
	Load of rear axle of empty load	kg	7125
	The whole weight of full load	kg	19000
	Load of front axle of full load	kg	6000
	Load of rear axle of full load	kg	13000
	Wheel base (front/rear axle)	mm	2022/1830
	Front suspension	mm	1500
	Rear suspension	mm	1109
	Approach angle	º	14
	Departure angle	º	18
	Min. Ground clearance	mm	260
	Min. Turning diameter	m	≤19.5
	Max. Speed	km/h	90
	Max. Grade ability	%	≥30
	Engine model	-	WD615.95
	Engine emission	L	9.726
	Power/Speed	kw/r/min	247/2200
	Max. Torque/Speed	n·m/r/min	1350/1100~1600
	Fuel type		Diesel
	Standard of emission		EN III
	Tire size		12.00-20
	Persons		2

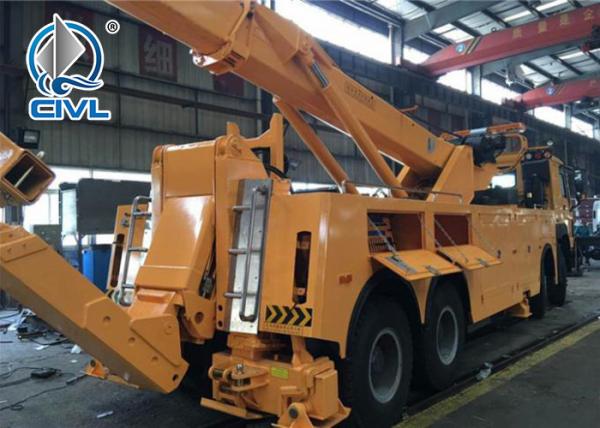

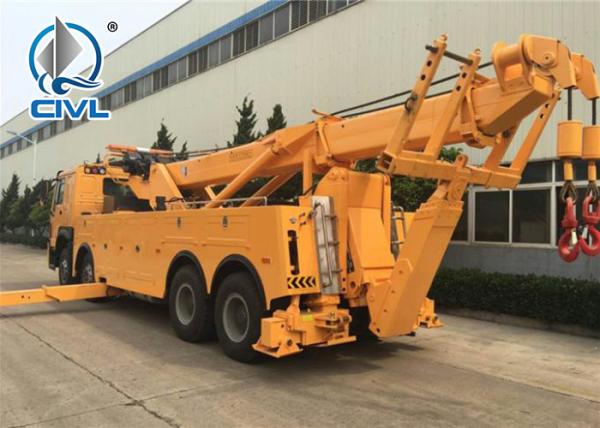

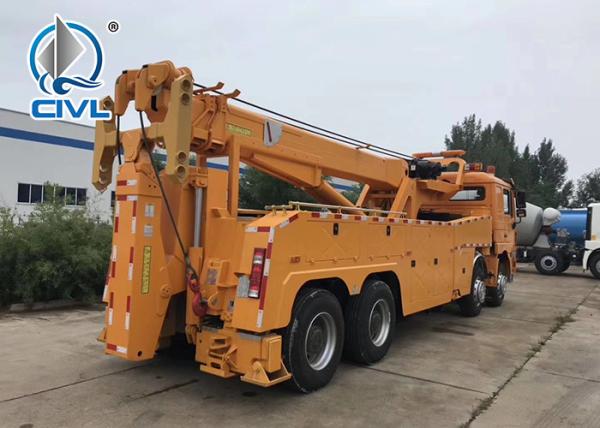

PHOTOS:
SINOTRUK HOWO7 10 Tires 50T Road Wrecker Tow Truck Recovery Truck 6x4 Tow Truck EuroII 371hp

Package&Shipping:
SINOTRUK HOWO7 10 Tires 50T Road Wrecker Tow Truck Recovery Truck 6x4 Tow Truck EuroII 371hp
Company Introduction:

SINO VEHICLE & EQUIPMENT COMPANY LTD

Name: SINOTRUK HOWO7 10 Tires 50T Road Wrecker Tow Truck Recovery Truck 6x4 Tow Truck EuroII 371hp
Brand: CIVL
Price: 1 USD

CIVL GROUP is committed to international trade and cooperation.

We are a package of solution providers for full sets of vehicles, construction machineries and auxiliary facilities.

With the help of the materials,equipments and vehicles needed for infrastructure,logistics and transportation as well as people's livelihood, We provide a complete set of services in pre-sale,in-sale and after-sale to our customers.

Service:
Pre-service:

Inquiry and Consulting support.
Sample testing support.
View our factory.
Design various solutions as buyer's requirement.

After-sale service:

Training how to use and maintain the truck.
Our engineers supply the support of technology.
12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
Parts supply on time.
24 hours service and technology support.

Customers' use and feedback

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
