Garbage / Oil / Water Wrecker Truck / 6x4 Tow Truck 5 Tons To 50 Tons
Garbage / Oil / Water Wrecker Truck / 6x4 Tow Truck 5 Tons To 50 Tons
Garbage / Oil / Water Wrecker Truck / 6x4 Tow Truck 5 Tons To 50 Tons
Garbage / Oil / Water Wrecker Truck / 6x4 Tow Truck 5 Tons To 50 Tons
Garbage / Oil / Water Wrecker Truck / 6x4 Tow Truck 5 Tons To 50 Tons
Garbage / Oil / Water Wrecker Truck / 6x4 Tow Truck 5 Tons To 50 Tons
Specifications
Place of Origin :
China
Brand Name :
CIVL
Certification :
ISO,CCC
Model Number :
CIVL
MOQ :
1
Price :
Negotiable
Packaging Details :
Nude
Delivery Time :
Within 35 days
Payment Terms :
LC/TT etc
Supply Ability :
100 units per week
Description

Garbage / Oil / Water Wrecker Truck / 6x4 Tow Truck 5 Tons To 50 Tons

Description:

SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.

Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.

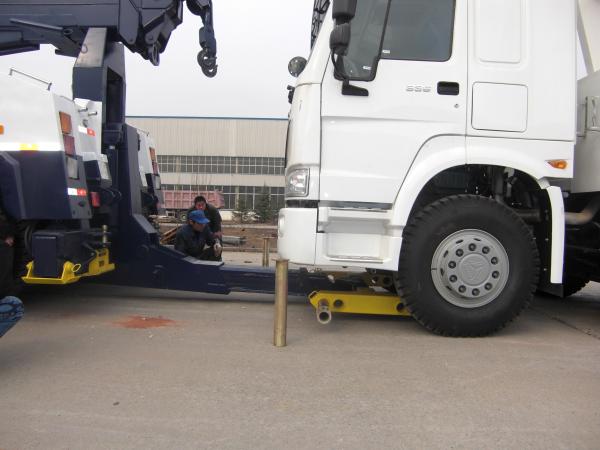

Detailed Parameter of SINOTRUK Road Wrecker Truck / 6x4 Tow Truck

dorinyang@road-machine.com

Skype:dorinyang

Whatsapp/viber/Messenger No.:0086-18678785501

Entire Vehicle Main Parameter Gross Weight(kg) 25000
Total Weight(kg) 19150

Overall Dimension

(L * W * H) (mm)

 9480*2498*3370
Chassis Chassis Mode ZZ1256M4646C
Engine Parameter Mode WD615.93E
Power(kw) 213
Displacemint (ml) 9726
Fuel Type Diesel
Functional Parameter Max Speed(km/h) 90

F/R

Tread

(mm)

1939/

1800/

1800, 1

958/

1830/

1830,
Leaf Spring 9/12,10/12,10/-

F/R

Overhang

(mm)

1560/

1970
Axle Load(kg) 7000/18000

Approach/

Departure

Angle(°)

 15/19
Tire Size 12.00-20

Number of

Tires

 10

Wheelbase

(mm)

 4325+1350

Number of

Axles

 3
Specialized Device Hoisting Structure

Max Hoisting

Capacity(kg)

 16000

Max Hoisting

Height(mm)

 5000

Telescopic

Length of Arm(mm)

 3530

Rated Pulling Capacity

of Winch(kg)

 10000
Length of Wirerope(m) 40
Lifting Structure Effective Length of Bracket(mm) 3100
Rated Lifting Capacity(kg) 6000

Max Lifting Capacity of Fully

Extended Bracket(kg)

 3500
Rated Pulling Capacity(kg) 25000~40000
