Specifications
Place of Origin :
CHINA CNHTC
Brand Name :
SINOTRUK HOWO
Certification :
ISO 9001-2000
Model Number :
ST5381
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
nude
Delivery Time :
Within 20-30 days after the receipt of the deposit
Payment Terms :
T/T, L/C
Supply Ability :
100 units per week
Brand :
HOWO
Color :
Customizable
Fuel Type :
Diesel
Payload :
5 ton
Product Name :
Wrecker Tow Truck
Transmission Type :
Manual
Description

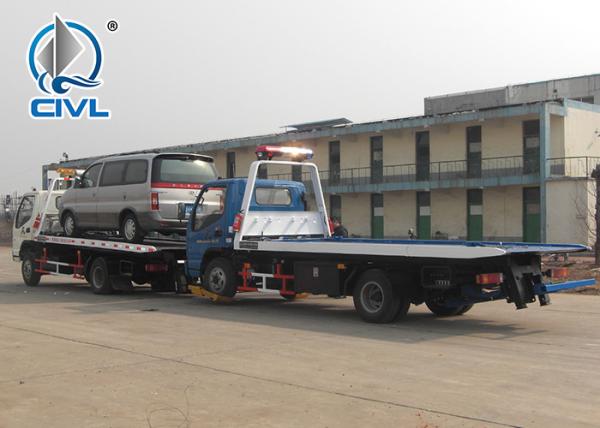

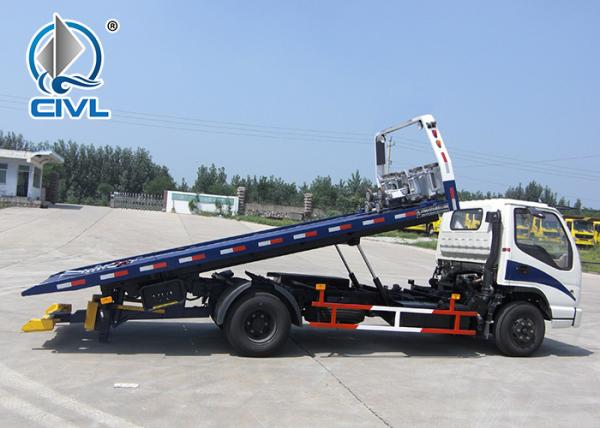

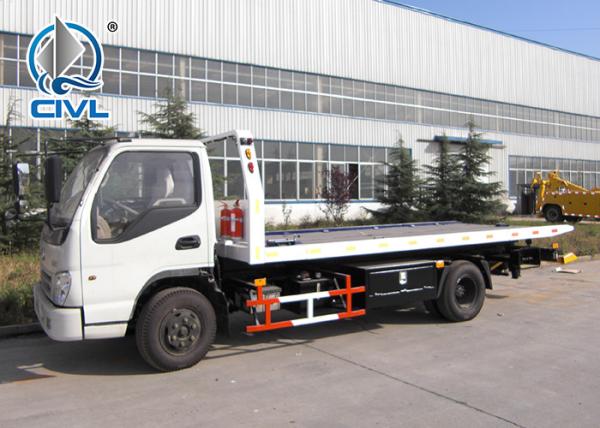

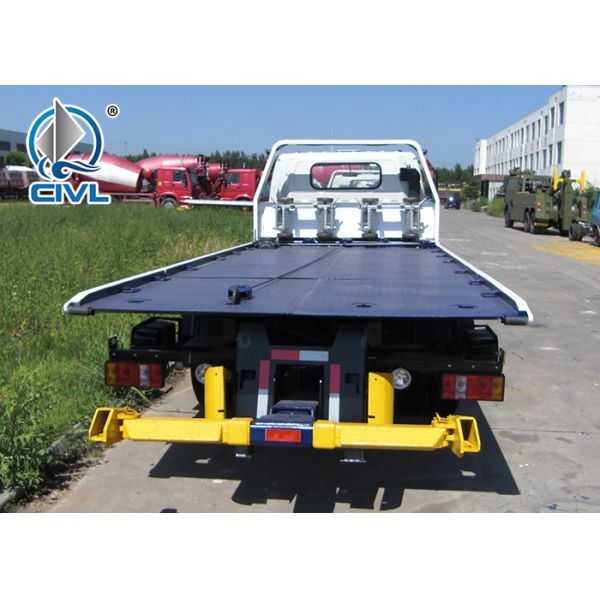

5 Ton Flatbed Tow Truck In White ,Howo Obstacle Heavy Duty Tow Trucks Flatbed Wrecker Carrier Road Rescue Vehicle

Based on the technology from Miller and AATAC in America and TRUK in Britain, we designed and produced the Wrecker Truck Carrier 3T3P.The carrier is mainly made up of Sub-frame/Inner Body/Flatbed Assembly/Under lift and Hydraulic Winch, etc. And all these parts are hydraulically operated completely. It can do such work as carrying, dragging and winding by the actions of elevation, extension, tilting and folding controlled by hydraulic system .With the joint of all kinds of working accessories, it can deal with different kinds of failure vehicles, such as common car, microbus. And owing to the function of carrying and pulling simultaneous, it can deal with two vehicles at the same time, which largely improved the efficiency. The key parts, such as Sub-frame, Inner Body, Flatbed and Under Lift, are all made up with high strength jointing steel. Hydraulic pressure organs come from famous brand.

Description:

1. The road wrecker truck is applied American technology, with strong practicability and good price. The sales volume is increasing fast in recent years.

2. Our road wrecker trucks are divided into several series, platform road removal,mini ones,and heavy ones. They have adopted world advanced technology and cater for many world clients from American, African, Europe etc.

3. Main parts of the vehicle like underlift and booms are adopted HG70 high strength wielding steel.

5 Ton Flatbed Tow Truck In White Howo Obstacle Heavy Duty Tow Trucks Flatbed Wrecker Carrier Road Rescue Vehicle

Specifications:

Wrecker Model ST5061TQZKP ST5062TQZKP
Chassis Model BJ1069VCJEA-D BJ1063VCJFA-1
Out Dimension(L×W×H)mm 7390×2200×2610 7390×2200×2610
Wheel Base mm 3800 3800
No. of Tires 6 6
Specification of Tire 7.50-16 7.50-16,8.25-16
Approach Angle/Departure Angle 22°/10° 22°/10°
Front Overhang/Rear Overhang mm 1120/2470 1120/2470
Total Mass kg 6495 6495
Reorganize and outfit quality kg 5100 5400
Platform Platform Dimension mm 5450×2200 5450×2200
Extension Stroke mm 3100 3100
Carrying Mass kg 3000 3000
Min. Inclination Angle(folded) 8° 8°
Under-lift Max. lifting mass kg 1500 1600
Rating lifting mass fully extended kg 1100 1200
Max. Effective Length mm 1705 1705
Extension Stroke mm 1200 1200
Range of Inclination Angle -8°～10° -8°～10°
Rating Towing Mass kg 6000 6000
Rating Pulling Mass of Winch KN 40 40
Length of Cable Wire m 20 20

Advantages:

(1). Ensure the intensity and strength of these.

(2). Decreasing the curb weight so that reduce the fuel consumption.

5 Ton Flatbed Tow Truck In White Howo Obstacle Heavy Duty Tow Trucks Flatbed Wrecker Carrier Road Rescue Vehicle
