8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
Specifications
Brand Name :
Sinotruk
Model Number :
CIVL-Sewage suction truck
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000 units per month
Delivery Time :
25-35 work days
Packaging Details :
Nude
truck type :
sewage suction truck
drive way :
4x4
tank volume :
10cbm
pump :
Italy brand
pipe :
3" or 4" or 5"
flow meter :
yes
Description

290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck 8 ton

Description:

4*4 Sewage Suction Tanker is mounted with 4*4 truck chassis, is mainly used for sewage suction, transportation and discharge of sewage from septic tand and sludge from drains. It can be used to transport waste water, liquid sewage. It have strong off-cross performance, very suitable for driving on mountain area or country-side road.

Basic equipment: PTO, Vacuum Pump, High Pressure Pump,hydraulic sprayer, Hydraulic Cylinders,Multi-way valve, Pressure Gauge,Water-gas Seperator , Oil-gas Seperator, Level Inspection Window, Suction Hose, Hose Real,inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valveFecal suction gun, etc

Main Features: self-priming, self-discharging, high pressure flushing, high efficiency,Time for full suction<5min

Tanks material optional:carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).

Specification:

Product Model SINOTRUK 4*4 Sewage Suction Tanker Overall Dimension(L*W*H)(mm) 8480×2500×3250
Wheelbase(mm) 4600 Fact volume(L) 8000
Curb weight(kg) 10150 Number of Axles 2
Actual Payload(kg) 9000 Approach/ departure angle (° ) 16/14
Steering Type LHD with Power steering Max Speed (km/h) 90
Cab capacity 3 Cab Type Single sleeper, air conditioning
Chassis Parameter
Chassis Model ZZ1167 Chassis manufacturer CNHTC
Gear Box HOWO 10 shift Transmission type Manual
Truck axle STR 16 ton Traction Type 4*4
Brake System Air brake Leaf Spring number 10/9+6
Number of Tire 6 with a spare Tire size/type 12.00-20 16PR,12.00R20 16PR
Engine Parameter
Engine Model

WD615.87

 Engine manufacturer CNHTC
Fuel type diesel Displacement(ml) 9726
Emission stand Euro 2 Power(kw) 213(290hp)
Operation System Electrically Hydraulic Control Electric system 24V
Equipment & Performance & Features 1. Sewage tank is equipped with 8T vacuum pump ,rear gravity mouth , inspect fecal window, Pressure gauge, hand-washing device
2. Sewage Tank material: 5mm carbon steel
3. With dump function, rear door is controlled by hydraulic
Warranty 12 months, from the date of supply

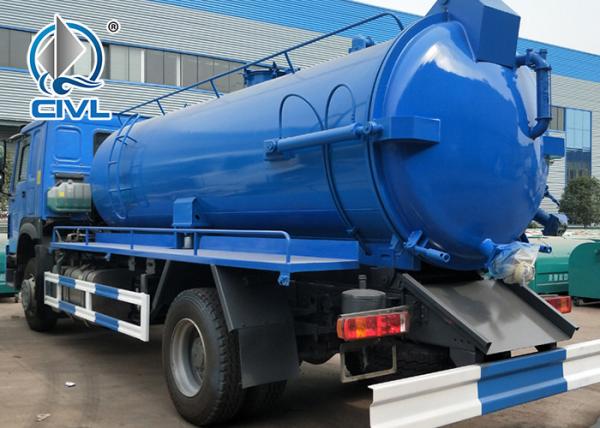

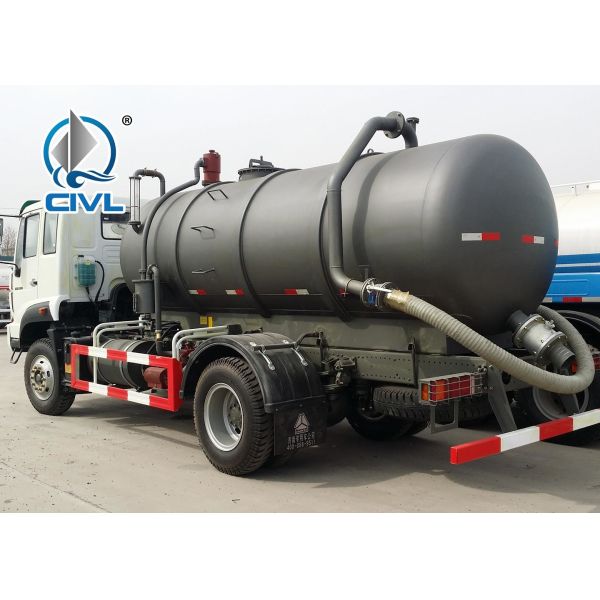

Detailed photo:

8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck

8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck8 Ton Liquid Tanker Truck , 290hp Euro 3 SINOTRUK HOWO 4*4 Sewage Suction Tanker Truck
