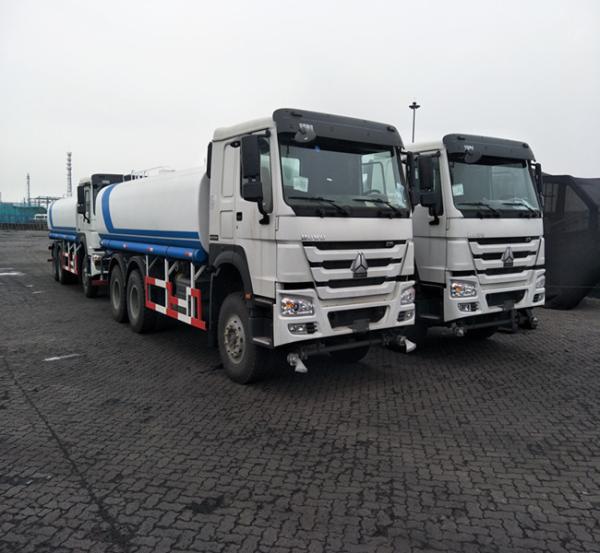

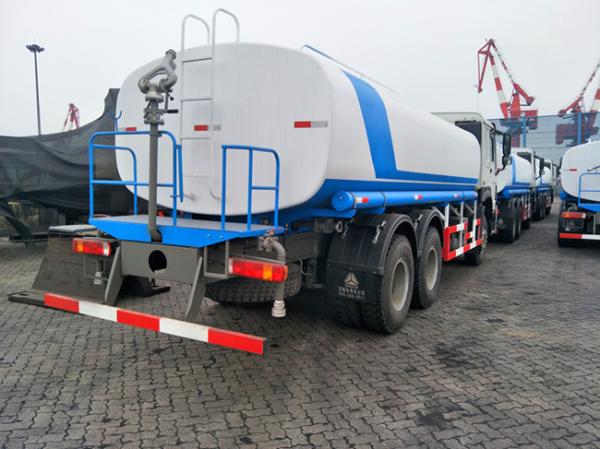

15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
Specifications
Brand Name :
Howo
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per Month water truck
Delivery Time :
Within 35 days
Packaging Details :
In nude
Brand :
Howo
Rear axle :
HW1279
Front axle :
HF7
Color :
White
Tyre :
295/80R22.5 tubeless tyres 10+1spare
Tank Volume :
1500L
Description

Howo 15m3 6x4 Powerful Water Tank Truck Water Truck Dimensions

1.SINOTRUK tank truck 6x4

2. Engine: WD615.69, EURO II emission standard

3.15000 liters tank mounted on the chassis.

4.High quality and competitive price

5.Best afetr-sales

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.

Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.

Delivery Details: 15-35 days after receiving 30% deposit

Product Description

Truck Brand SINOTRUK-HOWO
Color Optional
Dimension(Lx W xH)(unloaded)(mm) 10350×2496×3048
Tank Volume(L)

15000L

Tank body(thickness):6mm,material: Q235Bhigh tensile strength steel; sprinkling equipment both in front and in rear; special anti-corrosion treatment
Approaching angle/Departure angle(°) 16/12
Overhang(front/rear) (mm) 1500/2900
Wheel base (mm) 4600+1350
Max speed(km/h) 75
Curb weight(kg) 11360
Total Weight(kg) 25000

Engine

( technology, made in China)

 Model WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
Fuel type Diesel
Power, max(kw/rpm) 336HP
Emission EURO II
Fuel tanker capacity (L) 350
Transmission Model HW13710CL,10 forward&2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Steering system Model ZF8098
Front axle

HF7

Loading weight:7000kg
Rear axle

HW1279

Loading weight:12000kg
Tyre 295/80R22.5 tubeless tyres 10+1spare
Manhole cover Equipped one man allowed entering
Discharging pipe 2”rubber hose, 2 pcs, 6m long
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab HOWO76 standard cab, one sleeper with air-conditioner ,all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color

15m3 6x4 Powerful Water Tank Truck Dimensions10350×2496×3048 1500L,White Color
