sinotruk howo 7995kgs 116hp engine 4x2 6 speeds 5m3 water bowser truck
Product features:
1. High power special spraying pump, using international advanced technology, which is convenient and easy to use, larger than the similar spraying pump pressure, ceiling distance, long service life, overcoming other sprinkling pump susceptible to debris entangled, small pressure, water absorbent slow shortcomings.
2. Red (spray) after the spill, with side jet, the tank with a work platform, platform mounted on Greening sprinkler gun, sprinkler gun can omnibearing rotation, continuous tune into a straight shape, rain, rain, drizzle rain.
3 the effective physical volume of the tank, a long time, no need to frequently add water, high efficiency.
4 electricity, liquid, gas centralized control, the whole has a good man-machine interface, convenient and flexible operation, the driver can be in the driver's room to complete the operation of various actions, safe and comfortable operation.
5 tank welding all use of carbon dioxide gas to protect the automatic welding, welding quality is reliable, beautiful appearance. The section shape of the tank body is elliptical, impact resistance and long service life.
6 the top of the tank open manhole. The manhole can be used as tank maintenance workers in import and export, but also can be used as a water hole to fill the tank with.
Specification:
sinotruk howo 116hp 4x2 5m3 water truck | |
Truck Model | ZZ1087D3814C180 |
Dimension(Lx W xH)(unloaded)(mm) | 6995x2150x2450 mm |
Approaching angle/Departure angle(°) | 20/18 |
Overhang(front/rear) (mm) | 1160/2035 |
Wheel base (mm) | 3800 |
Max speed(km/h) | 95 |
Curb weight(kg) | 2830 |
Gross Vehicle Weight(kg) | 7995 |
water tank body | Tank volume:5000 L Carbon steel material,Q235B. tank body 4mm,end plate 4mm; |
Equipment | Frong jection,back sprinkling,high pressure water gun,outlet under pressure,hose,etc |
Engine | Yunnei 4102, 116hp |
Gear box | WLY6T46, 6forwards & 1reverse |
Brake system | Parking brake:Spring energy,compressed air operating on rear wheels |
Front axle/Rear axle | 2.4/7.2 |
Tyre | 7.50R16 |
Electrical system | 24v |
Cab | 1880 single cabin. |

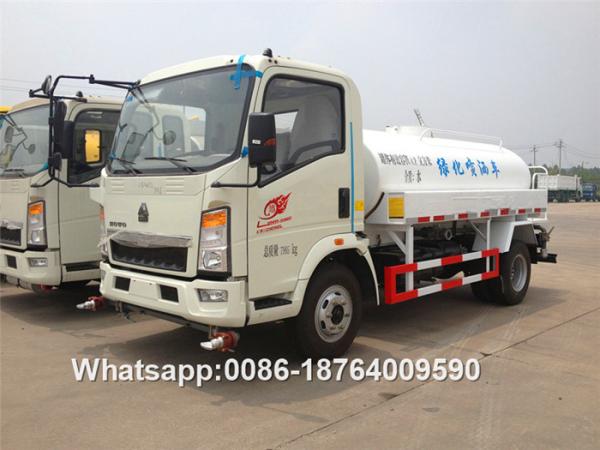

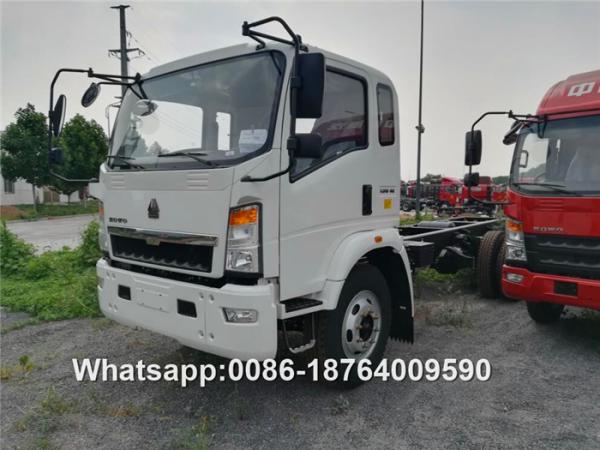

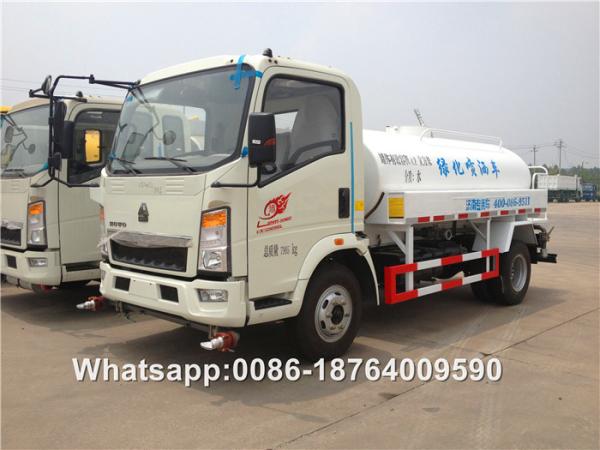

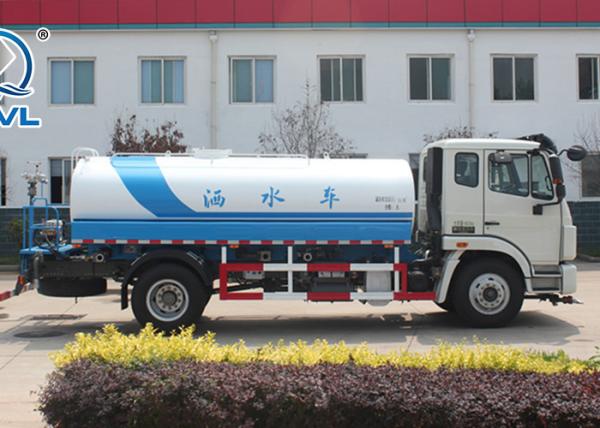

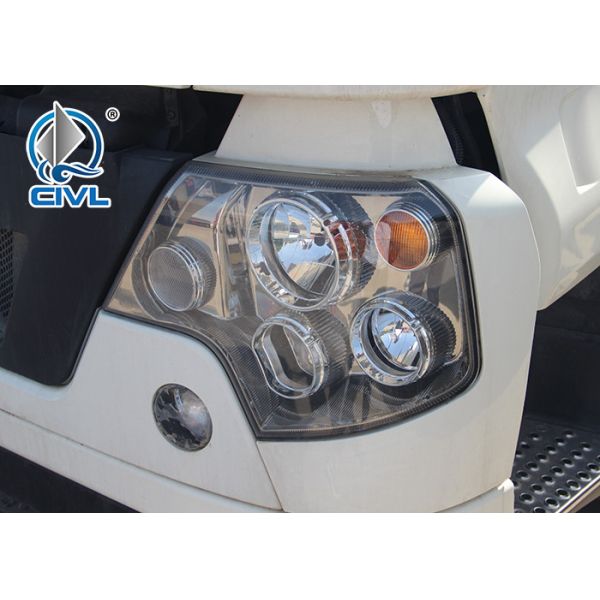

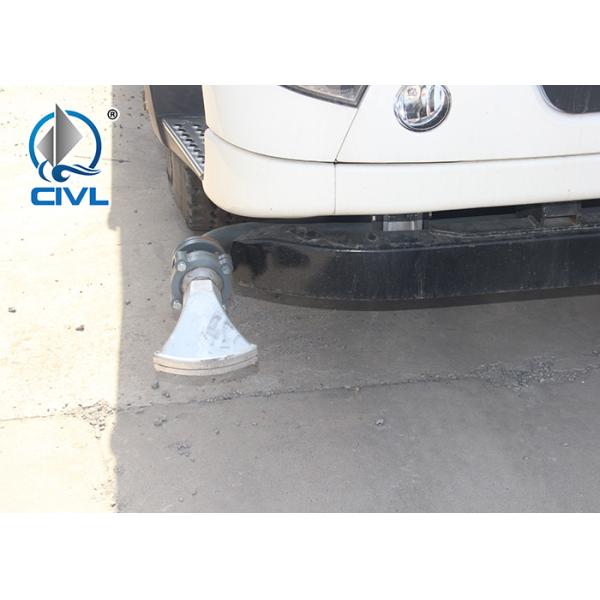

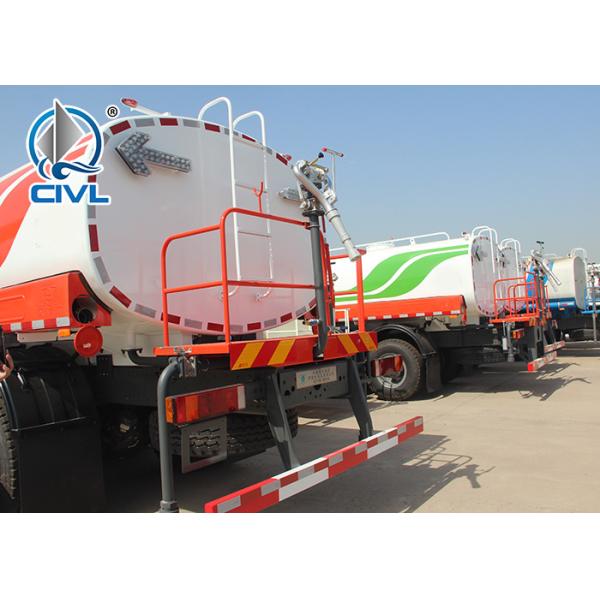

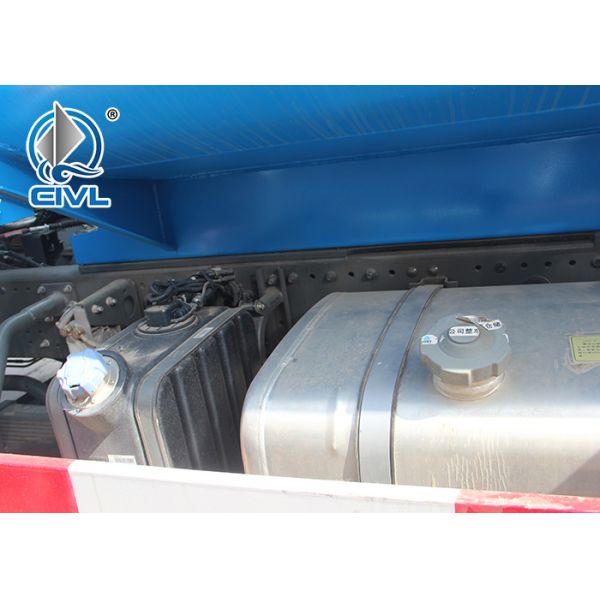

Details photo:
Packing & Shipping Advantage:
1. Package can be different according to the customers' requirement: in nude, or by SKD (semi knock down), or by CKD(totally knock down). After vehicles arrive in destination, we will send the assembly guidance to assure the quality, if it is necessary, we will send our technicien to help you assemble vehicle.
2. Having the professional team for loading trucks in container by the most economic loading method. (3 units per 40 HQ at most)
3.Cooperating with most of the international shipping company to assure vehicles arrive in the destination successfully with the lowest freight cost.
