SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters
Specifications
Brand Name :
SINOTRUK
Model Number :
Tanker truck
Certification :
ISO CCC
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 units per day
Delivery Time :
25-35 work days
Packaging Details :
Nude
Tanker volumn :
10,000L
Drive way :
4x2
Fuel Type :
Diesel
Steering :
RHD/LHD
Tire :
12.00R20
Emission :
Euro Ⅱ
Description

SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters

Description:

SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters

Warranty
Guarantee the main parts engine, gearbox and axles for one year or within 100,000 Kilometers (which comes first) under regular maintenance and correct operation.

After Sale Support
Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.

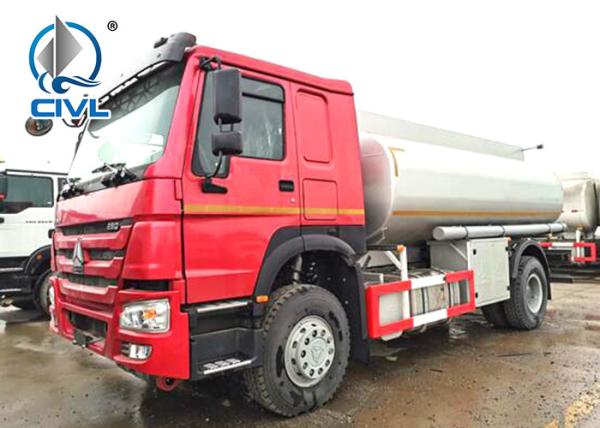

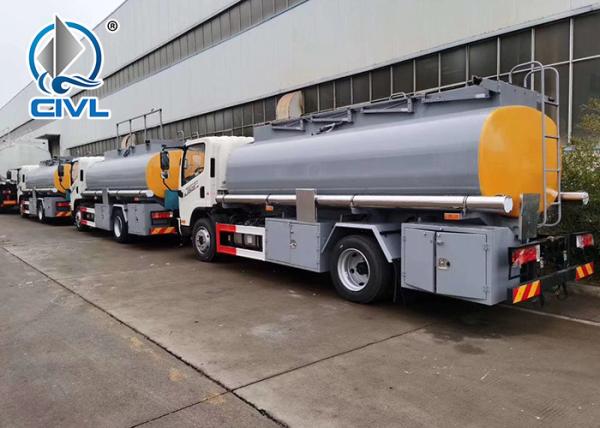

Details photo:

SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 LitersSINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters

Specification:

Specifications for HOWO Water Tanker Truck 10,000 Liters
Cabin
Driving Model: 4x2 Left Hand Drive or Right Hand Drive
HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Condition: brand new
Engine
Model: SINOTRUK WD615.62
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.
Emission Standard: Euro II
Displacement: 9.726L
Transmission
HW13710 manual gearbox, 10F & 2R
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle
HF7, 1x7000 KGS
Steering with doubleT-cross section beam
Rear Axle
MCY13, 1x13000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.11
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires
315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires
Fuel Tank
350 L
Tank Body

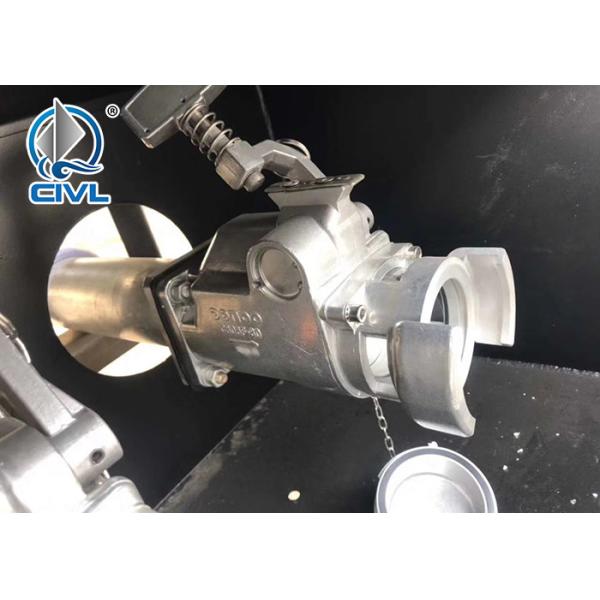

10 Cubic Meters, Euro Standard Valves
Overall Dimension
8300*2500*3050 mm

Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
Delivery:

PACKING AND SHIPPING

All the truck, semi trailer and spare parts will be polished with wax before shipping, and suitable shipping way will be according to the truck type and destination port to choose.

For truck and semi trailer,There are three shipping ways can be choose, RORO, BULK CARGO VESSEL & FLAT RACK CONTAINER,

40 HQ Container suit for flatbed & cargo semi trailer and spare parts only, Please kindly check the pictures as below, Thanks

SINOTRUK HOWO Euro Ⅱ Diesel Engine 4x2 Oil Tanker Truck 10,000 Liters

FOR SALE:
TIPPER TRUCK ;TANKER TRUCK ;MIXER TRUCK;TRACTOR TRUCK ;CARGO TRUCK.....ETC
ROLLOER ;LOADER;EXCAVATOR ;TRUCK CRANE ...ETC
LOWBED ;TANK ;BULK CEMENT ;CONTAINER ;FLATBED TRAILER ....ETC
SPARE PARTS ;TIRE ...ETC

Website:http://www.road-machine.com/
http://www.china-sinotruck.com/
