Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO
Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO
Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO
Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO
Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO
Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets / every month
Delivery Time :
Within 35 days
Packaging Details :
IN NUDE
Axle load :
6500/7000/17500
Max. drive speed (km/h) :
110
Tyre nos :
12
Steering model :
Steering wheel
Description

The Low density powder material truck's main characteristic as the following

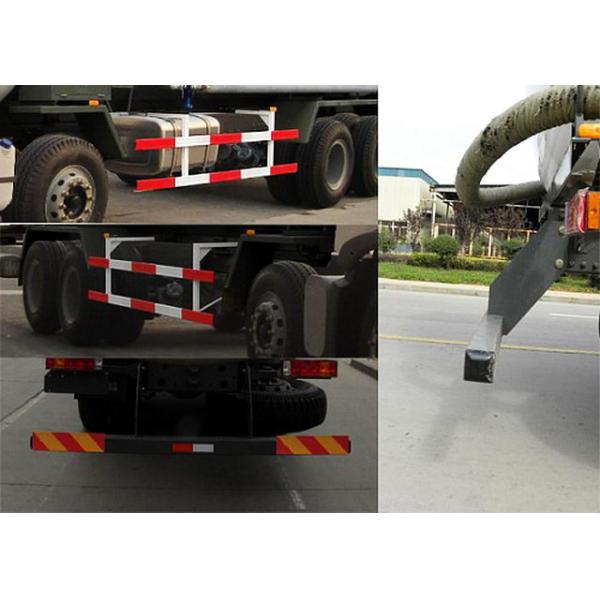

Effective volume of tank: 38.5 cubic meters, tanks overall length: 9600 mm, straight segment of length: 8760 mm, and tank diameter: 2490 mm, transport medium for: polyethylene powder, medium density is: 400 kg/m3. Side and bottom side protective device made of Q235A, connections are bolted connection, after the section size of the lower protective device for (width x height) : 100 mm * 100 mm, and height is 500 mm from the ground. ABS system models for 4460046300, options sun shade, ordinary cab. Installation running recorder with satellite positioning functions.

Vehicle name Low density powder material truck
Vehicle type Special vehicle
Vehicle model SHMC5317GFLD
Engine model MC07.31-40 Engine power 228
MC07.34-40 248
Engine displacement 6870 Engine manufacturers SINOTRUK
6870
Overall dimensions(L/W/H) 11990*2496*3870 Type of fuel Diesel
Total weight(Kg) 31000 Front passenger(person) 2
Curb weight(kg) 16160 Permitted capacity 14710
Approach/Departure angle 10;22 Front/Rear overhang 1430/2810
1430/2760
Wheelbase(mm) 1800+4600+1350 Axle load 6500/7000/17500
1800+4575+1400
Axle nos 4 Max. drive speed (km/h) 110
fuel consumption 40.7,41.2 Spring nos 3/3/4,3/3/5,3/3/10,3/3/-,11/11/10
Tyre nos 12 Tyre specification

10.00-20,10.00R20,11.00-20,11.00R20,12R22.5,

295/80R22.5
Front wheel track 2015/2015,2035/2035 Rear wheel track 1830/1830
Steering model Steering wheel
Chassis standard GB17691-2005EURO IV ,GB3847-2005
Chassis standard LZZ1BXNF******

Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO

tank car, watering cart, sprinkler,sprinkler truck ,water spraying,water tank truck, water tank lorry, tank water, tanker, tank truck, tank apparatus, water tanker,fuel tank car,oil tank truck,tank truck ,tanker,oil tank truck, oil tanker, refuel truck, refuelling truck,oil truck,fuel truck,petrol tanker, fuel vehicle, fuelling vehicle, fuel tanker truck,fuel-transportvehicles
