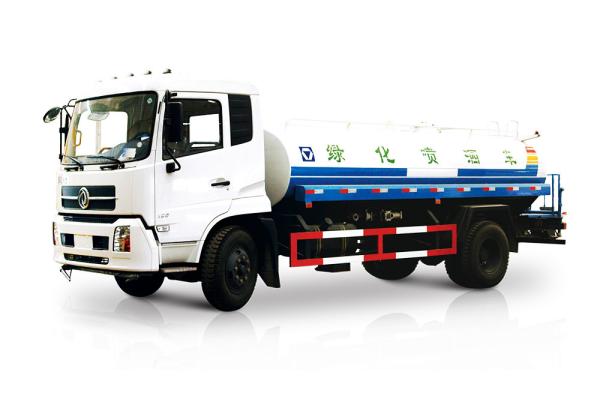

Green sprinkler is a kind of mainly used for urban road surface cleaning, trees, green belts, green grass, irrigation, high altitude construction of the sanitation vehicle washing. With water, dust, low spray, pesticide spraying, barrier flushing and other functions, but also with water supply, drainage, fire fighting, water supply and other organs of the body function. Overall appearance, mature technology, cost-effective, safe and reliable, easy to drive, is the road, garden, fire department, the first choice of new products.
Product features:
1. High power special spraying pump, using international advanced technology, which is convenient and easy to use, larger than the similar spraying pump pressure, ceiling distance, long service life, overcoming other sprinkling pump susceptible to debris entangled, small pressure, water absorbent slow shortcomings.
2. Red (spray) after the spill, with side jet, the tank with a work platform, platform mounted on Greening sprinkler gun, sprinkler gun can omnibearing rotation, continuous tune into a straight shape, rain, rain, drizzle rain.
3 the effective physical volume of the tank, a long time, no need to frequently add water, high efficiency.
4 electricity, liquid, gas centralized control, the whole has a good man-machine interface, convenient and flexible operation, the driver can be in the driver's room to complete the operation of various actions, safe and comfortable operation.
5 tank welding all use of carbon dioxide gas to protect the automatic welding, welding quality is reliable, beautiful appearance. The section shape of the tank body is elliptical, impact resistance and long service life.
6 the top of the tank open manhole. The manhole can be used as tank maintenance workers in import and export, but also can be used as a water hole to fill the tank with.
Item | Unit | |
Product model | - | XZJ5161PSD4 |
Chassis model | - | Dfl1160bx53 |
Tank shape | - | oval |
Dimensions | mm | 8780*2420*2950 |
Tank volume | cbm | 11.1 |
Wheelbase | mm | 4700 |
Kerb mass | kg | 7205 |
Loading quality | kg | 8600 |
Total quality | kg | 16000 |
Max speed | Km/h | 90 |
Approach/departure | ° | 16/10 |
Max suction height | m | 6.5 |
Head | m | ≥30 |
Clean/flushing water pressure | kPa | 250~450 |
Sprinkling width | m | 16 |
Sprinkling quantity | L/sq.m | 0.2~2 |
Sprinkling ways | Front spray Rear sprinkling Side spray gun |
