Oil Tank Truck ,Effective volume of tank 12.3 cubic meters,6 wheel
The Fuelling tank 's main characteristic as the following

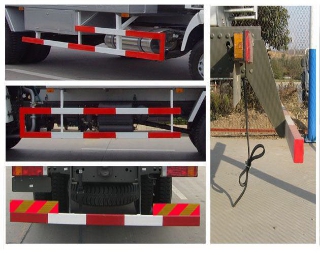

Effective volume of tank: 12.3 cubic meters, the shape of tank size (length x length short axis x axis) (mm) : 5750 * 2000 * 2000, medium: gasoline, medium density: 700 kg/m3. Side and bottom side protective device made of Q235A, connections are bolted connection, after the section size of the lower protective device for (width x height) : 50 mm * 100 mm, and height from the ground is: 500 mm.
Vehicle name | Fuelling tank | ||
Vehicle type | Special vehicle | ||
Vehicle model | SHMC5160GJYC | ||
Engine model | YC6J190-30 | Engine power | 140 |
YC6J190-33 | 140 | ||
YC4E160-33 | 118 | ||
YC4E160-30 | 118 | ||
Engine displacement | 6500 | Engine manufacturers | Guangxi yuchai machinery co., LTD |
6494 | |||
4260 | |||
4260 | |||
Overall dimensions(L/W/H) | 8270*2495*2940 | Type of fuel | Diesel |
Total weight(Kg) | 15930 | Payload capacity | 3 |
Curb weight(kg) | 7600 | Permitted capacity | 8200 |
Spring nos | 11/10+10,4/3+2,11/10+8,12/10+8,11/9+6,12/9+6 | Front passenger(person) | 2 |
Approach/Departure angle | 24.5/13.5 | Front/Rear overhang | 1260/2310 |
Wheelbase(mm) | 4700 | Axle load | 5950/9980 |
Axle nos | 2 | Max. drive speed (km/h) | 80 |
Tyre nos | 6 | Tyre specification | 10.00-20 18PR,10.00R20 18PR,9.00R20 16PR |
Front wheel track | 2020 | Rear wheel track | 18,501,860 |
Steering model | Steering wheel | ||
Chassis standard | GB17691-2005 EURO 3,GB3847-2005 | ||
Identification code | LZZMBBGF****** LZZMBBFF***** |
