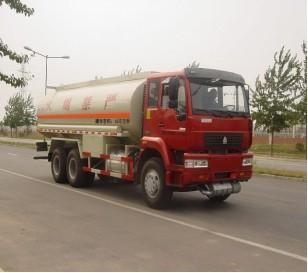

Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets every month
Delivery Time :
Within 35 days
Packaging Details :
IN NUDE
Type of fuel :
Diesel
Total weight(Kg) :
22700
Front/Rear overhang :
1320/2330
Axle load :
6190/16510
Description

Refueling truck ;Effective volume of tank: 16 cubic meters color optional

The refueling truck 's main parameters as below

Effective volume of tank: 16 cubic meters, the shape of tank size (length x length short axis x axis) (mm) : 6600 * 2290 * 2290, medium: gasoline, medium density: 700 kg/m3.Side and bottom side protective device made of Q235A, connections are bolted connection, after the section size of the lower protective device for (width x height) : 100 mm * 100 mm, and height from the ground is: 500 mm.The product with the chassis optional mask before the new bridge.This product adoption of China national heavy duty truck group co., LTD. Production of WD615.97 C and WD615.97 E type engine.Installed with the chassis ABS, which has the function of satellite positioning running recorder.Only choose chassis radial tyre, before belting leather disc brake.

Vehicle name Refueling truck
Vehicle type Special vehicle
Vehicle model SHMC5230GJY
Overall dimensions(L/W/H) 9350*2490*3070 Type of fuel Diesel
Total weight(Kg) 22700 Payload capacity 3
Curb weight(kg) 11900 Permitted capacity 10670
Spring nos 12/12,10/12,4/-,10/- Front passenger(person) 2
Approach/Departure angle 12;16 Front/Rear overhang 1320/2330
Wheelbase(mm) 4350+1350 Axle load 6190/16510
Axle nos 3 Max. drive speed (km/h) 80
Tyre nos 10 Tyre specification 11.00-20 18PR,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR
Front wheel track 19,952,047 Rear wheel track 1820/1820,1850/1850
Steering model Steering wheel
Chassis standard GB17691-2005EURO 3 ,GB3847-2005
Identification code LZZABLMF××××××××× LZZABLNF×××××××××

Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker

tank car, watering cart, sprinkler,sprinkler truck ,water spraying

water tank truck, water tank lorry, tank water, tanker, tank truck, tank apparatus, water tanker
fuel tank car,oil tank truck,tank truck ,tanker,oil tank truck, oil tanker, refuel truck, refuelling truck,oil truck,fuel truck,petrol tanker, fuel vehicle, fuelling vehicle, fuel tanker truck,fuel-transportvehicles
