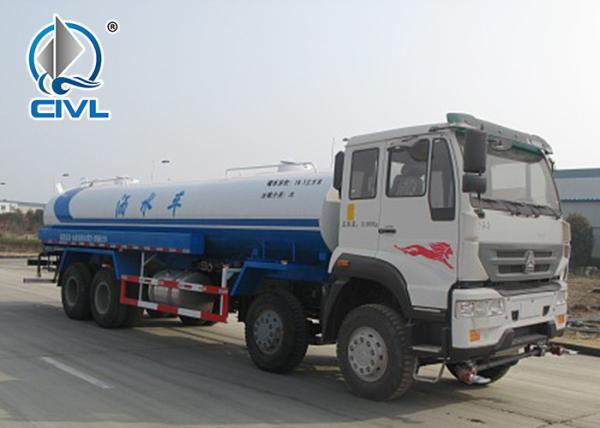

8x4 Howo Water Tank Truck New 32000l Water Tank Truck Sprinkler Truck
Description:
A water tanker is a special vehicle used to transport water.
Tank vehicles are widely used in sanitation, oil transportation, and chemical product transportation.
Sprinkler, also known as sprinkler or multifunctional green sprinkler. It is used in urban roads, large factories, troops, gardens and other units to clean the road surface, sanitation, dustproof, watering, spraying pesticides, etc., to achieve the effect of beautifying the environment. At the same time, it can be used for temporary emergency fire sprinkler.
Detailed specification
Chassis Performance | Curb weight :kg | 12500 | ||
Total capacity : kg | 31000 | |||
Rated load : kg | 19500 | |||
wheel track front/rear : mm | 2015/1830 | |||
Approach/departure angle: ° | 19/14 | |||
Wheelbase: mm | 1800+4600+1350 | |||
Max driving speed: km/h | 110 | |||
Cabin | Width | 2500mm | ||
Passengers | 3 | |||
WITH A/C | YES | |||
Engine | Type | WD615 Euro II 6 cylinders,vertical in line,watercooling ,Turbocahrger | ||
Displacement: L | 9.726 | |||
Fuel | Diesel | |||
Rated power/roation : kW/rpm | 273/2200 ; 371hp | |||
Max torque : Nm | 1500 | |||
Tire | type | 12.00R20 | ||
No.s | 12+1 | |||
Transmission | Type | HW19710,Synchronous,Main and auxiliary box, main box double auxiliary shaft, auxiliary box planetary reduction. | ||
Speed and ratio | 10 speed forward & 2 reverse; 14.284, 10.623,7.871,5.876, 4.375, 3.265,2.428, 1.799,1.343 R1: 13.913, R2: 3.18 | |||
Axle | Front axle | 9000kg*2, drum | ||
Rear axle | double reduction, 16000kg*2, drum | |||
Oil Tank | Type | 400L iron | ||
Braking system | Drive brake | exhaust,air assistance | ||
Auxiliary brake | Engine exhaust brake | |||
Emergency and parking brake | hydraulic, drum | |||
32,000L water tank truck | Material | carbon steel | ||
Body | with pump | |||
Type | square | |||
Thickness of body | 5mm, seal 6mm | |||
With oilmeter | YES |
Photos:
