SINOTRUK HOWO Liquid Tanker Truck 6x4 290hp Water Tank Truck 15m3 10 tires
SINOTRUK HOWO Liquid Tanker Truck 6x4 290hp Water Tank Truck 15m3 10 tires
SINOTRUK HOWO Liquid Tanker Truck 6x4 290hp Water Tank Truck 15m3 10 tires
SINOTRUK HOWO Liquid Tanker Truck 6x4 290hp Water Tank Truck 15m3 10 tires
SINOTRUK HOWO Liquid Tanker Truck 6x4 290hp Water Tank Truck 15m3 10 tires
SINOTRUK HOWO Liquid Tanker Truck 6x4 290hp Water Tank Truck 15m3 10 tires
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
200units/week
Delivery Time :
Within 35 days
Packaging Details :
nude
color :
option
warranty :
1year
condtion :
new
tire :
10pcs +1 spare
Description

SINOTRUK HOWO water truck Ellipse water tanker Tanker shape sinotruk 290hp water tank trucknk trucks

SINOTRUK HOWO Liquid Tanker Truck 6x4 290hp Water Tank Truck 15m3 10 tires

Model Name Sinotruk HOWO 6x4 water truck
Driving Type 6*4,left hand drive
Weights
Payload (kg) 30000
Curb weight(kg) 11970
Dimensions
Wheelbase(mm) 4325+1350
Overall Dimension(mm) 9320*2496*3200
Water tanker size 20000L
Max speed(km/h) 90
Engine
Engine model WD615.92 (266HP)
Engine type Diesel 4-storke, Inter-cooling,water-cooling,turbo-charging
No. of cylinders straight-6 cylinders
Displacement(L) 9.726L
Max. output (kw) 196kw/2200rpm
MaxTorque(N*m)/Rev(r/min)

1100/1100-1600
Drive Line
Transmission

Model:HW13710,

Speed range:10 forwards, 2 reverse gear,manual operation
Steering ZF8098 Power steering
Brake system Service braking,dual circuit compressed air brake;Parking brake(hand brake);spring energy air cut brake.ratio:5.73
Cab
Cab HW76
Standard configuration Air container,oil pressure gauge, air pressure,fule level indicator,battery charge indicator,Temperature indicator ,,thermometer, Hopper drive switch for operation and so on
Axle
Front axle HF7(7tons)
Rear axle HCY13
Tire specification
Tire specification 12.00-20 standard tire
Tire quality

10 tires+1 spare tire
Box information
Water tanker material Of high quality carbon steel (Q235)
Introduction

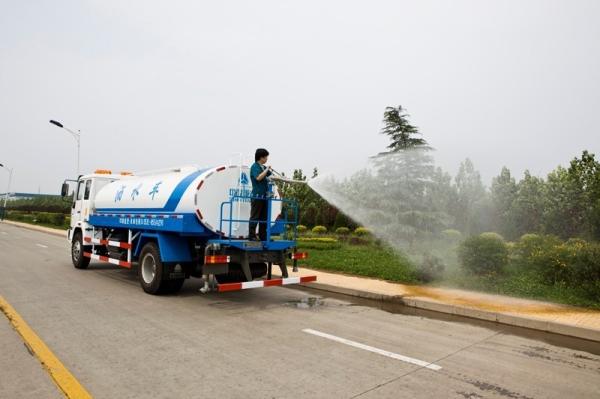

1. Suction≥7m Sprinkler width≥14m Range≥28m

2. with front spout, back spill and side spout function

3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)

4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
Sprinkling area(m)
»14m Vertical suction »7m
Watering pressure
250-450Mpa Pump style Self-priming centrifugal pump
Manhole Man way access hole on top of tank;1 units DN500mm manhole
Front spray function Front spray bar with fan sprayer on both sides, spray range: »28m
Man walk way

With skid resistance man walk way on top of tank
Horse reels Two 75 ft hose reels at each side of the truck
Water pump

Water pump model: CLW80QZF-60/90N (N/S)

Water pump flow rate(L/m): 60m3/h

Head of delivery(m): 90m

Self-priming function(min/4m):1.56

Efficiency(%):95%

Related rotate speed(r/min)1180

matched power(kw):22
Other
Electric system VDO electric system ,24V,negative grouped
Tool

Standard equipment
