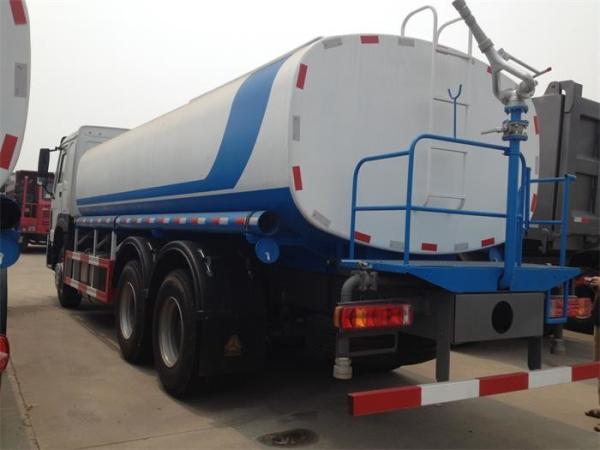

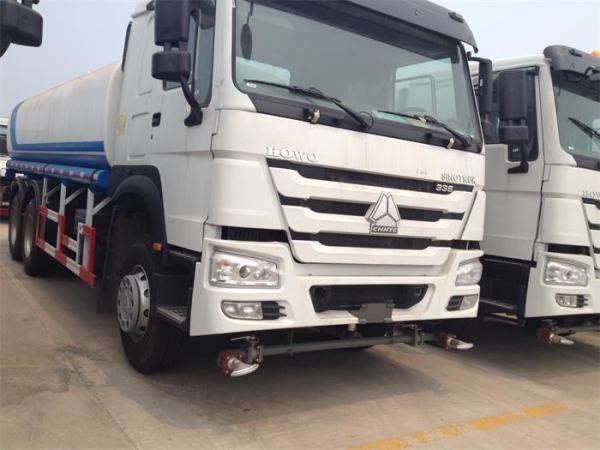

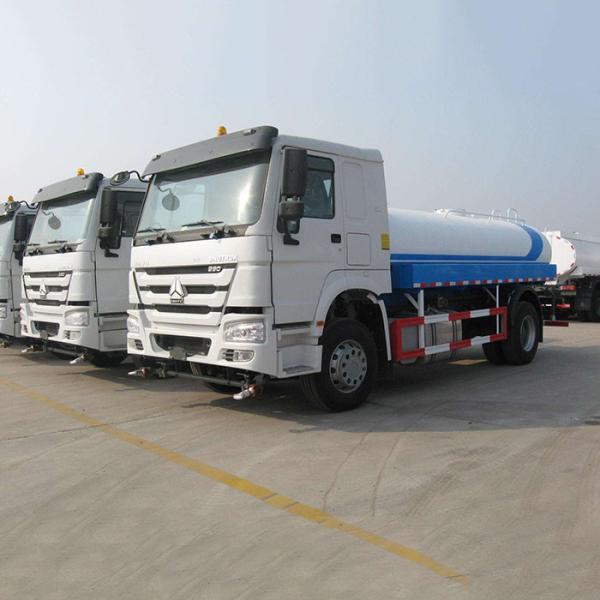

10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
200units/month
Delivery Time :
Within 35 days
Packaging Details :
nude
material :
Q235
warranty :
1year
color :
option
Description
Main Specification
Total Weight(Kg) 25000 Drive Mode 6x4
Rated Payload(Kg) 7000 Steering Position Left Hand Drive
Curb Weight(Kg) 11360 Overall Dimensions(mm) 10350×2496×3048
Wheelbase(mm) 4600+1350 Cab Seats (men) 2
APP / DEP Angle(°) 16/12 Overhang(Front/Rear) (mm) 1500 / 2900
Maximum Speed(Km/h) 75
Tank Specification
Tanker Volume(CBM) 20 Fuel Tanker Capacity (L) 350
Tank body(thickness) 5mm Material Carbon Steel Sheet Q235-A
Sprinkling Equipment Both in front and in rear; special anti-corrosion treatment
Chassis Specification
Chassis Model ZZ1257M4647C Manufacturer China National Heavy Duty Truck
Brand HOWO Number of Axles 3
Tire Specification 12.00R-20 Tires No. 10 pcs+1 Spare
Brake System Service Brake With Tyre 12.00-20 10 pcs+1 Spare
Front Axle HF7 Disc Brake Rear axle ST16 axle with 13 ton load per axle
Transmission Model HW13710 Gear Box Nos 10 Forward & 2 Reverse
Steering System Model ZF8098 Alternator 28V-1500kw
Electrical System Battery 2X12V/165Ah Starter 7.5Kw/24V
Color Custom Dual Circuit Compressed Air Brake With
Remark Cab HOWO76 standard cab, one sleeper with air-conditioner, all-steel forward control, 55ºhydraulically tiltable to the front,2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Engine Specification
Engine model WD615.97C Displacement(mL) 9726
Power(KW) 221 Engine Manufacturer China National Heavy Duty Truck
Fuel Type Diesel Emission standard Euro 3
Technology technology, made in China

Type10 wheels Sinotruk Howo LHD 15 ~ 20 KL Liquid Tanker Truck For Water Transport
www.road-machine.com
www.china-sinotruck.com

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts

Water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
