Specifications
Brand Name :
XCMG
Model Number :
ZL50GN
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1unit
Payment Terms :
LC, TT
Supply Ability :
100units per month
Delivery Time :
30 days after receive order
Packaging Details :
nude
Model NO. :
CVZL50GN
Type :
Medium-sized Loader
Load and Unload Method :
Front Discharge
Rated Loading Capacity :
5ton
Operating Weight :
17500 Kg
Rated Power :
162kw
Lxwxh :
8110X3000X3485
Dumping Reach :
1130mm
Engine Model :
Wd615g.220
Color :
yellow
Description

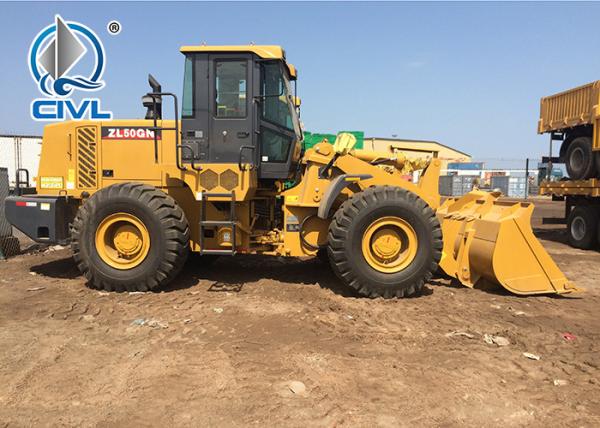

Wheel Loader Zl50gn/5ton XCMG Wheel Loader , loading 3m3 5000kgs bucket volume, Weichai engine

5 ton Popular XCMG Wheel Loader ZL50GN Feature:

1. Fully hydraulic poered steering with flow-amplified system, pilot operated control for loader hydraulic system, power shift and electric shift optional transmission makes convenient and flexible operating.
2. new z-bar linkage, high breakout force, short hydraulic cycle time, automatic leveling on any position, and higher prductivity.
3. Special quadrat type transmission shaft of construction machinery. Power transmission is more reliable.

4. Integral new luxury cab, excellent visibility, safty and reliability.
5. Eg-TM combination is supported on three points by dual directions, vibration-isolators. Reducing resonance and fatigue failure of structure.
6. Optimized structure of diesel engine air intake system reduces dust into air filter, prolonging the durability of the engine and conveniencing the service of air filter element. Optimized cooling system drops overall heat balance temperature.

7. Integral openable hood made of compound material reduces noise and vibration, and makes operation and service more convenient and flexible.
8. Equipped with Shangchai engine, which is of electric starting, electric stopping and excellent performance and reliability.
9. Optional: CE certificate


5 ton Popular Wheel Loader ZL50GN

Specification:


Category
Items
Value

Description
Unit
PARAMETER

Bucket capacity
m3
3.0

Rated load
kg
5000

Dumping clearance
mm
3090

Dumping reach
mm
1130

Max. breakout force
kN
170

LxWxH
mm
8110x3000x3485

Operating weight
kg
17500

Raising time
s
6

Total cycling time
s
11

Max drawing force
KN
145

Articulated angle
%
35

Min. truning radius
mm
6400

Clime ability
%
28

wheel base
mm
3300

Tread
mm
2200

Travelling speed
km/h
11.5/16.5 1st(F/R)

Travelling speed
km/h
37 2nd(F)

Engine model
WD615G.220

Rated power/speed
kW/r/min
162/2200
