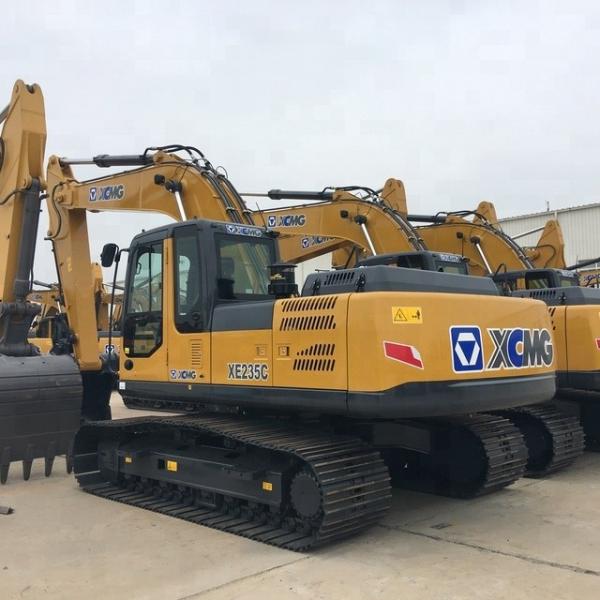

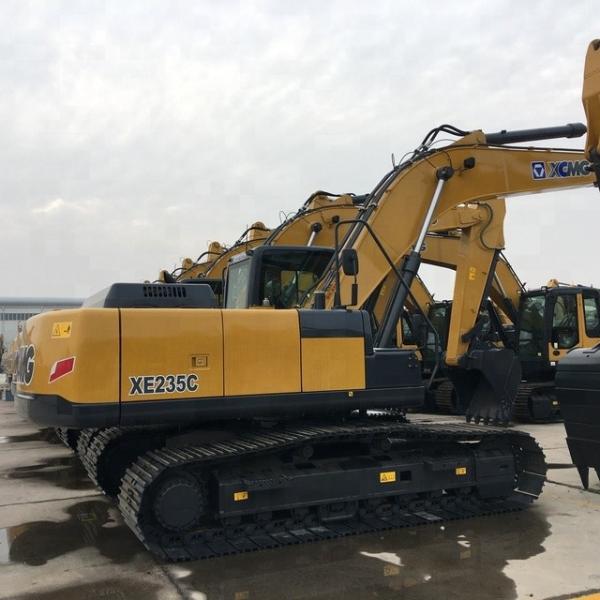

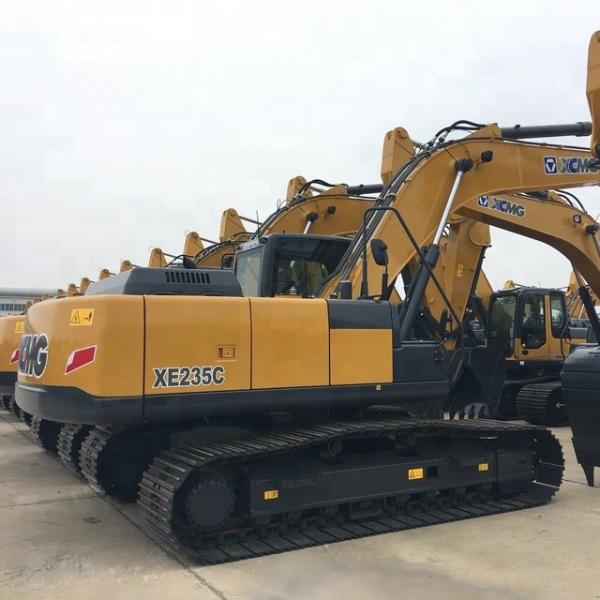

XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
200 Unit/Units per Month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Operating Weight :
23500kg
Condition :
New
Machine Weight :
23500kg
Moving Type :
Crawler Excavator
Description
XCMG XE235C 23TON Crawler Excavator Hydraulic Excavator with 1 m3 bucket capacity
Packaging & Delivery

Packaging Details

Nude packing

Port

Shanghai port/Qingdao port

XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity

Unit Parameters
Model Operating weight kg 23500
Bucket capacity m³ 1.0-1.1
Engine Engine model / CC-6BG1TRP
Cylinders / 6
Output power of engine Kw/rpm 128.5/2100
Max.torque/engine N.m/rpm 637/1800
Displacement L 6.494
Mian pertormance Travel speed km/h 6.0/4.0
Slewing speed r/min 12.1
Gradient capability ° ≤35°
Max.traction kN 194.8
Hydraulic system Main pump / Tow plunger pumps
Rated flow of main pump L/min 2×246
Pressure of main safety valve Mpa 34.3/37
Pressure of traveling system Mpa 34.3
Pressure of swing system Mpa 25
Pressure of pilot system Mpa 3.9
Oil volume Fuel tank capacity L 400
Hydraulic tank capacity L 240
Engine oil volum L 25
Dimensions A Overall length mm 10160
B Overall width mm 2990
C Overall heigth mm 3100
D Width of rotary table mm 2830
E Length of track mm 4255
B Max.unloading height mm 6725
C Max.digging depth mm 6960
D Digging depth at the range of 8feets horizontally mm 6750
E Max.vertical digging depth mm 6090
F Max.digging radius mm 10240
G Max.swing height mm 3850
Standard configuration Boom length mm 6000
Length of bucket rod mm 2960
Bucket capacity m³ 1
Optional Length of bucket rod mm 2500
Bucket capacity m³ 1.1

XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity

XCMG XE235C Hydraulic Crawler Excavator 23 Ton With 1 M3 Bucket Capacity
