CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
Specifications
Brand Name :
CIVL
Model Number :
CIVL LG856h
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 units/week
Delivery Time :
Within 25 days
Packaging Details :
In nude
Working weight of the whole machine :
17200kg
Standard bucket capacity :
1.8-5.6m3
Dimension(long * breadth * high) :
8253*2750*3450mm
Condition :
New
Engine :
Cumminus
Maximum traction :
161KN
Operating weight :
5000KG
Rated power :
162KW(217hp)
Product name :
LG856h Wheel Loader
Unloading height :
3100mm
Unloading distance :
1126mm
Maximum steering angle :
38±1(°)
Description

CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine

Description:

Wheel Loader is a kind of earth and stone construction machinery

It widely used in highway, railway, construction, hydropower, port, mine and other construction projects.

It is mainly used to shovel bulk materials such as soil, sand, lime, coal, etc. , hard soil, etc. for light shovel excavation.

It can also carry out bulldozing, lifting and loading and unloading of other materials such as wood by changing different auxiliary working devices.

Specification:

Dimension Rated load : kg 17100
Wheel track front/rear : mm 1175/1065
Wheel tread: mm 2150
Overall dimension LxWxH: mm 8253*2750*3450
Wheelbase: mm 3320
Ground clearance mm 431
Turning radius,outside of tire mm 6205
Turning radius,center of tire mm 5896
Turning radius,bucket carry mm 6914
Engine Make Cummins
Model 6LT9.3
Gross Power 162KW(217hp)@2200 rpm
Displacement 9.3L
Cylinder no. 6
Aspiration Turbocharged
Transmission Type Planetary type, power shift
Torque converter Double-stage, four-element
Max. travel speed, fwd 39.7km/h
Max. travel speed, rev 16.3km/h
Speed no. 2 forward & 1 rear
Loader arm performance Tipping load-straight 12500kg
Tipping load- full turn 10800kg
Bucket breakout force 173KN
Max dump angle at full height 45°
Max hinge pin height 4159mm
Max digging depth, bucket level 40mm
Bucket rollback at ground level 44°
Bucket rollback at carry 49°
Bucket rollback at max height 58.5°
Bucket Reference bucket 3m3
Tire Size 23.5-25
Fuel tank 300L

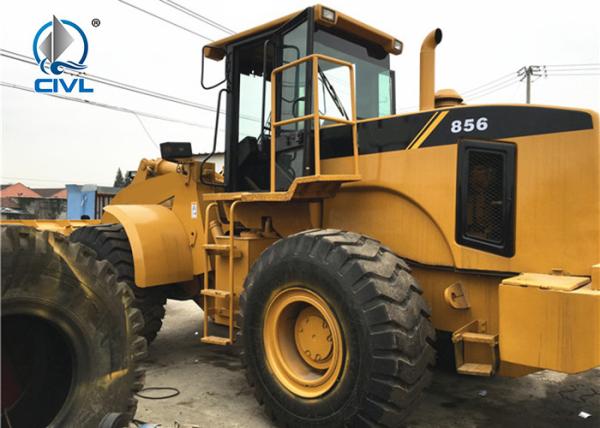

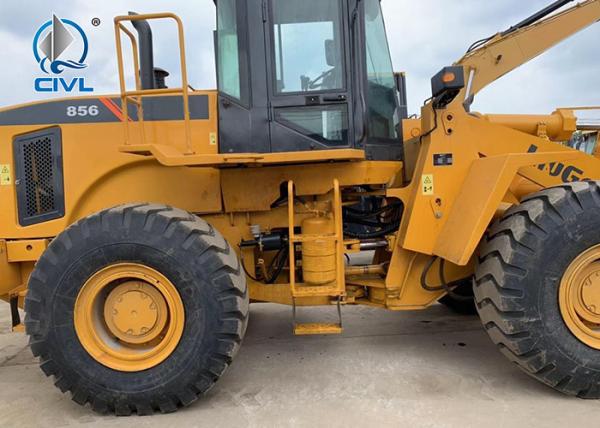

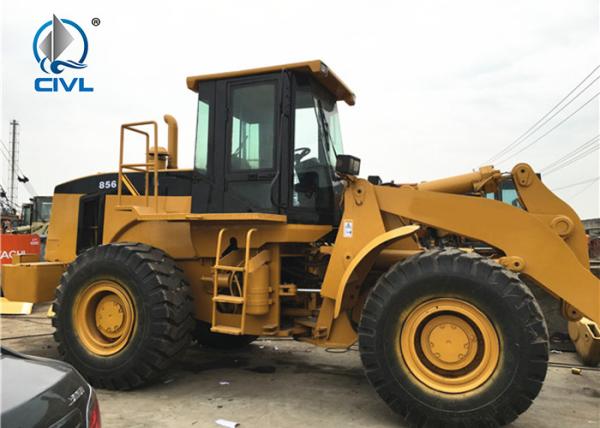

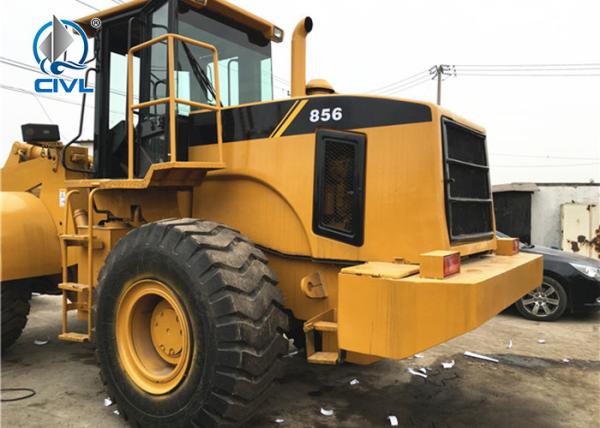

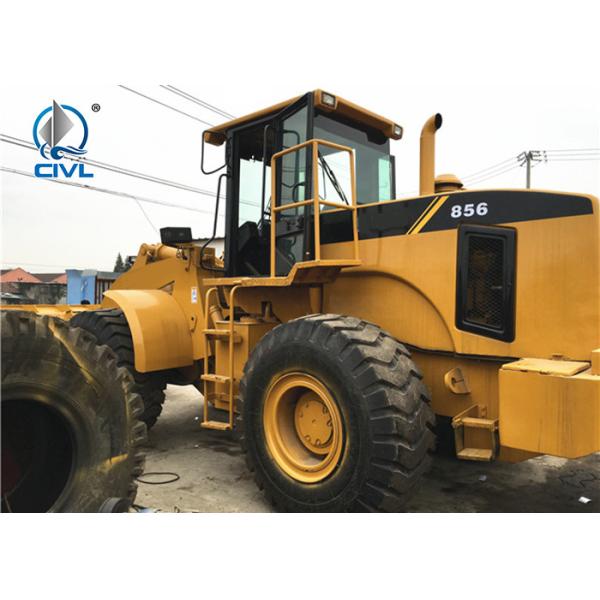

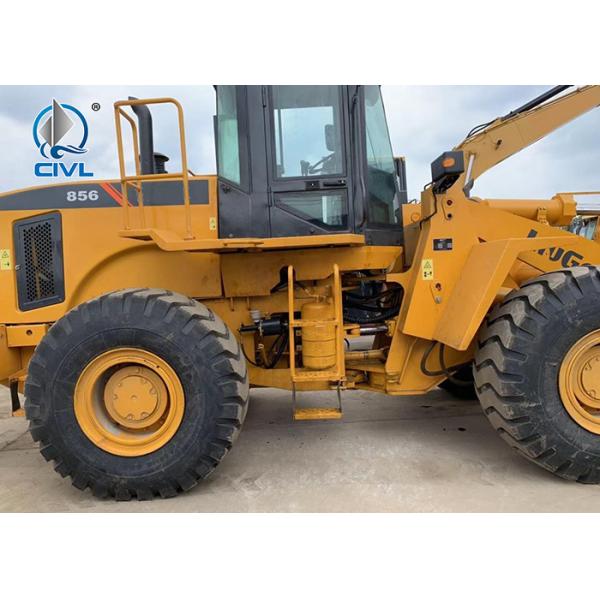

Photos:

CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins EngineCIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins EngineCIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins EngineCIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine

Machine very good condition.
Engine pump good.
Our engineer already inspect machine.good working condition.
About the machine more detial please contract us.
